Doosan D30G - Operator Sensing System Schematic

Vehicle System Testing and Adjusting 50

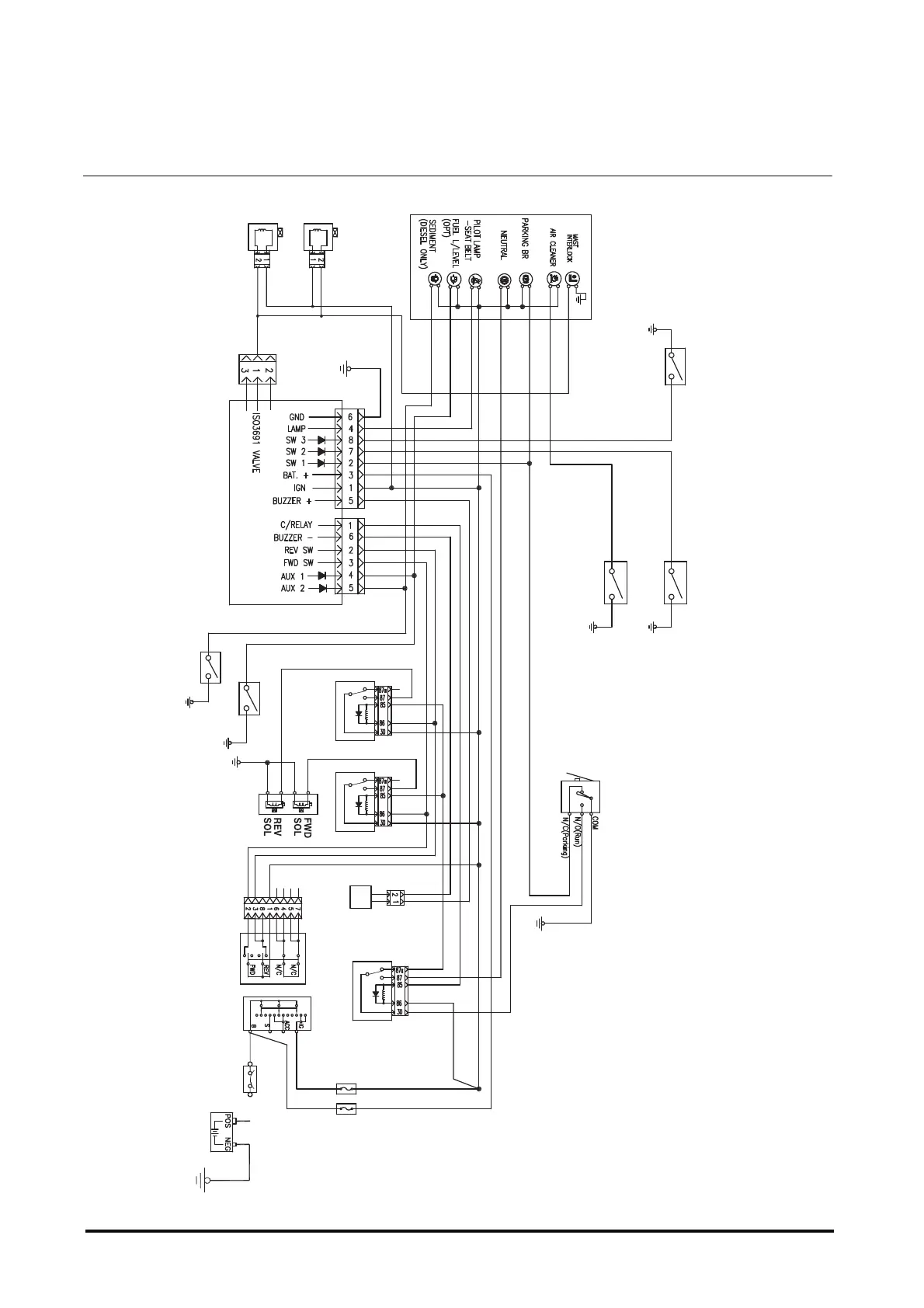

Operator Sensing System Schematic
SOL_VALVE_UNLOAD SOL_VALVE_LIFT LOCK
INDICATOR AS
SEAT BELT SWITCH
SEAT SWITCH
AIR CLEANER SWITCH
FUSE
CIRCUIT BREAKER
IGNITION SWDIR SWITCH
RELAY CREEPING SPEED
PILOT BUZZER
FWD
BATTERY
FUSE
PARKING BRAKE SW
REV
LP PR SW
SEDIMENT SW
CONTROLLER - VCS
