Doosan D30G - Optional Schematic with Hyd. Locking System

Vehicle System System Operation 20
Optional Schematic with hyd. locking system

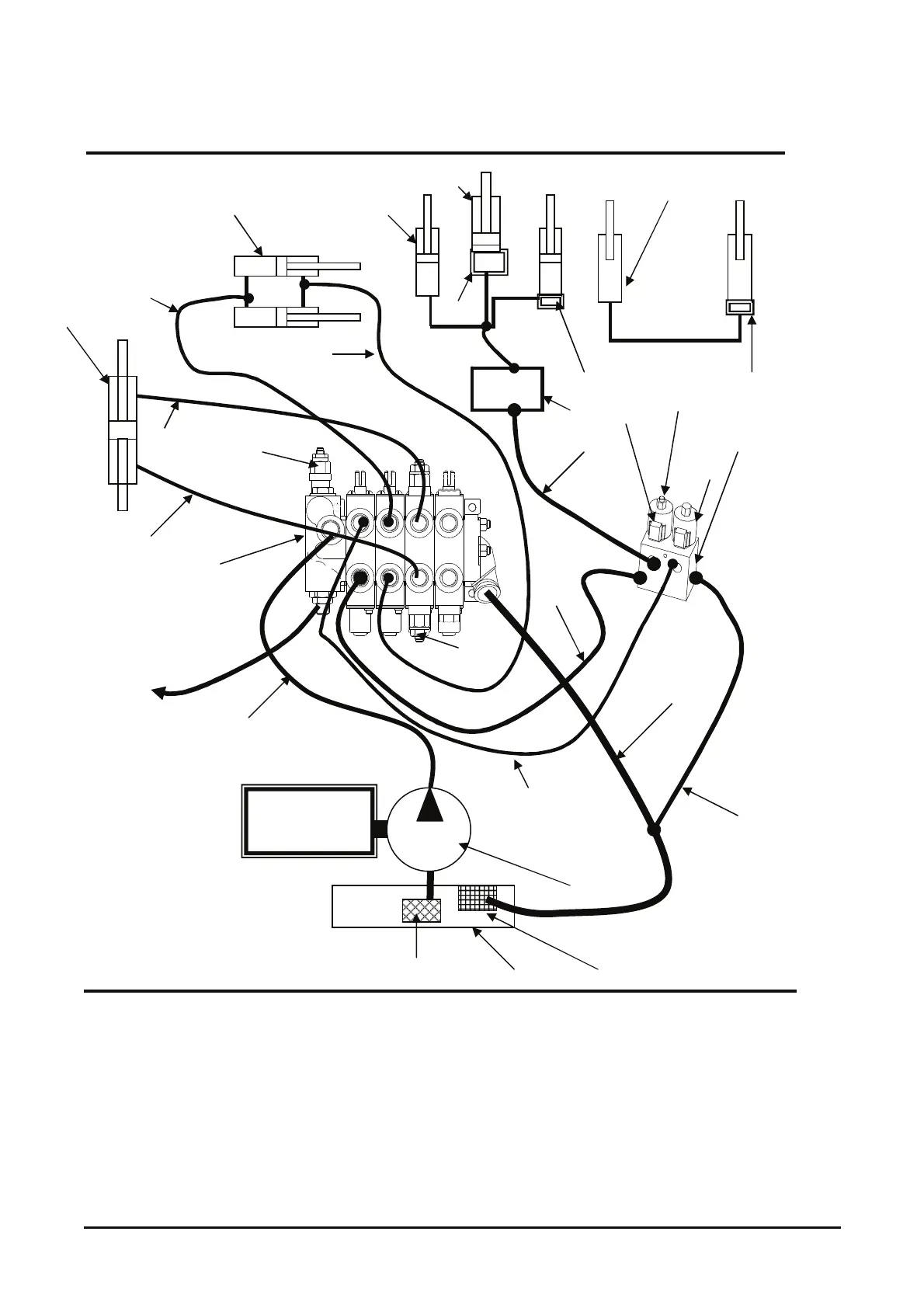

Basic Hydraulic Actuator System Schematic
(1) Lift Cylinder (2) Flow Protector-primary (3) Lift Cylinder-Primary (4) Flow Protector-Secondary (5) Side Shfit Cylinder
(6) Tilt Cylinder (7) Control Valve (8) Hydraulic Line (To Steering Unit) (9) Relief valve-Auxiliary (10) Relief Valve-Main
(11) Gear Pump (12) Suction Filter (13) Return Filter (14) Hydraulic Tank (15)-(24) Hydraulic Line (25) Flow Regulator Valve
(26) Solenoid Block (27) Lift Lock Solenoid (28) Unload Solenoid (29) Emergency Manual Over Ride Valve
FFT mast
12
Engine
1 6
5
3
1
2
4
STD mast
4
7
11
13 14
8
9
10
15
16
18
19
20
21
17
22
23
24
26
27
28
29
25
