Operation Section
-45-

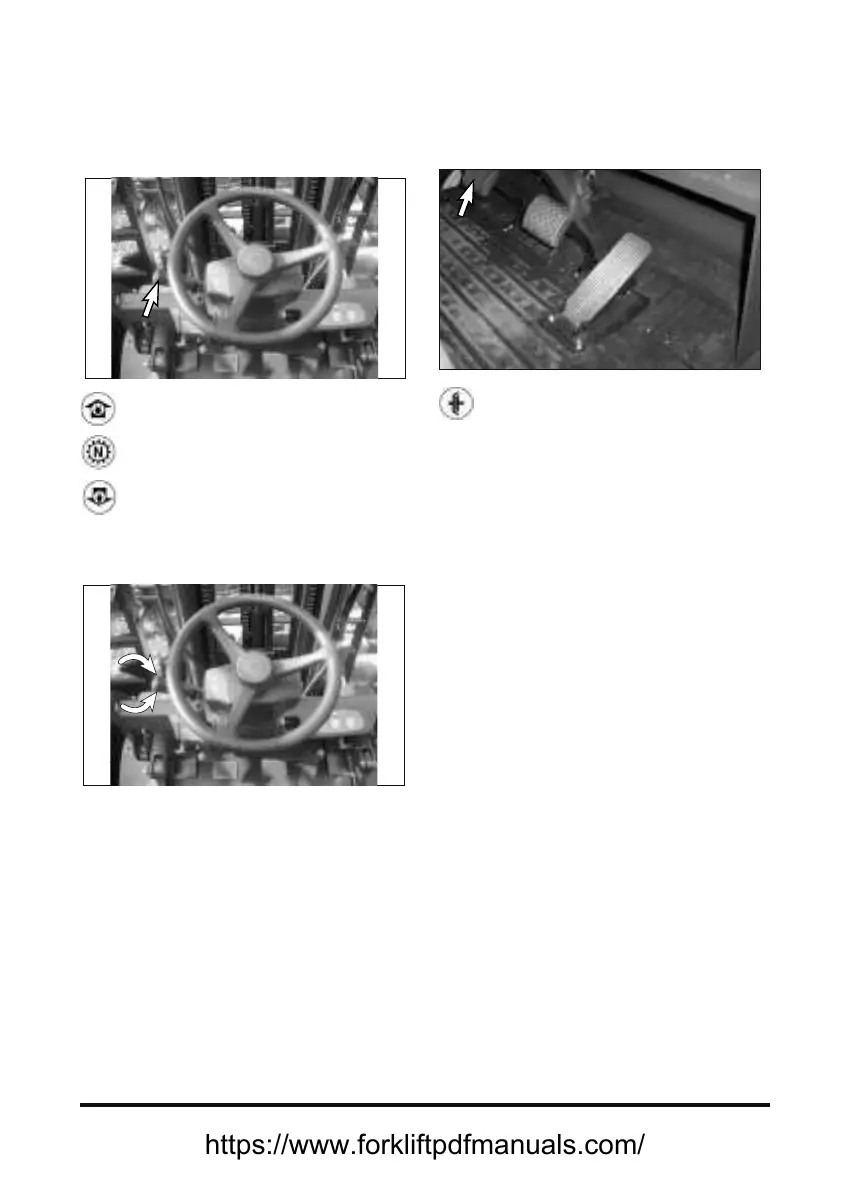

Lift Truck Controls
Direction Control Lever
1. Forward - Push the lever forward for
FORWARD direction travel.
2. Neutral - Move the lever to center position for
NEUTRAL.
3. Reverse - Pull the lever back for REVERSE
direction travel.
Transmission Speed Range Lever
1. High - Rotate the lever counterclockwise for HIGH
speed range.
2. Low - Rotate the lever clockwise for LOW speed
range.
Transmission Inching Control Pedal
Inching Control Pedal - Pushing down on the
inching pedal, modulates the hydraulic pressure
to the clutch packs, permitting disc slippage.
Further pushing on the pedal completely relieves clutch
pack pressure and applies the service brakes to stop
and hold the lift truck.
NOTE: The purpose of the inching control pedal is to
provide precise inching control at slow travel
speed, with high engine rpm. This is used for
fast hydraulic lift during load approach, pickup
or positioning.
