Every 2000 Service Hours or Yearly
You must read and understand the warnings and instructions contained in the Safety section of this manual, before
performing any operation or maintenance procedures.
Steer Wheel Bearings - Reassemble
Park the lift truck level with the forks lowered, parking
brake engaged, transmission in NEUTRAL and the
engine stopped.

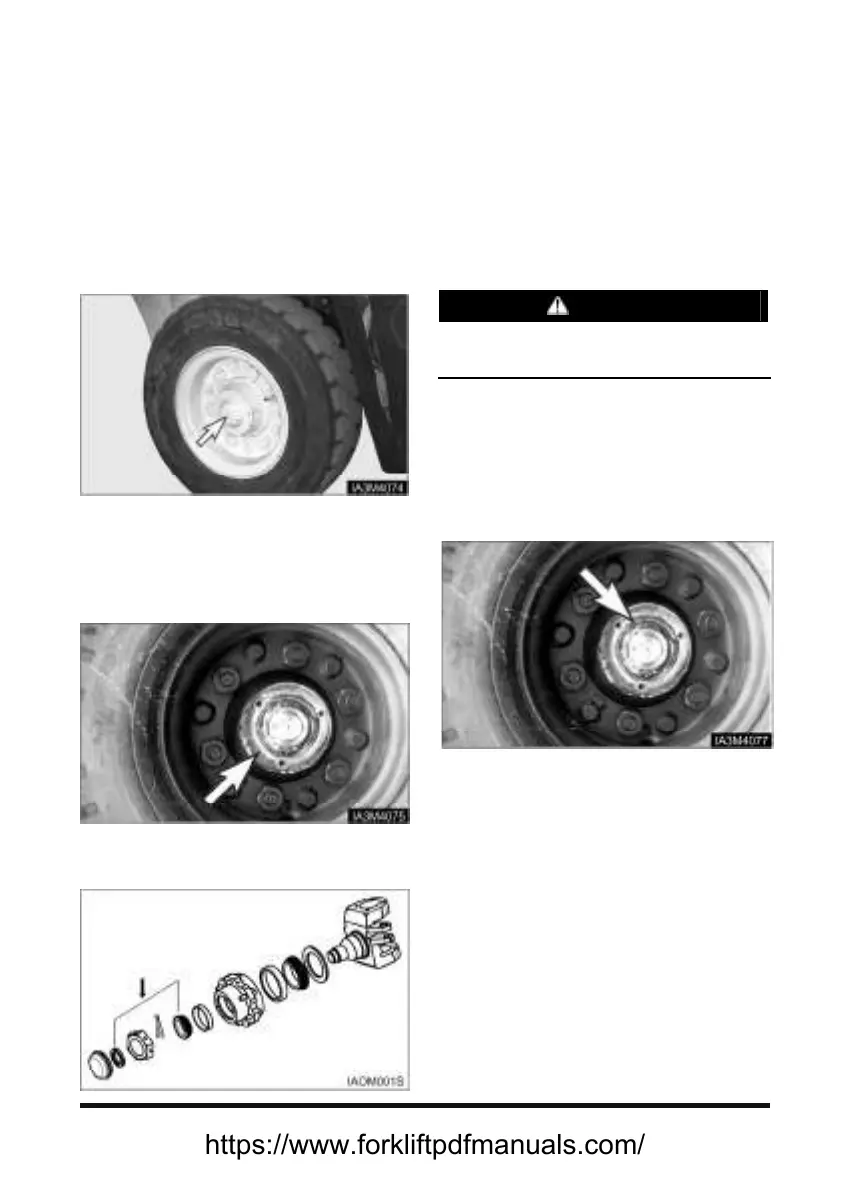

Typical Example
1. Lift the steer wheels off the ground. Place stands or
blocking under the frame and steer axle to support
the lift truck.
2. Remove the hub cap.
Typical Example
3. Remove the cutter pin.
4. Remove the castle nut and washer.
5. Remove the wheel assembly. Examine the seal for
damage and wear. Replace the seal if necessary.
WARNING
Deflate tire before removing wheel nuts at tire
change.
6. Remove the inner bearing. Clean and lubricate the
steering knuckle. Reassemble both the inner and
outer bearing cones.
7. Install the inner bearing. Lubricate the seal and
install the wheel assembly on the knuckle.
8. Install the outer wheel bearing and the outer washer.
Install a new lock washer and fit the locknut.
Typical Example
9. Tighten the locknut to 135 N•m (100 lb•ft), while
turning wheel hub to seat the bearing.
10. Loosen the locknut. Retorque it to 50 ± 5 N•m (37 ±
4 lb•ft). Bend the lockwasher tang to secure locknut.
11. Install the hub cap.
12. Raise the lift truck and remove the blocking Lower
the lift truck to the ground.
