Doosan DB33A - Injection Timing Adjustment

13

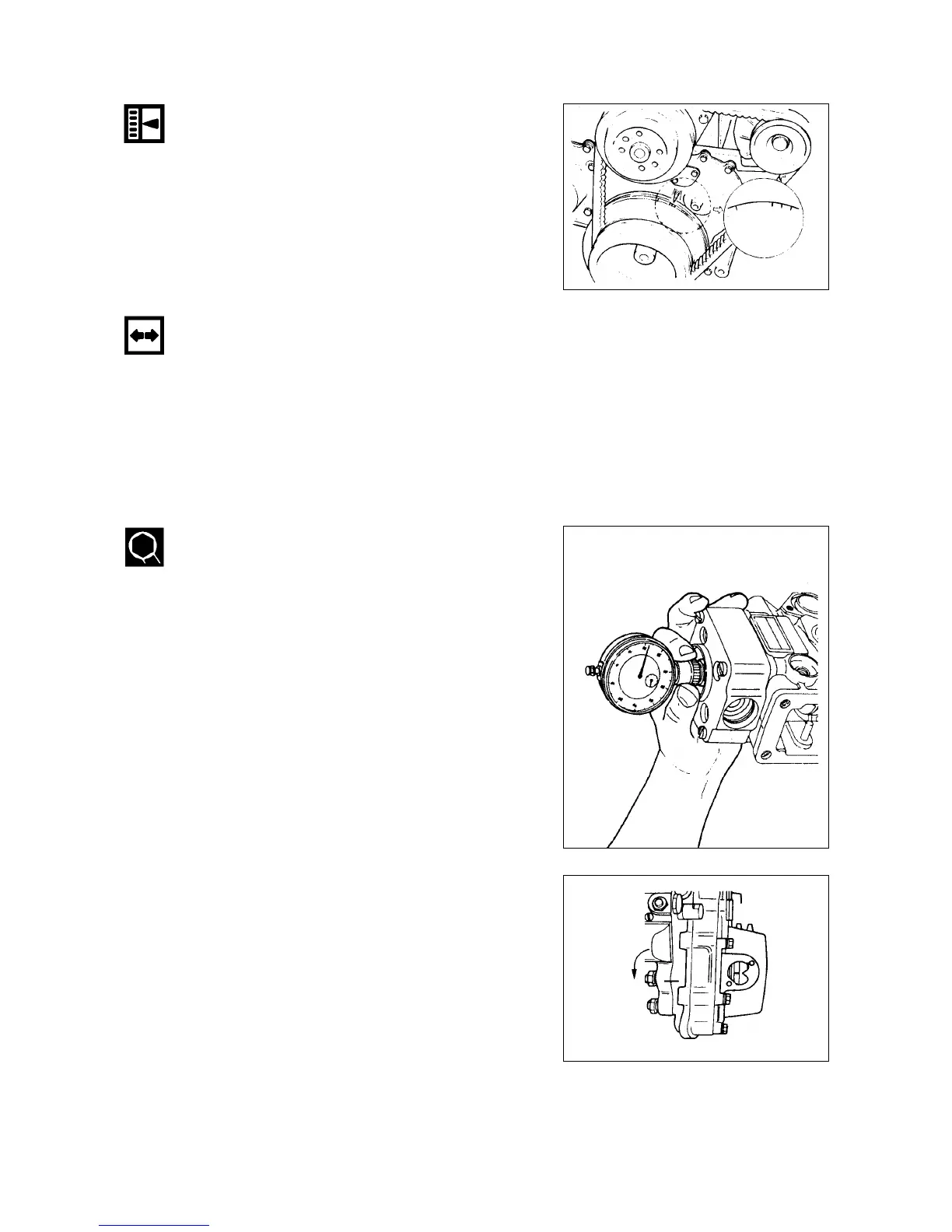

Injection timing adjustment
1. Adjust fuel injection timing with crank pulley
notched line and timing pointer.
Adjust the timing pointer with the marking on the
pulley.
2. Remove 2 fixing bolts of timing flange and injection
pump.
Remove bolt located at the center.
Insert the dial gauge to check the plunger lift.
Disconnect the inj. pipes (4pieces) from I/P
TDC
3.Turn the timing flange to adjust the plunger lift to
0.3mm.
