Doosan DX480LC - Front Idler Roller; Parts List

810 pages

Save Page as PDF

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

SP001741Track Assembly

Page 18

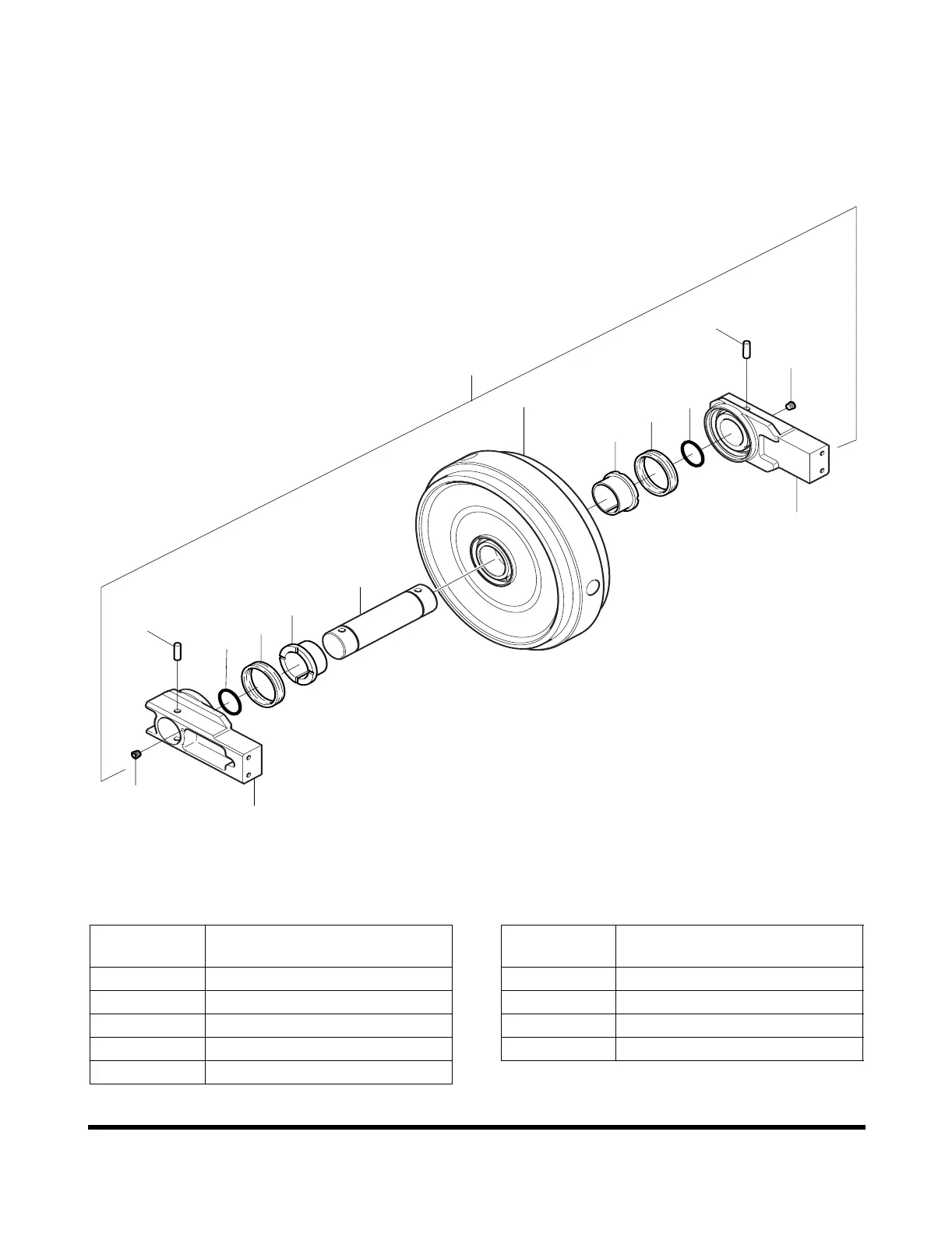

FRONT IDLER ROLLER

Parts List

8

6

5

7

3

FG003913

4

2

1

9

9

4

7

8

3

6

Figure 14

Reference

Number

Description

1 Idler Assembly

2 Idler

3Bearing

4 Shaft

5 Bushing

6Pin

7 Floating Seal

8 O-ring

9Plug

Reference

Number

Description
