Doosan DX480LC - Assembly Diagram and Tools Required

SP001622Solenoid Valve Assembly
Page 10
Assembly Diagram and Tools Required

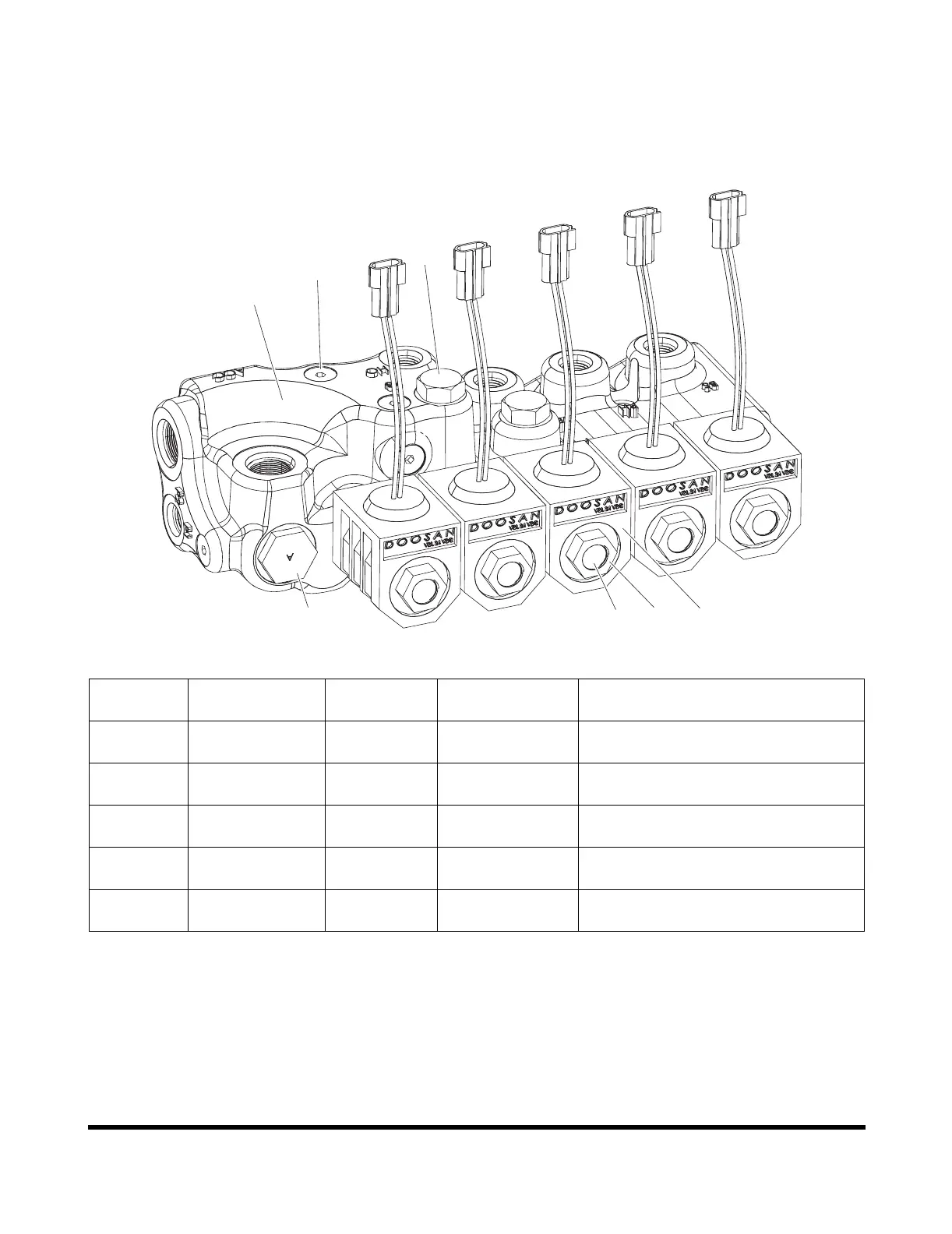

Figure 2, shows assembly torques recommended for
components in the solenoid valve. Designated tools and torques
should be used.
FG013248
1
5
4
322-1
2-2
Figure 2
Reference
Number
Description Sizes Torques (kg•cm) Tools
2 Solenoid Valve UNF7/8 - 14"
200 ± 25 kg•cm
(170 ± 20 in lb)
Hex torque wrench/1," socket
2-1 Coil Locknut UNF1/2 - 20"
60 ± 2 kg•cm
(50±2inlb)
Hex torque wrench/19 mm, socket
3 Check Valve UNF7/8 - 14"
400 ± 2 kg•cm
(350 ± 2 in lb)
Hex torque wrench/1," socket
4 PT 1/4" Plug UNF1/4 - 19"
250 ± 25 kg•cm
(220 ± 20 in lb)
Hex torque wrench/19 mm, socket
5
PT 1/8" Plug Bolt UNF1/8 - 28"
280 kg•cm
(240 in lb)
Hex torque wrench/5 mm, wrench
socket
