Doosan DX480LC - Automatic Travel Speed Control

SP002030Electrical System
Page 72
AUTOMATIC TRAVEL SPEED
CONTROL
E/G
FG000799
66
7
8
44
5
13
15
17 2 19
3

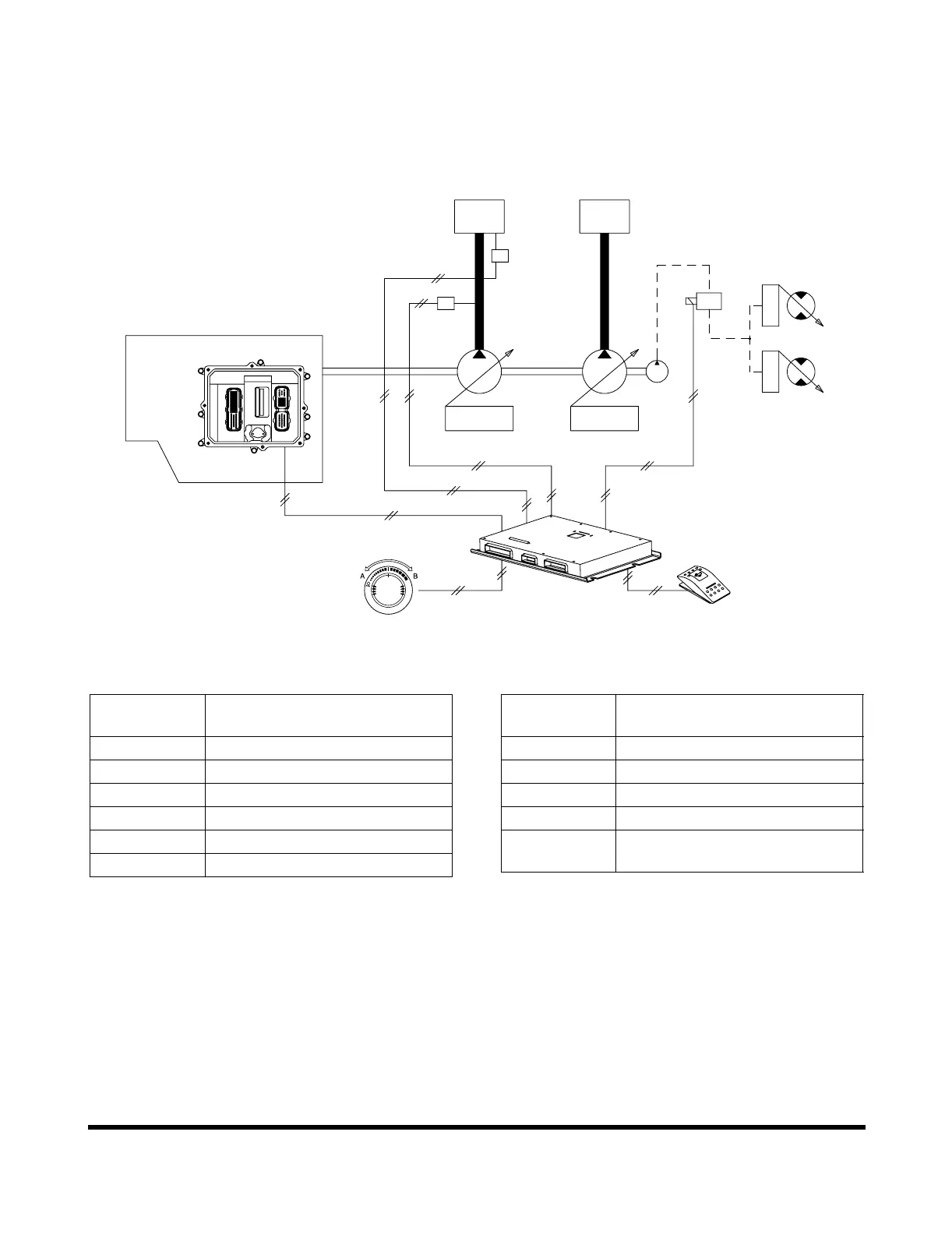

Figure 66
Reference
Number
Description
2 e-EPOS Controller
3 Engine Controller
4 Main Pump
5Aux Pump
6 Control Valve
7 Pressure Switch (Py Port)
8 Pump Pressure Sensor
13 Solenoid Valve (High speed)
15 Travel Motor
17 Engine Control Dial
19
Selector Switch For Automatic
Travel
