SP002029Drive Coupling (Main Pump)
Page 6
DRIVE COUPLING
When installing the main pump on the engine, it is very
important to properly adjust clearance between the face of the
coupling hub and end of pump drive shaft ("Measurement H"
shown in the following procedure) to a specific value.

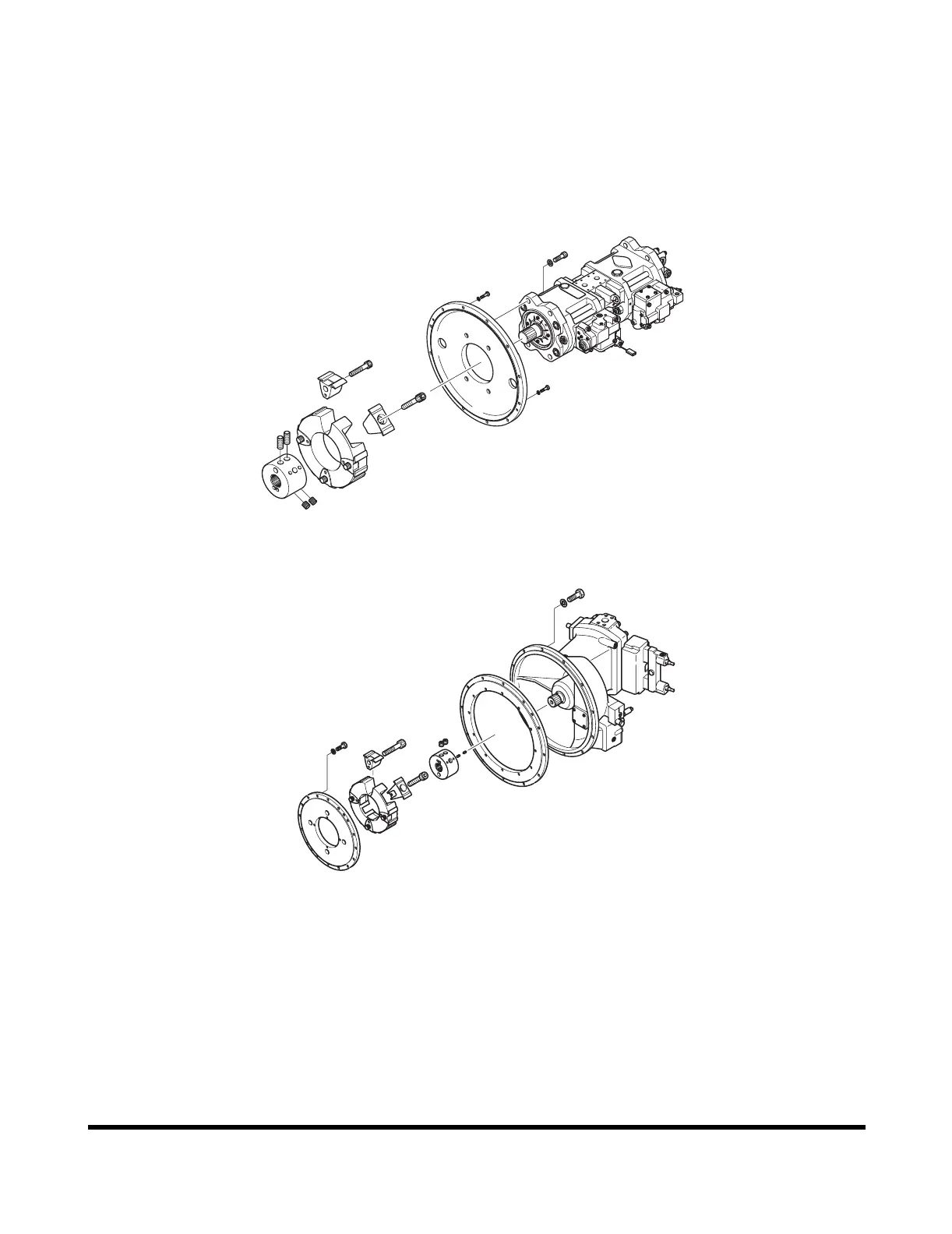

Figure 1 thru Figure 2, show typical drive coupling installations.
ARS1710L
Figure 1
ARS1720L
Figure 2
