SP000031Swing Motor
Page 16
DISASSEMBLY
General Cautions
1. Prepare for a clean place for disassembly. Place a rubber
sheet on place to prevent any damage to parts.
2. Wash out dust and foreign substance in motor and
deceleration assembly.
3. Take care not to damage connecting parts and ways of O-
ring, oil seal, seal surface, gear, pin, and surface of
bearings.
4. Numbers in parentheses indicate those on sectional plans
of motor.
Disassembly

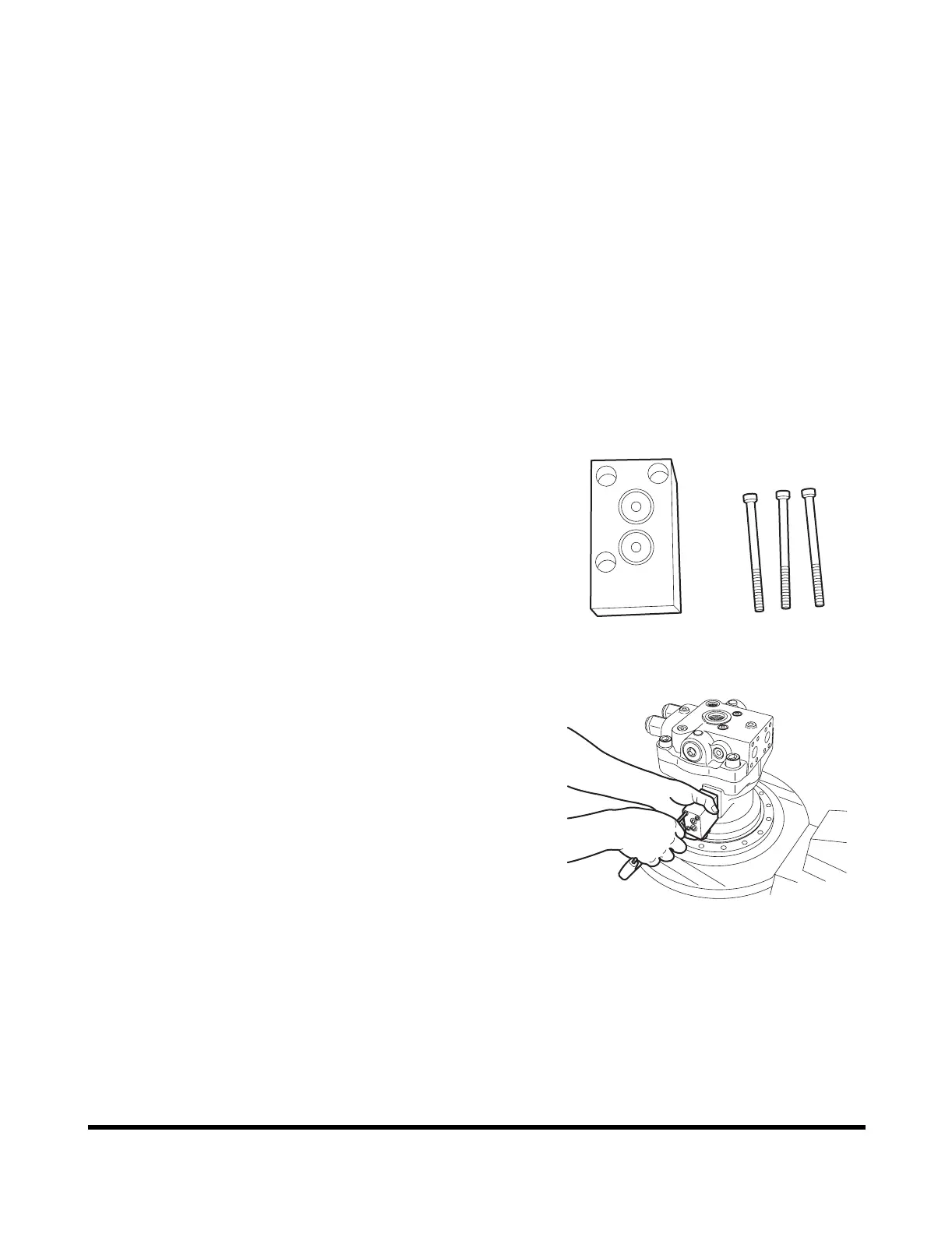

1. Remove hex socket head bolt and disassemble time delay
valve assembly, beginning with rear cover (19).
FG000682
Figure 10
FG000683
Figure 11
To Next Page
