Travel Motor
4. Insert oil seal (491) in shaft casing (272) using jig. Make
sure it is properly seated.
Assembly of Motor Body
1. Connect 5 plugs (461) to shaft casing (303) according to a
specified torque.
NOTE: Wrap sealing tape around plug, or spread
Loctite before starting assembly.
NOTE: Connection torque: 70 - 110 kg•cm (5. - 8 ft lb).
2. Insert pins (452 and 709) using hammer or a round bar.
NOTE: Two pins (452: Adjust their height to be 10 mm
(0.39 in) above swash plate support surface.
NOTE: Four pins (709): Adjust their height to be 19 mm
(0.75 in) above machined shaft casing surface.

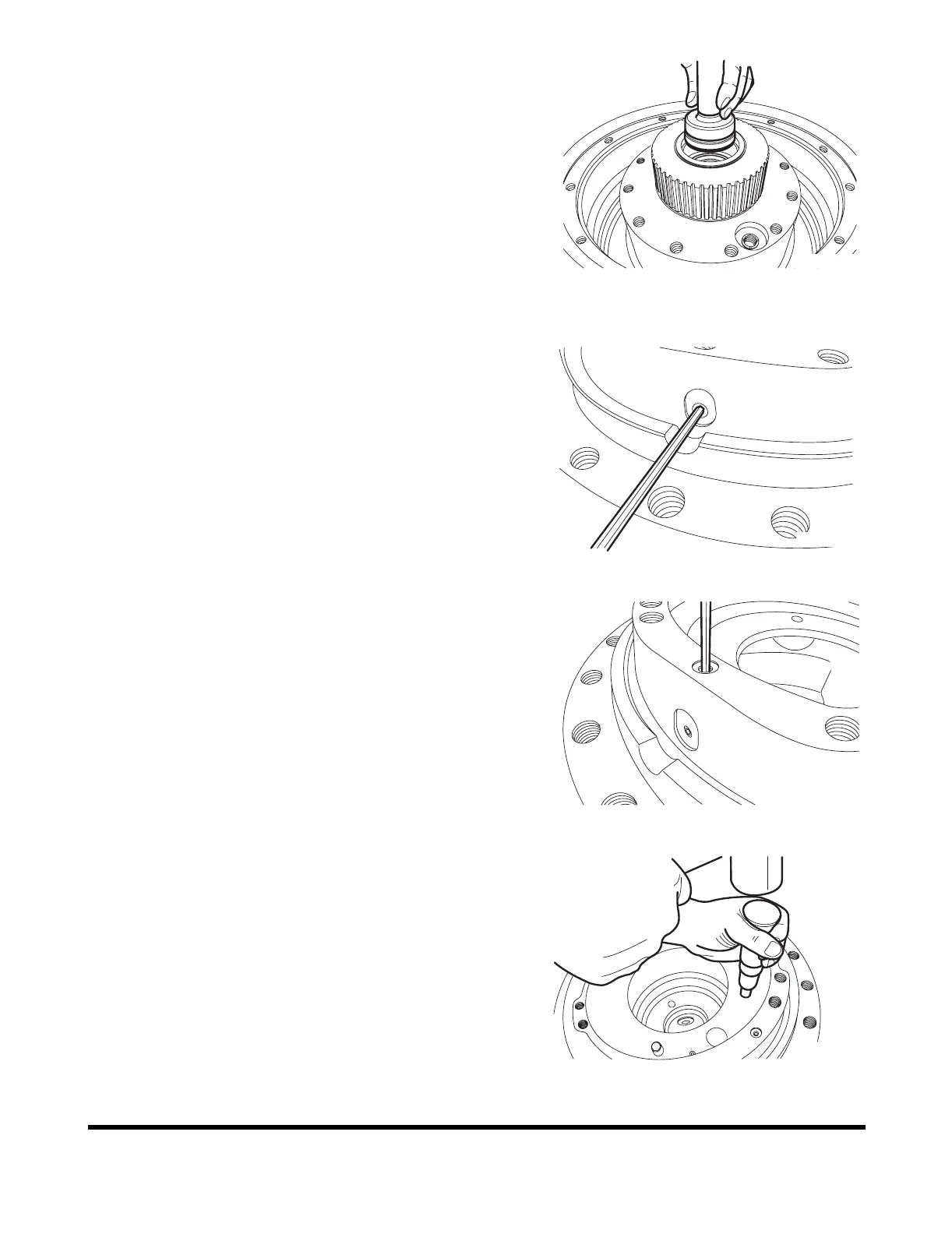

FG001153
Figure 70
FG001154
Figure 71
FG001155
Figure 72
FG001156
Figure 73
