SP002026Specification for DX300LCA
Page 22
The lowest part of the bucket linkage should be 0.3 - 0.5 m (1' -
2') off the ground.
Mark off a 20 m (65' 7-1/2") test distance, with a 3 - 5 m (10' -
15') run-up area, and a 3 - 5 m (10' - 15', or longer) speed run-off
distance.
Travel the excavator back and forth to be sure steering is
centered and side frames are parallel with the test course.
Operate both travel levers at the fully engaged position and
measure the time it takes to cross 20 m (65' 7-1/2"). Compare
measured results against the standard for new machines:
Rotate the turntable 180°. Both tests should be repeated three
times. Average all results to obtain a final value.

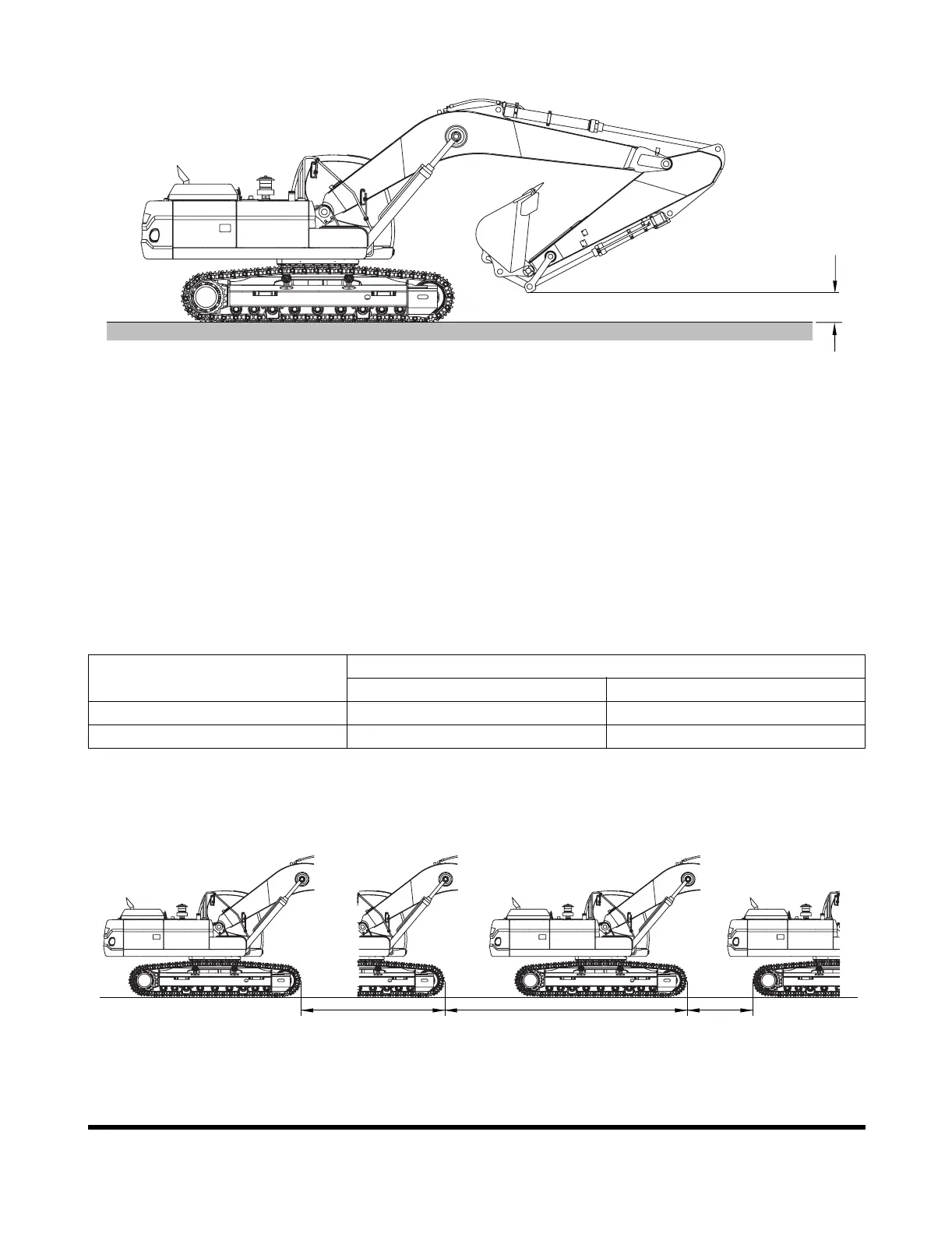

0.3 M - 0.5 M (1' - 2')
FG000466
Figure 4
Rate of Travel
Time
Standard Mode Power Mode
High Speed 15.5 ± 1.0 sec 14.3 ± 1.0 sec
Low Speed 25.5 ± 1.5 sec 24.2 ± 1.5 sec
3M - 5M
(10' - 15')
3M - 5M
(10' - 15')
20M
(65' 7-1/2'')
FG000467
Figure 5
