Dorma PORTEO - Teach-in Mounting and Arm Version; Teach-in Door Width

DORMA PORTEO
WN 057472 45532 02/08
Extended commissioning

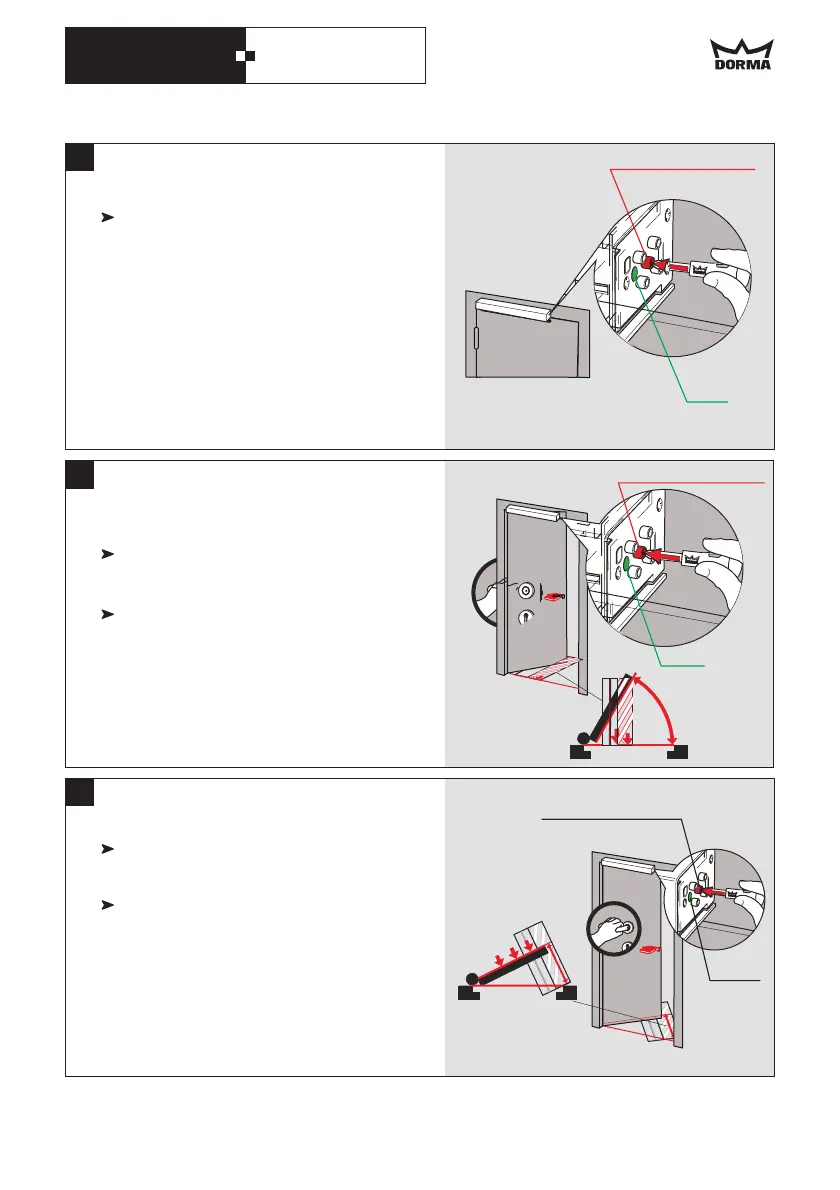

- Open the door by approximately 420 mm
(420 mm angle template is enclosed).
The LED (green) blinks.
- Press service key once.
The LED (green) emits a permanent light for
3 sec. then it blinks.
.
Teaching-in the door width:
During this procedure the control unit
determines and stores the door width
4
5
6
- Press service key, until
the door starts moving (approx. 3 sec.).
The LED (green) emits a permanent light for
3 sec., then it blinks
The door travels to position.
Determination of swing direction:
During this procedure the control unit
determines and stores the swing direction of
the door.
"closed"
- Open door by approximately 60°.
(60° angle template is enclosed).
The LED (green) blinks.
- Press service key once.
The LED (green) emits a permanent light for
3 sec. then it blinks.
Teaching-in the way of mounting and arm
version:
During this procedure the control unit
determines and stores the way of mounting
and the arm version.
Service pushbutton
Service pushbutton
60°
LED
LED
420mm
Service pushbutton
LED
GB 18
