DORMA PORTEO
WN 057472 45532 02/08

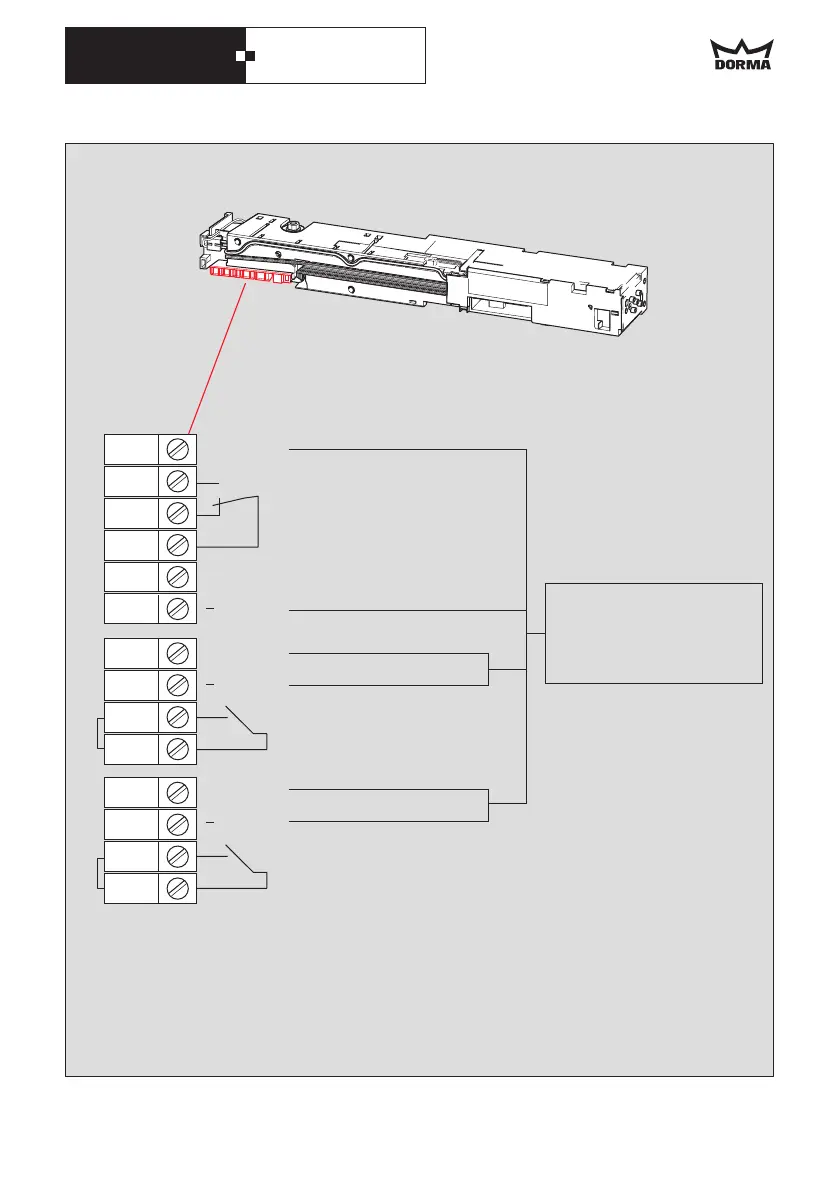

Connection diagram for connection unit
+24VDC
0VDC
Not assigned
+24VDC
0VDC
+24VDC
0VDC
Activator (e.g. hand-held transmitter,
radar sensor)
Activator (e.g. hand-held transmitter,
radar sensor)
Electromechanical locking device
potential-free changeover contact
:
Power supply for
external accessories
e.g. locking device
24 V DC max. 300 mA
1U
3
42
3
1U
3
42
3
1U
64
63
62
CN
3
Start
Start
GB 24
