Dorma PORTEO - Accessories Overview; Mounting Plates and Brackets; Glass Door Clamping Rail

DORMA PORTEO
WN 057472 45532 02/08
Accessories

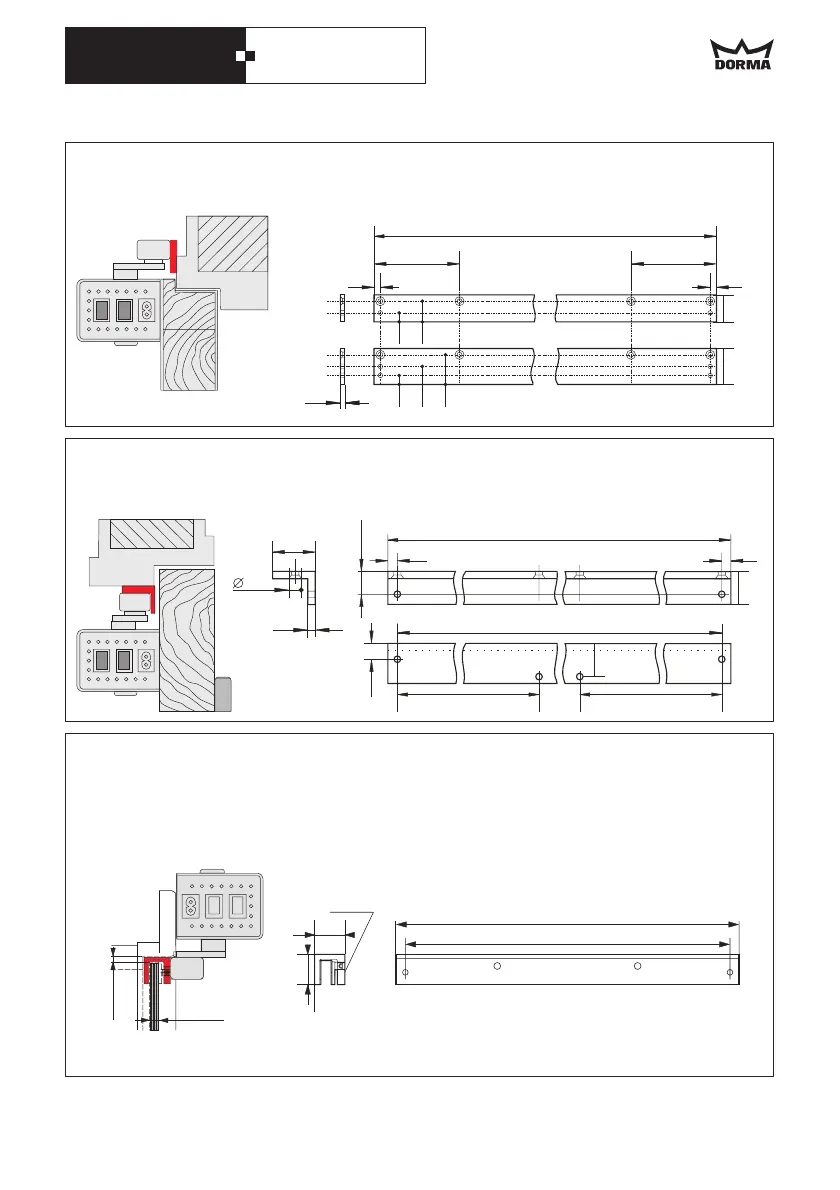

Angle bracket
For installation of slide channel on opposite hinge side (push side) when
it comes to door frames with deep lintel. Safety sensors (optional).
Mounting plates, 30 mm and 40 mm
For mounting of slide channel at door frames that are not suitable for direct mounting.
5
40
30
10
77
95
95
20
10
23
33
530
Glass door clamping rail
In order to fix the slide channel to all-glass doors no processing of the glass is required.
Only for lintel mounting on hinge side.
530
77
172 172
25
4
15
32
25
5,5
516
17,5
8-10
min.5
24
27
SW 3
530
516
GB 27
