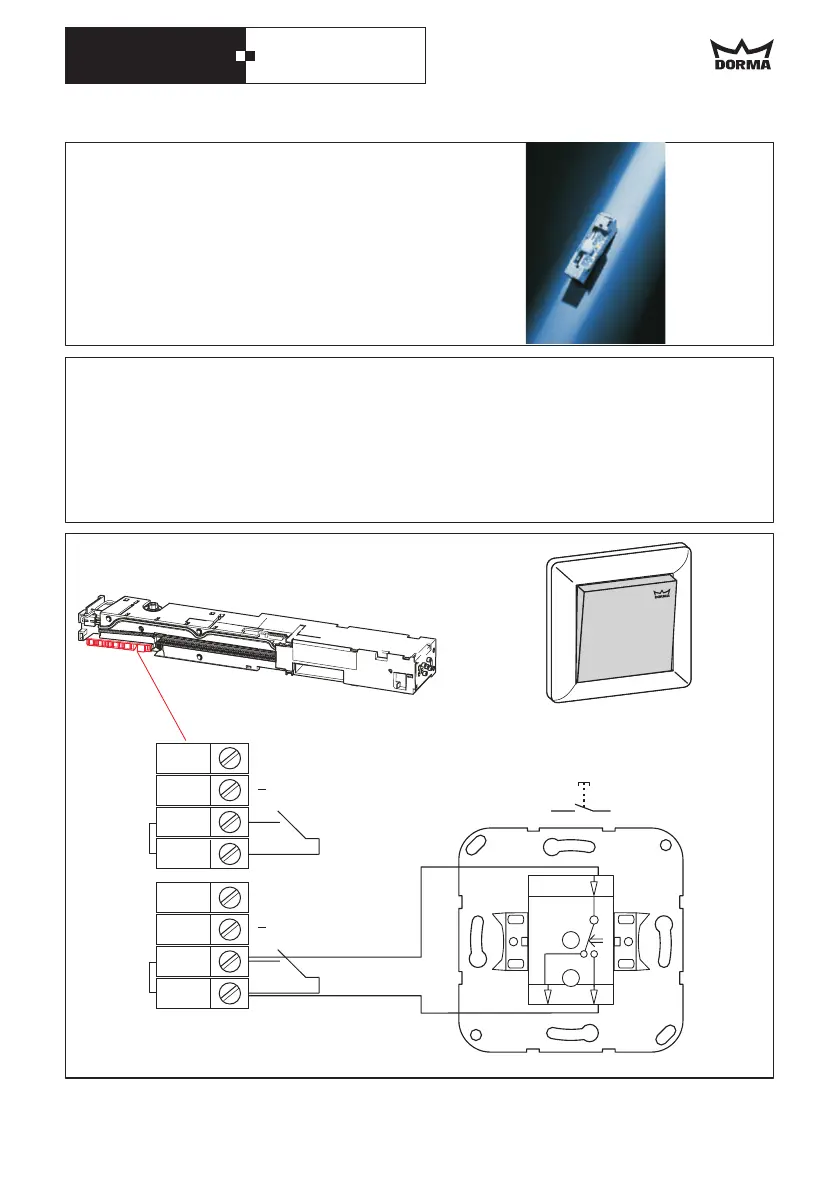

Dorma PORTEO - Electric Strike and Safety Sensors; Manual Release Switch

DORMA PORTEO
WN 057472 45532 02/08
Accessories
Electric strike - Type Basic
Standard fail-secure electric strike of symmetrical design
with adjustable latch, non-handed, suitable for over-
rebated and flush-closing doors (any position), including
free-wheeling diode supplied loose for the DC versions.
See enclosed installation instructions for installation and
electrical connections.
Safety sensors (optional)
DORMA IRS-3
PORTEO door assistant
DORMA Comfort Board
Please contact your DORMA specialist dealer for further information.
When the risk assessment reveals that the application of contactless safety devices is
required, the swing range of the door has to be protected by moving active infrared
sensors.
In this case the has to be equipped with another connection unit, the
.
+24VDC
0VDC
+24VDC
0VDC
1U
3
42
3
1U
3
42
Start Start
NO
Manual release switch DORMA system 55 (option)
3
L
12
