Dorma PORTEO - Direct Power Supply Installation

DORMA PORTEO
WN 057472 45532 02/08
179050
4
10
20
22
54
20
230 / 110 VAC
112112
10
20
22
54
20
230 / 110 VAC
112112
179050
3
1
2

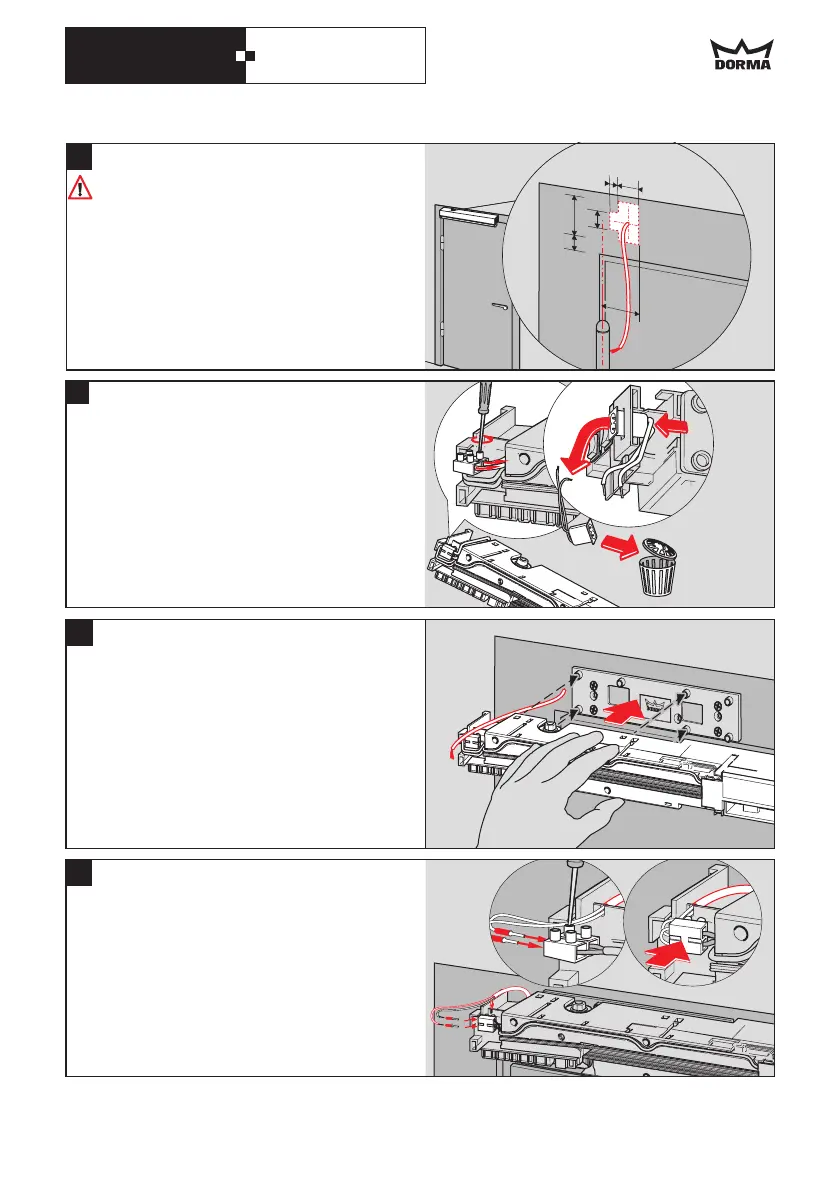

Before installation
This connection version may only be performed
by a properly qualified company.
Disconnect system from power supply
(remove fuse).
The drawing shows a left-handed installation.
The right-handed installation is laterally
reversed.
Power supply
The power cord must come out of the wall in
the position indicated on the picture
(installation of cord by others).
Unscrew the cables of the power cord before
starting with the installation.
Install PORTEO.
Put the cable into the intended "slot" during
the installation.
Fit connection bayonets.
Protect the cables with the aid of silicone
tubes.
Screw down cables.
Direct power supply, straight out of the wall
GB 26
