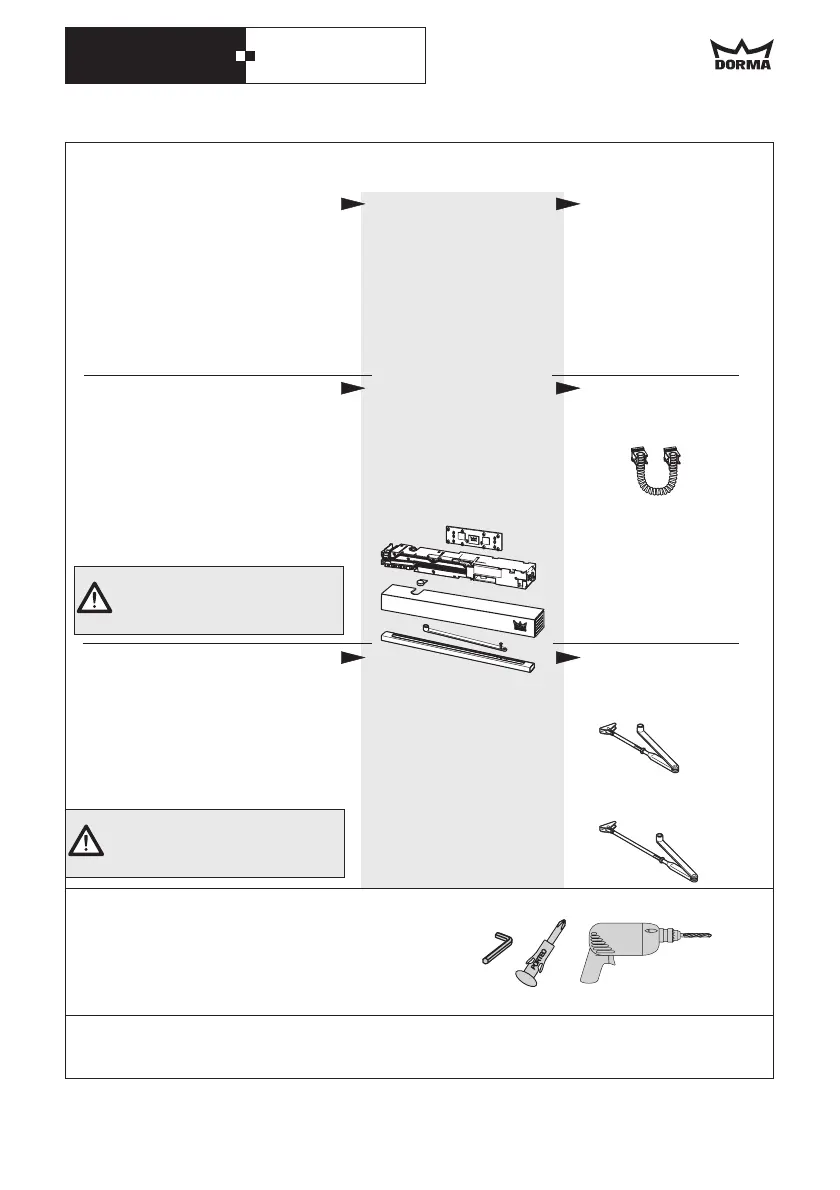

Status on delivery and assistance when it comes to selecting appropriate accessories
Required accessories for the respective way of mounting
Cable loop -option
Art.-No. 60041401
Obligatory accessories
Lintel depths from
30 to 90 mm
Projecting arm
Lintel depths from
90 to 200 mm
none
179050
Standard
Lintel mounting
Door-leaf mounting:
Option Lintel mounting with
projecting arm.
:
- (pull-side),
left-handed version
on the hinge side
- on the hinge side (pull-side),
right-handed version
- on opposite hinge side (push-side),
left-handed version
- on opposite hinge side (push-side),
right-handed version
- on the hinge side (pull-side),
left-handed version
- on the hinge side (pull-side),
right-handed version
- on the opposite hinge side (push-side),
left-handed version
- on the opposite hinge side (push-side),
right-handed version
When it comes to door-leaf
mounting, the power cord has to
be protected from crushing.
- on the opposite hinge side (push-side),
left-handed version
- on the opposite hinge side (push-side),
right-handed version
On application of the projecting
arm, the slide channel is no
longer required.
Compulsory for lintel depths
beyond 30 mm:
Authorised DORMA specialist dealers offer competent advice and the required accessories for the
PORTEO door assistant.
Required tools for the installation of the PORTEO door assistant
Drill bit, depending on surface
- Allen key
, 5 mm (Scope of delivery)
- Potentiometer-tool (Scope of delivery)
- Power drill
-
