Assembly Instruction Mounting ED UPS
060675 45532/17224 - 07/2023 ED UPS 7
4 Mounting ED UPS
NOTICE
Damage to property due to incorrectly laid cables
Lay all cables so that they do not collide with moving parts!
NOTICE
Damage to property due to SPV mode at double-leaf units
Double-leaf units with an A01 battery must not be operated in SPV mode.
• dormakaba offers item 29263023 for the operation of a two-leaf unit with A01
battery.

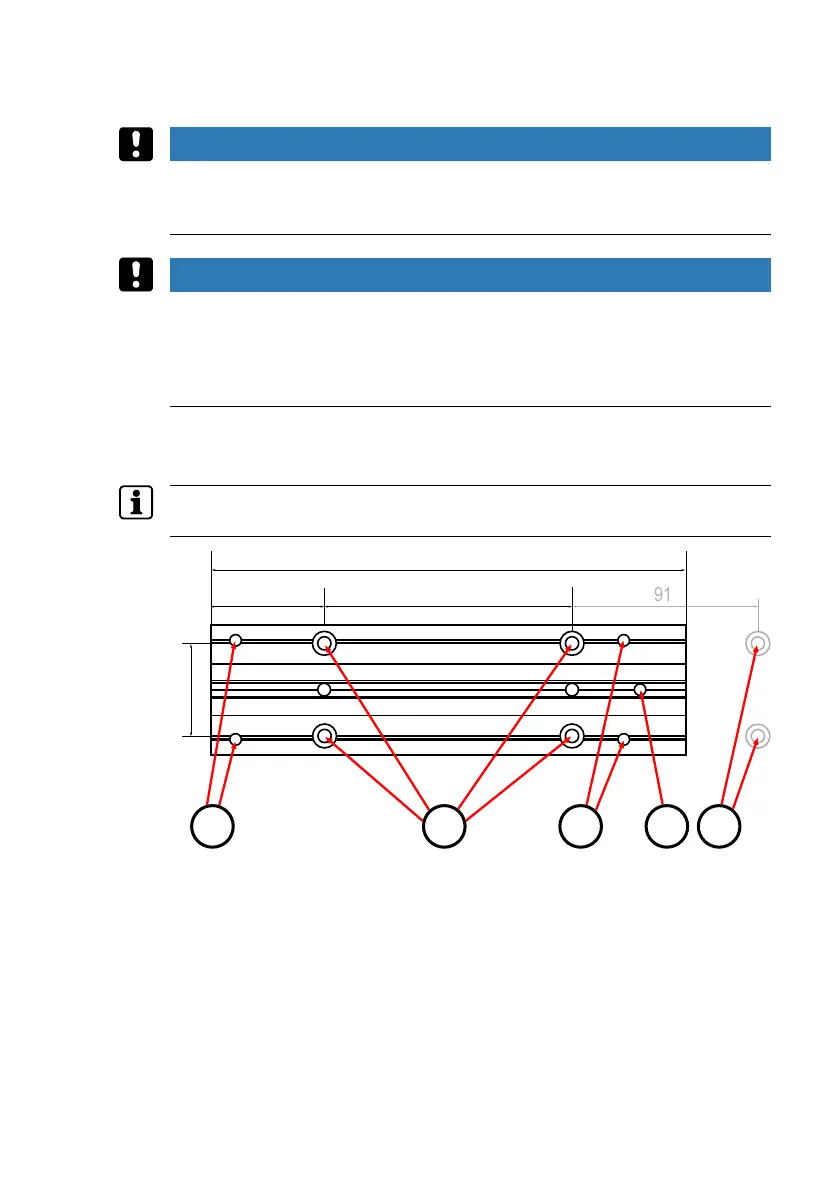

Screw-on points of the ED UPS mounting plate
The mounting plate for the ED UPS must always be aligned in such a way that the
screw-on point of the connecting lug points in the direction of ED100/250.
91120
230
55
45
A B C D E
A Screw-on points of outer Vario bracket
B ED UPS's screw-on points on the wall
C Screw-on points of inner Vario bracket
D Screw-on point of the connecting lug
E Screw-on points of the ED100/250 mounting plate
