dormakaba ED100/ED250 Service Manual Chapter 8

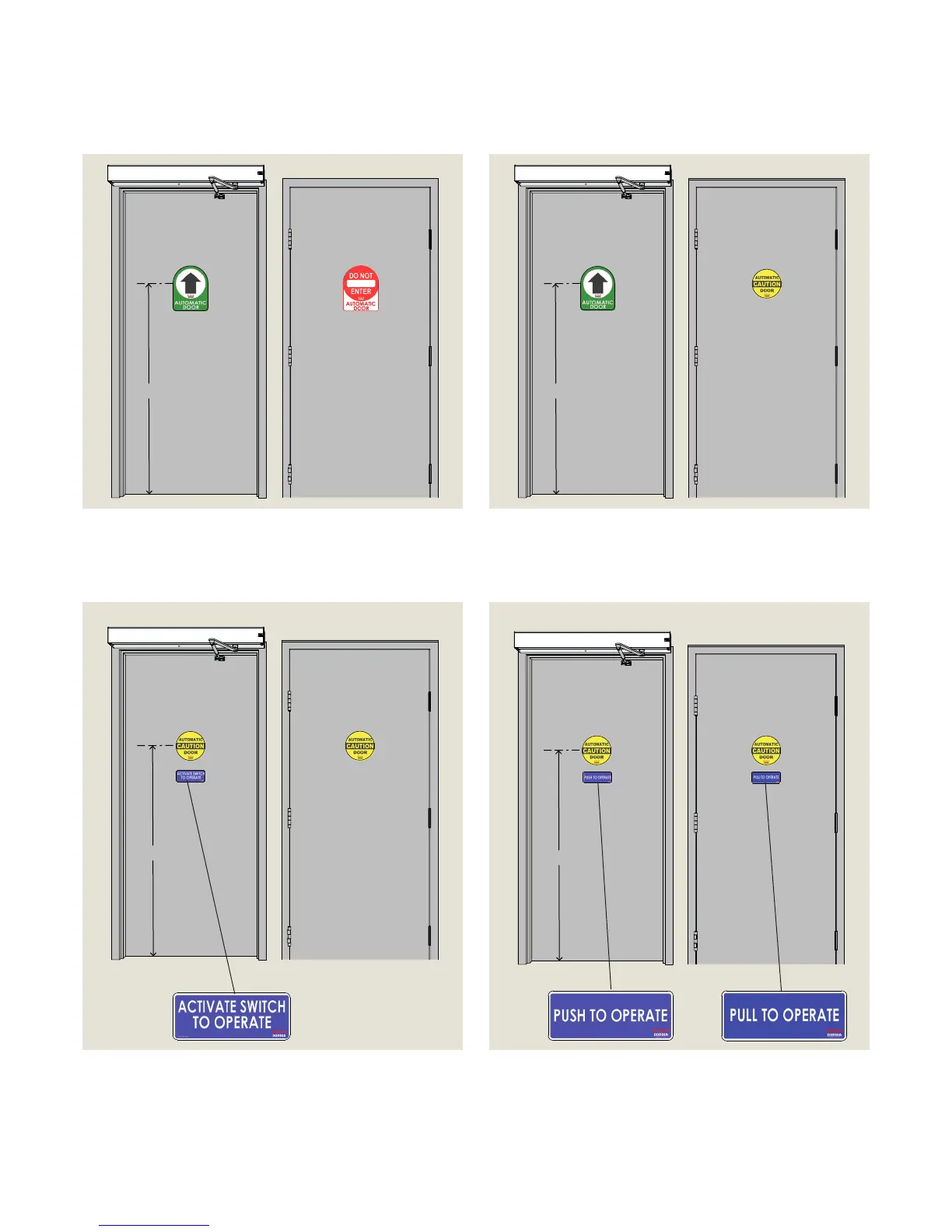

Fig. 8.4.1 Low energy decals, knowing act device
initiation of door operation
Fig. 8.4.2 Low energy decals, push/pull initiation of door
operation
Fig. 8.3.1 Full energy decals, one way traffic
Fig. 8.3.2 Full energy decals, two way traffic
. Door signage, full energy single swing door
Approach Non-approach
DD0739-020
50” ± 12”
50” ± 12”
50” ± 12”
50” ± 12”
. Door signage, low energy single swing door
"Activate Switch to Operate" sign located on side (s) of
door where switch is located.

Dormakaba ED100 Specifications

General

Type	Universal
Purpose	Interior door
Product color	Gray
Hand orientation	-
Maximum door width	- mm
Maximum door weight	- kg
Placement supported	Overhead concealed door closer
Suitable for door type	Single-leaf door
Power source type	DC

Weight and Dimensions

Width	1422 mm
