dormakaba ED100/ED250 Service Manual Chapter 6
. Program switch panel

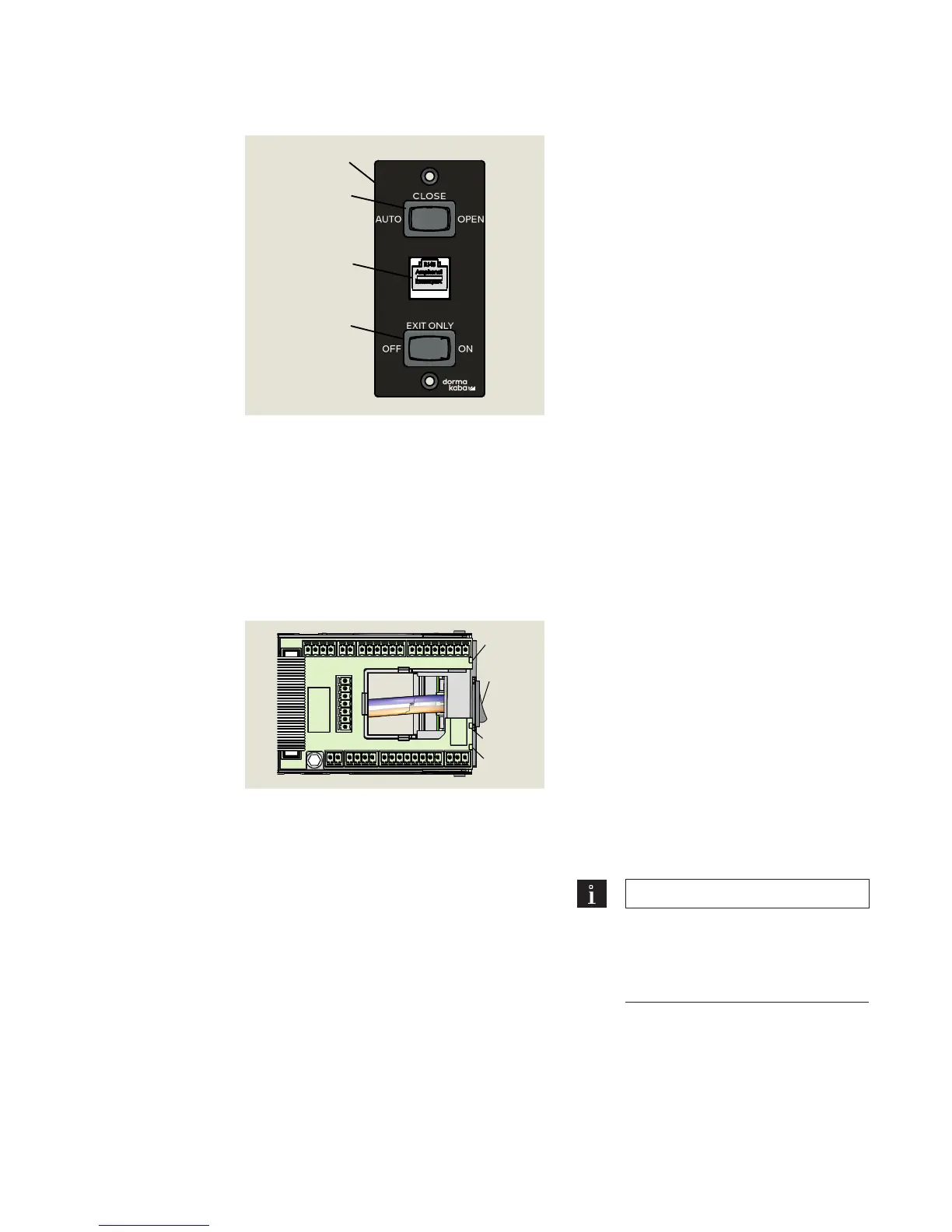

Fig. 6.3.1 Program switch panel
.. Program switch door control modes
. Auto
Door opens automatically when one of
the activators (Chapter ) is actuated or
triggered, and closes on expiration of
adjustable hold open time.
. Close
Door closes automatically, or remains
closed until program switch position
changed.
. Open
Door opens automatically and remains
open until program switch position
changed.
.. Exit only switch modes
. Off
Internal and external activation sensors
both active.
. On
External activation sensor disabled when
door fully closed. Only internal activation
sensor will enable door opening.
6.4 Operator status LEDs
Fig. 6.4.1 Operator status LEDs
.. Operator status LEDs
Header cover must be opened to view LEDs.
. Red LED
Blinking codes are used to indicate "ln__"
information (system status or operating
conditions) or certain error codes "E__".
. Yellow LED
Maintenance interval indicator. When
illuminated, an indication the operator
system has to be serviced.
. Green LED
• On, internal  Vdc power is On.
• Off, internal  Vdc power is Off.
TIPS AND RECOMMENDATIONS
Details on LED status codes and
maintenance intervals can be found
in Chapter 16, Troubleshooting.
1 Red LED
2 Yellow LED
3 Green LED
4 Power switch
1
1.1
1.2
1.2
1 Program switch
panel
2 Program switch,
3 position
3 Exit Only switch,
2 position
4 Comm port for
dormakaba
handheld
1
2
3
4
