Dormakaba ED100 Service Manual

5
ED100/ED250 02-2018DL4614-050
dormakaba ED100/ED250 Service Manual Chapter 4

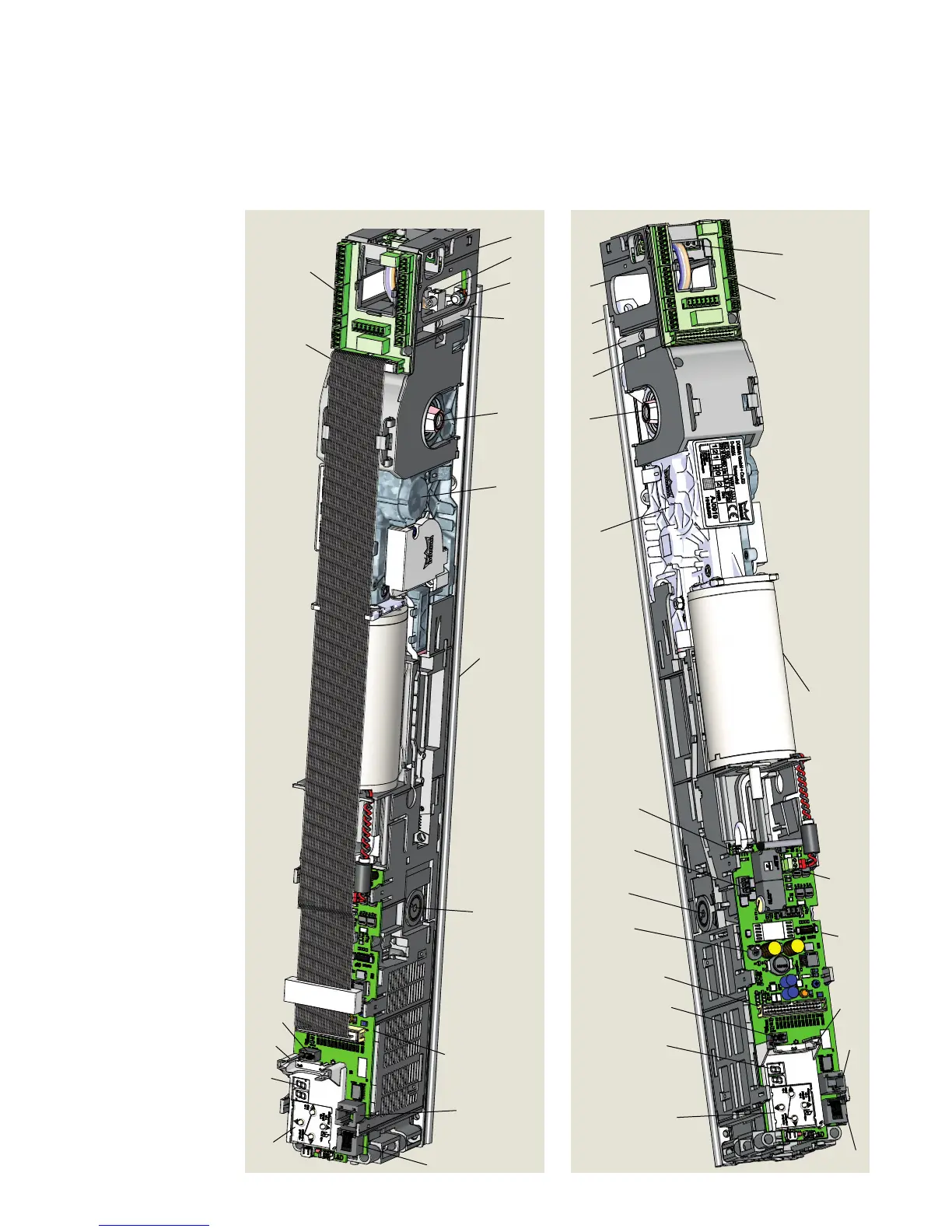

Fig. 4.1.7 ED100/ED250 components view 1 Fig. 4.1.8 ED100/ED250 components view 2
 ED/ED
1
19
2
4
5
6
17
8
9
14
15
16
18
20
3
21
23
27
2
3
18
20
4
5
24
21
22
6
12
11
9
8
16
15
14
23
25
26
27
17
1 Power switch
2 120 Vac terminals
3 Housing unit
4 Drive axle connection
5 Operator (motor,
gear, spring
6 Spring tension
adjustment, closing
force
8 4 button user
interface
9 Information display
10 Slot for internal
program switches
11 Potentiometer,
power fail closing
speed
12 Terminal jumper
socket, push or pull
mounting
14 Slot for upgrade cards
15 RJ45 socket for
communication cable
between two operators,
double door system
16 Com 1 service
connector
17 Accessories terminal
board
18 Mounting plate
19 Customer ground
terminal
20 Guide pin
21 Ribbon cable
22 Ribbon cable socket
23 Upgrade card socket
24 Motor
25 Encoder socket and
cable
26 Motor socket and
cable
. Operator component view

Dormakaba ED100 Specifications

General

Type	Universal
Purpose	Interior door
Product color	Gray
Hand orientation	-
Maximum door width	- mm
Maximum door weight	- kg
Placement supported	Overhead concealed door closer
Suitable for door type	Single-leaf door
Power source type	DC

Weight and Dimensions

Width	1422 mm
