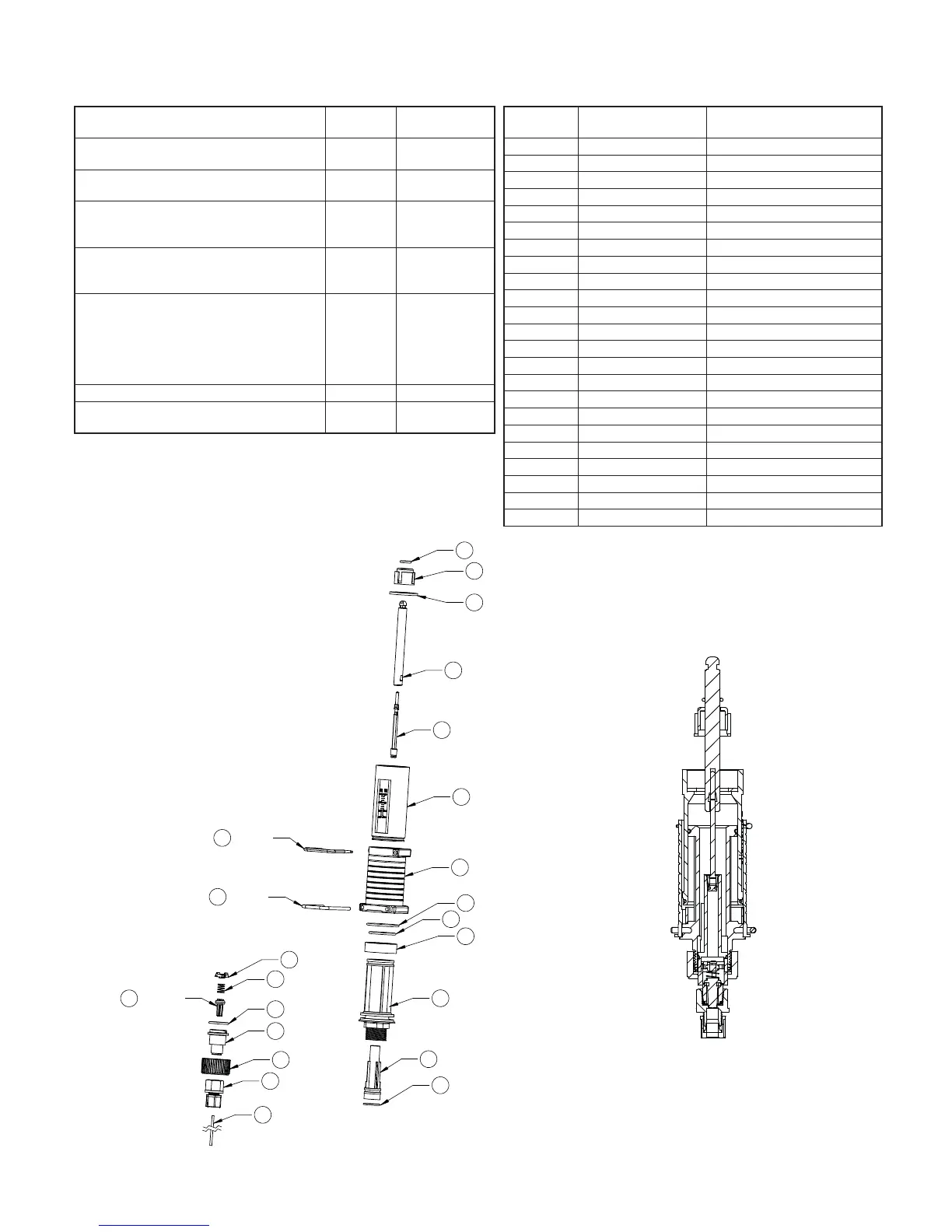

Dosmatic Superdos 30 - Lower End & Wear Parts Kits 0.3% PAA (Rotating)

English: 14
Manual
Reference
Part # Description of Part
7 194408 Cylinder, inner
10 194418H Spring
11 011452 Suction tube fi tting
12 212120X O-ring
13 011453F Check poppet
15 194004 Seal retainer, O-ring
16 010016S Lower end gasket
17 212005K O-ring
25 010029 Suction tube, 1/4” ID x 5ft
27 005230 Compression fi tting
51 011803K Lower shaft assembly
52 194007 Upper shaft
61 194406P Ratio adjustment sleeve
63 212516X O-ring, inner cylinder
64 212017X O-ring, inner cylinder, lower end
65 194310D Interlock pin
66 212025V O-ring, outer cylinder, lower end
67 194611 Cylinder, outer
68 194030 Cylinder, inner for #7
71 194414 Nut, suction tube fi tting
78 194620 Lower end stop
79 194410SS Retainer clip, bottom
80 194415 Twistlock
79
194410
16
010016
17
212005K
15
194004
61
194406
78
194620
7
194408
68
194030
63
212516X
64
212017X
52
194007
65
194310
66
212025V
67
194611
51
011803K
13
011453F
71
194414
80
194415
10
194418
11
011452
12
212120X
27
005230
25
010029
Lower End
Assembly
Kit A – Wear Parts Kit (dosage piston/shaft
assy, O-ring)
012310K 17, 51
Kit C – Wear Parts Kit (Kit A, inner cylinder,
O-ring)
012311RK 17, 51, 63, 68
Kit D – Suction Tube Fitting Assy (Check
poppet, O-ring, spring, fi tting, twistlock)
011463RK 10, 11, 12, 13,
80
Kit E – Wear Parts Kit (Kits C & D, gasket) 012312RK 10, 11, 12, 13,
16, 17, 51, 63,
68, 80
Kit F – Lower End Cylinder Kit (inner & outer
cylinder, ratio adjuster, O-rings, pins, gasket,
lower end stop)
012313RK 7, 16, 61, 63,
64, 65, 66, 67,
68, 78,79
Kit G - Complete Lower End w/ compression
fi tting & suction tube
012314RK 7, 10, 11, 12, 13,
15, 16, 17, 25,
27, 51, 52, 61,
63, 64, 65, 66,
67, 68, 71, 78,
79, 80
Kit H – Motor Piston Assy 011863 9, 21
Kit M – Mounting Bracket Kit (mounting
bracket, 4 hex caps & nuts) See Pg. 6
011432 56, 57, 58
Lower end & wear parts kits 0.3% PAA (Rotating):
