Dosmatic Superdos 30 - Lower End & Wear Parts Kits 2.5% WSP

English
English: 17

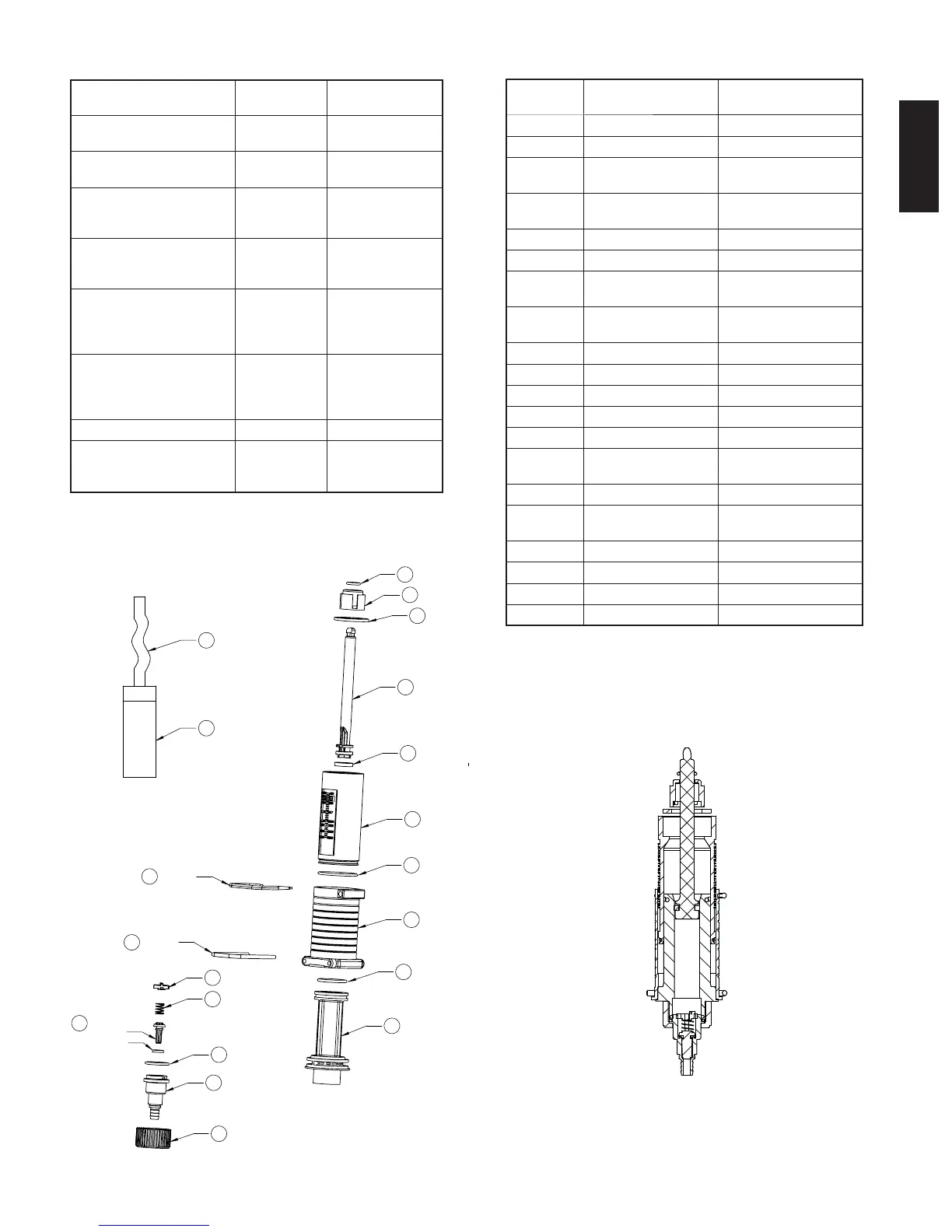

Lower end & wear parts kits 2.5% WSP:
25
011015
27
011026
16
010016
15
194004
17
212005
51
194019
44
194022
67
194407P
66
212025
64
212027
7
194023
61
194406
65
194310
79
194410
13
011453A
194416
80
194415
10
194418
12
212120
11
194412
194414
71
194413
Kit A – Wear Parts Kit
(dosage gasket and O-ring)
011850WSP 17, 44
Kit B – Wear Parts Kit (Kit A,
& shaft)
011945WSP 17, 44, 51
Kit C – Wear Parts Kit (Kit A,
inner cylinder and O-ring)
011850CWSP 7, 17, 44, 64
Kit D – Suction Tube Fitting
Assy (poppet, O-ring, spring,
fi tting, twistlock)
011461V 10, 11, 12,13, 80
Kit E – Wear Parts Kit (Kits C
& D, shaft, gasket)
011831WSP 7, 10, 11, 12, 13,
16, 17, 44, 51,
64, 80
Kit F – Lower End Cylinder
Kit (inner & outer cylinder,
ratio adjuster, O-rings, pins,
gasket)
011961WSP 7, 16, 61, 64, 65,
66, 67, 79
Kit G - Complete Lower End
w/fi lter & suction tube
011841WSP 7, 10, 11, 12, 13,
15, 16, 17, 25, 27,
44, 51, 61, 64, 65,
66, 67, 71, 79, 80
Kit H – Motor Piston Assy 011863 9, 21
Kit M – Mounting Bracket
Kit (mounting bracket, 4 hex
caps & nuts) See Pg. 6
011432 56, 57, 58
Lower End
Assembly
Manual
Reference
Part # Description of Part
7 194023 Cylinder, inner
10 194418H Spring
11 194412 Fitting, suction tube,
3/8”
12 212120
*Must specify material
O-ring
13 011453A Check poppet
15 194004 Seal retainer, O-ring
16 010016
*Must specify material
Lower end gasket
17 212005
*Must specify material
O-ring
25 011015 Suction tube, 3/8” x 5’
27 011026 Filter, for suction tube
44 194022 Dosage gasket
51 194019 Shaft
61 194406P Ratio adjustment sleeve
64 212027
*Must specify material
O-ring, inner cylinder,
lower end
65 194310D Interlock pin
66 212025
*Must specify material
O-ring, outer cylinder,
lower end
67 194407P Cylinder, outer
71 194414 Nut, suction tube fi tting
79 194410SS Retainer clip, bottom
80 194415 Twistlock
