Lower end & wear parts kits 0.3% (Rotating):
Kit A – Wear Parts Kit (shaft assy, O-ring) 012310 17, 51
Kit C – Wear Parts Kit (Kit A, inner cylinder,
O-ring)
012311R 17, 51, 63, 68
Kit D – Suction Tube Fitting Assy (check
poppet, O-ring, spring, fi tting, twistlock)
011463V 10, 11, 12, 13,
80
Kit E – Wear Parts Kit (Kits C & D, gasket) 012312R 10, 11, 12, 13,
16, 17, 51, 63,
68, 80
Kit F – Lower End Cylinder Kit (inner & outer
cylinder, ratio adjuster, O-rings, pins, gasket,
lower end stop)
012313R 7, 16, 61, 63,
64, 65, 66, 67,
68, 78,79
Kit G - Complete Lower End w/fi lter & suction
tube
012314R 7, 10, 11, 12,
13, 15, 16, 17,
25, 27, 51, 52,
61, 63, 64, 65,
66, 67, 68, 71,
78, 79, 80
Kit H – Motor Piston Assy 011863 9, 21
Kit M – Mounting Bracket Kit (mounting
bracket, 4 hex caps & nuts) See Pg. 6
011432 56, 57, 58
79
194410
52
194007
17
212005
15
194004
16
010016
51
011803
66
212025
67
194611
61
194406
64
212017
7
194408
68
194030
63
212516
65
194310
78
194620
27
003067
25
010025
11
194417
80
194415
10
194418
12
212120
71
194414
13
011453A
5
16

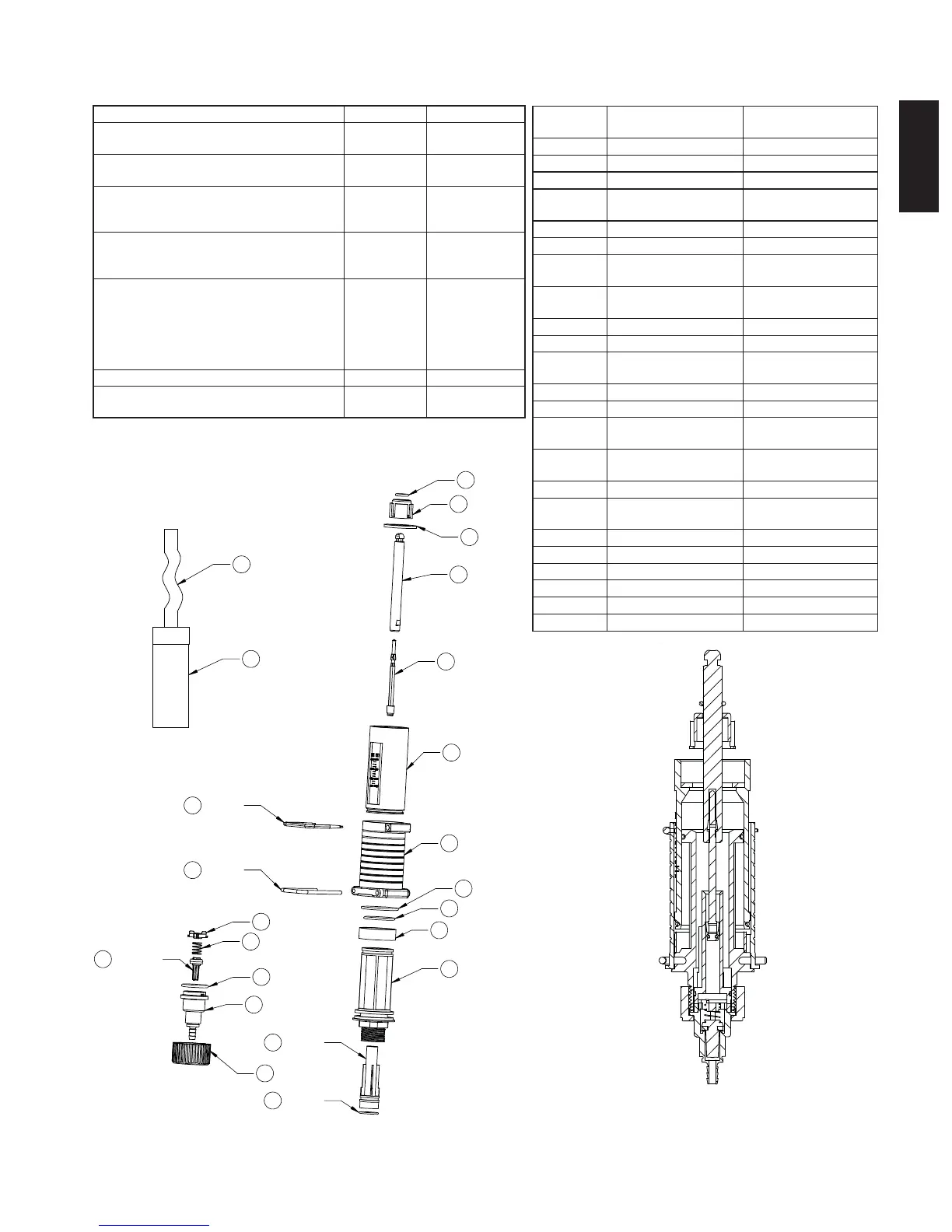

Lower End
Assembly
Manual
Reference
Part # Description of Part
7 194408 Cylinder, inner
10 194418H Spring
11 194417 Fitting, suction tube, ¼”
12 212120
*Must specify material
O-ring
13 011453A Check poppet
15 194004 Seal retainer, O-ring
16 010016
*Must specify material
Lower end gasket
17 212005
*Must specify material
O-ring
25 010025 Suction tube, ¼” x 5’
27 003067 Foot valve ¼” ID
51 011803
*Must specify material
Lower shaft assembly
52 194007 Upper shaft
61 194406P Ratio adjustment sleeve
63 212516
*Must specify material
O-ring, inner cylinder
(#68)
64 212017
*Must specify material
O-ring, inner cylinder,
lower end
65 194310D Interlock pin
66 212025
*Must specify material
O-ring, outer cylinder,
lower end
67 194611 Cylinder, outer
68 194030 Cylinder, inner for #7
71 194414 Nut, suction tube fi tting
78 194620 Lower end stop
79 194410SS Retainer clip, bottom
80 194415 Twistlock
