Dosmatic Superdos 30 - Package Contents; Specifications

English: 6
Specifi cations

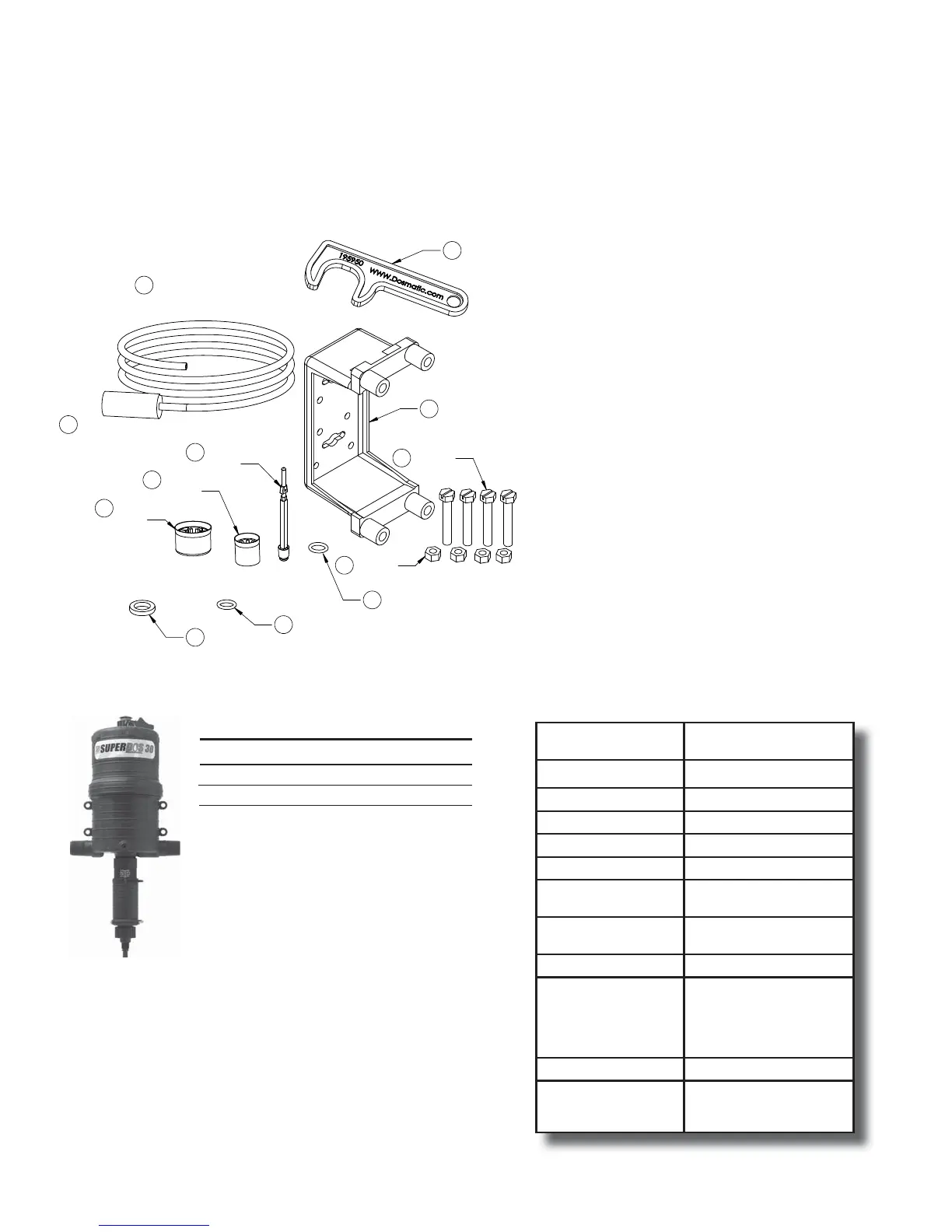

Package Contents
194022
2.5% WSP
56
194006
57
194016
58
194017
212005VH (black)
17
44
2.5%
010044
194309
5%
25
0.3% 010025
2.5% 011015
5% 011025
44
5% 011018
27
0.3% 003067
2.5% 011026
14
on the 2.5% & 5%
212005V (brown)
51
0.3%
011803
44
95
195950
Injector (not shown) Mounting Bracket
Dosage Piston Mounting Nuts and Bolts
O-ring Filter
Manual (not shown) Suction Tube
The injector is packaged
with the following items:
SuperDos 30 gpm
(
100 max. psi
)
Model 0.3% 0.025% - 0.3% (1:4000 -1:333)
Model 2.5% 0.2% - 2.5% (1:500 -1:40)
Model 5%*
0.4% - 5% (1:250 -1:20)
Flow Rate:
0.15 - 30 gpm** (0,56 - 114 l/mn)
Operating Pressure: 5 - 100 psi (0,34 - 6,9 bar)
Pipe Coupling: 1” NPT/BSP
*5% model with remote injection kit has maximum
operating pressure of 60 psi (4 bar) and maximum
fl ow rate of 20 gpm.
Housing Proprietary Engineered
Composite Material
Dosing Accuracy +/- 10% of ratio
Repeatability +/- 3% of ratio
Pressure Loss Available upon request
Maximum Temp. 100ºF (38ºC)
Minimum Temp. 34ºF (1ºC)
Maximum vertical suction
of concentrate
13 Feet (3.6 Meter)
Maximum horizontal
suction of concentrate
49 Feet (15 Meter)
Self-Priming Yes
Seal Material Available:
*Contact your distributor
for specifi c chemical
information
Afl as
Viton
EPDM
Kalrez
Tefl on Coated
Maximum Viscosity 1,500 cP (Ex. Honey)
Recommended
Accessories
140 mesh (104 micron)
fi lter, check valve, pressure
regulator, fl ow restrictor.
Model NPT BSP
0.3% Rotating 113229R 113729R
0.3% PAA Rotating 113229RK 113729RK
2.5%
2.5% WSP
113209
113209WSP
113709
113709WSP
5% 113210 113710
