Dosmatic Superdos 30 - Lower End & Wear Parts Kits 5%

English: 18

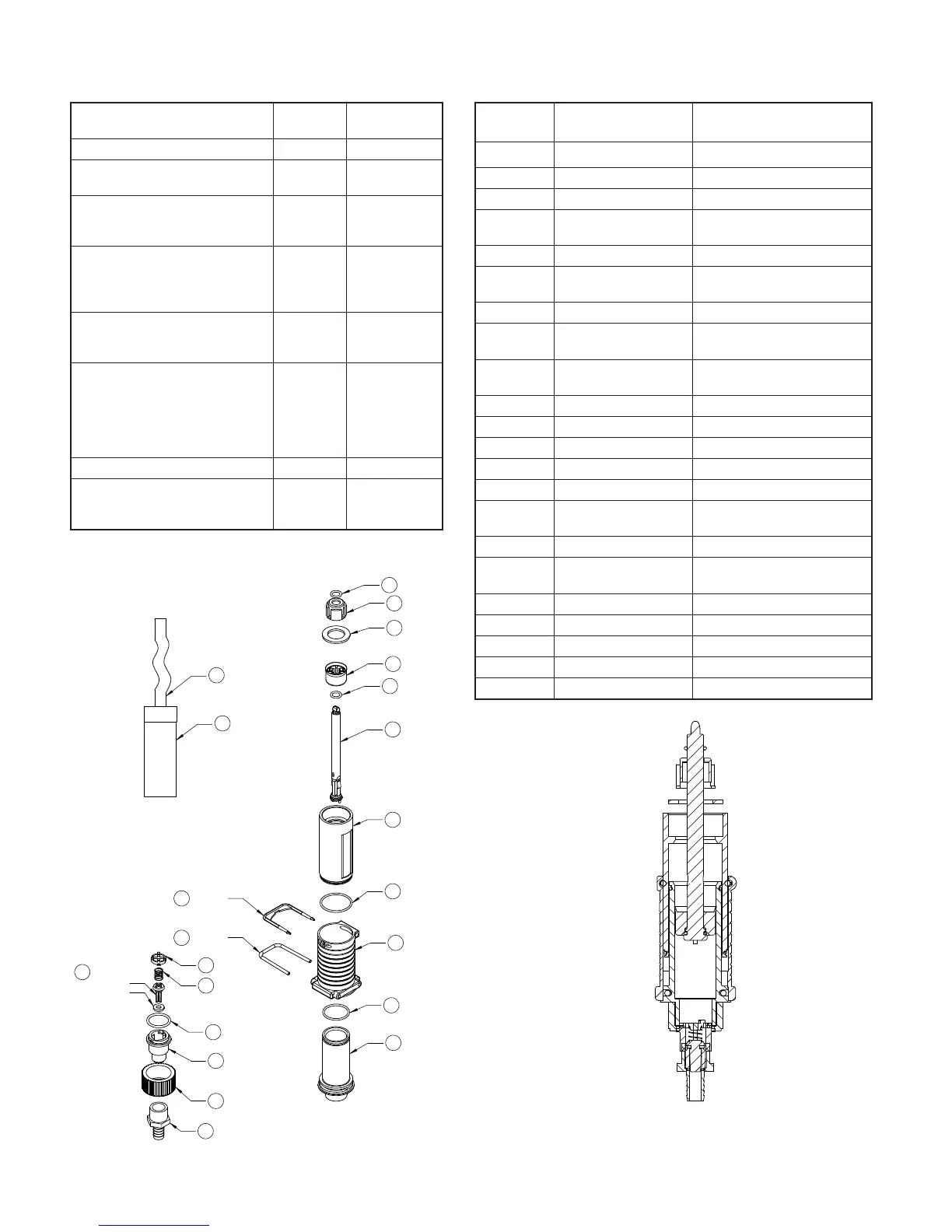

Lower end & wear parts kits 5%:
6
P
Lower End
Assembly
Kit A – Wear Parts Kit (dosage
piston and O-rings)
011852PV 14, 17, 44
Kit B – Wear Parts Kit (Kit A & shaft) 011950V 14, 17, 44, 51
Kit C – Wear Parts Kit (Kit A, inner
cylinder and O-ring)
011856PV 7, 14, 17, 44,
64
Kit D – Suction Tube Fitting Assy
(poppet, O-ring, spring, fi tting, barb,
twistlock)
011462V 10, 11, 12, 13,
77, 80
Kit E – Wear Parts Kit (Kits C & D,
shaft, gasket)
011836PV 7, 10, 11, 12,
13, 14, 16, 17,
44, 51, 64,
77, 80
Kit F – Lower End Cylinder Kit (inner
& outer cylinder, ratio adjuster,
O-rings, pins, gasket)
011963PV 7, 16, 61, 64,
65, 66, 67, 79
Kit G - Complete Lower End w/fi lter
& suction tube
011846PV 7, 10, 11, 12,
13, 14, 15, 16,
17, 25, 27, 44,
51, 61, 64, 65,
66, 67, 71, 77,
79, 80
Kit H – Motor Piston Assy 011863 9, 21
Kit M – Mounting Bracket Kit
(mounting bracket, 4 hex caps &
nuts) See Pg. 6
011432 56, 57, 58
Manual
Reference
Part # Description of Part
7 194405P Cylinder, inner
10 194418H Spring
11 011452 Fitting, suction tube, 1/2”
12 212120
*Must specify material
O-ring
13 011453A Check poppet
14 212005
*Must specify material
O-ring
15 194004 Seal retainer, O-ring
16 010016
*Must specify material
Lower end gasket
17 212005
*Must specify material
O-ring
25 011025 Suction tube, 1/2” x 5’
27 011018 Filter, for suction tube, 1/2” ID
44 194309 Dosage Piston
51 194301F Shaft
61 194406P Ratio adjustment sleeve
64 212017
*Must specify material
O-ring, inner cylinder, lower end
65 194310D Pin, upper interlock
66 212025
*Must specify material
O-ring, outer cylinder, lower end
67 011918P Cylinder, outer
71 194414 Nut, suction tube fi tting
77 003039 Hose Barb 1/2” x 3/8”
79 194410SS Retainer clip, bottom
80 194415 Twistlock
25
011025
27
011018
64
212017
15
194004
44
194309
51
194301
61
194406
7
194405
79
194410
67
011918P
011453A
13
17
212005
16
010016
14
212005
66
212025
65
194310
77
003039
194415
194413
80
194416
11
011452
71
194414
10
194418
12
212120
