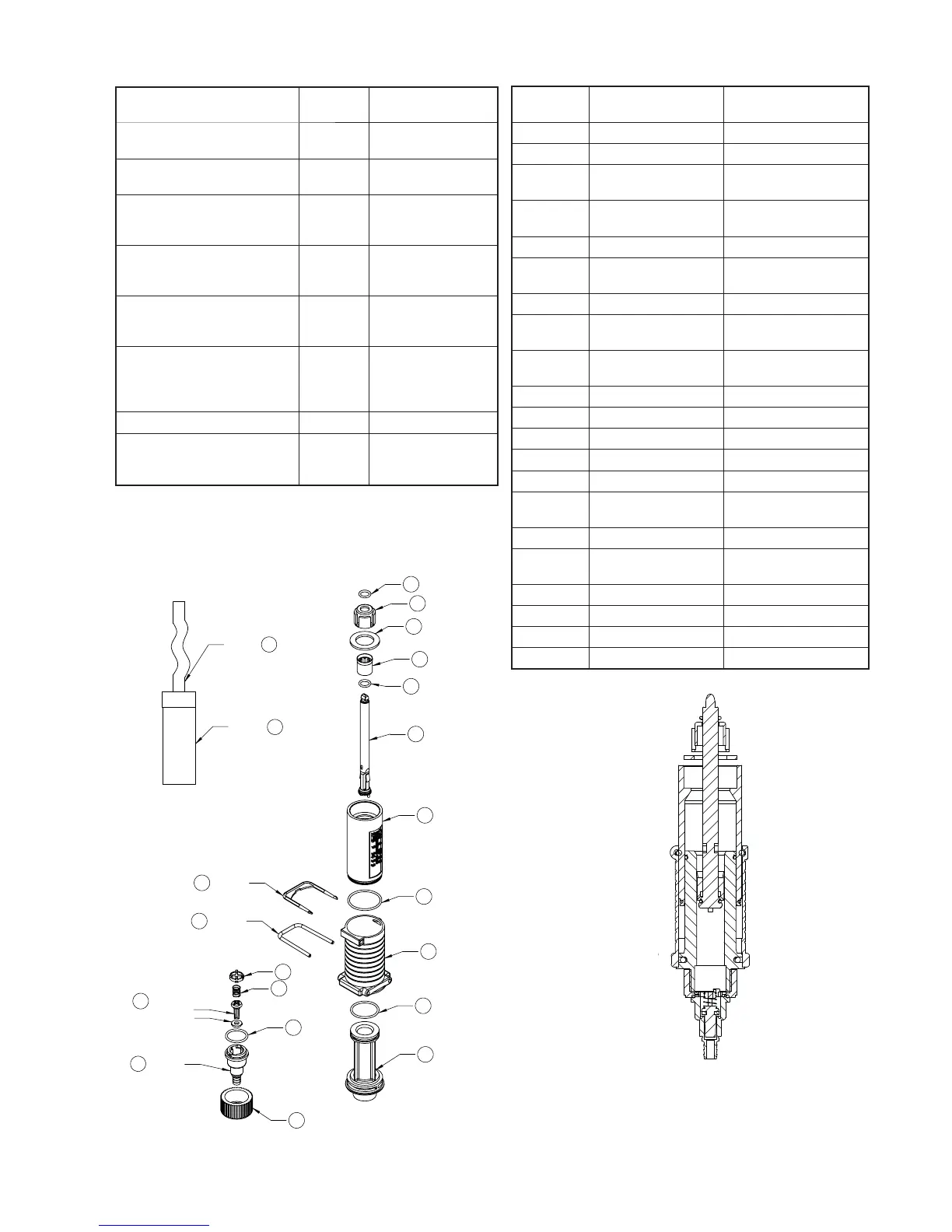

Dosmatic Superdos 30 - Lower End & Wear Parts Kits 2.5%

English: 16
Lower end & wear parts kits 2.5%:
194416
80
194415
10
194418
12
212120
194414
194412
71
194413
011015
011026
66
212025
44
010044
16
010016
15
194004
51
194301
61
194406
7
194404
13
011453A
27
11
25
79
194410
65
194310
17
212005
14
212005
67
194407P
64
212017
Kit A – Wear Parts Kit (dosage
piston and O-rings)
011850V 14, 17, 44
Kit B – Wear Parts Kit (Kit A &
shaft)
011945V 14, 17, 44, 51
Kit C – Wear Parts Kit (Kit A,
inner cylinder and O-ring)
011850CV 7, 14, 17, 44, 64
Kit D – Suction Tube Fitting Assy
(poppet, O-ring, spring, fi tting,
twistlock)
011461V 10, 11, 12, 13, 80
Kit E – Wear Parts Kit (Kits C &
D, shaft, gasket)
011831PV 7, 10, 11, 12, 13,
14, 16, 17, 44, 51,
64, 80
Kit F – Lower End Cylinder Kit
(inner & outer cylinder, ratio
adjuster, O-rings, pins, gasket)
011961V 7, 16, 61, 64, 65, 66,
67, 79
Kit G - Complete Lower End w/
fi lter & suction tube
011841PV 7, 10, 11, 12, 13, 14,
15, 16, 17, 25, 27,
44, 51, 61, 64, 65,
66, 67, 71, 79, 80
Kit H – Motor Piston Assy 011863 9, 21
Kit M – Mounting Bracket Kit
(mounting bracket, 4 hex caps &
nuts) See Pg. 6
011432 56, 57, 58
Manual
Reference
Part # Description of Part
7 194404P Cylinder, inner
10 194418H Spring
11 194412 Fitting, suction tube,
3/8”
12 212120
*Must specify material
O-ring
13 011453A Check poppet
14 212005
*Must specify material
O-ring
15 194004 Seal retainer, O-ring
16 010016
*Must specify material
Lower end gasket
17 212005
*Must specify material
O-ring
25 011015 Suction tube, 3/8” x 5’
27 011026 Filter, for suction tube
44 010044P Dosage Piston
51 194301F Shaft
61 194406P Ratio adjustment sleeve
64 212017
*Must specify material
O-ring, inner cylinder,
lower end
65 194310D Interlock pin
66 212025
*Must specify material
O-ring, outer cylinder,
lower end
67 194407P Cylinder, outer
71 194414 Nut, suction tube fi tting
79 194410SS Retainer clip, bottom
80 194415 Twistlock
P
Lower End
Assembly
