CORTEX CONTROLLER™ 55-POLE CABLE ASSEMBLY (CONTINUED)
C.Connecting the 55-Pole Cable Connector
Refer to the figure below and then slide cable male connectors into controller female connectors.

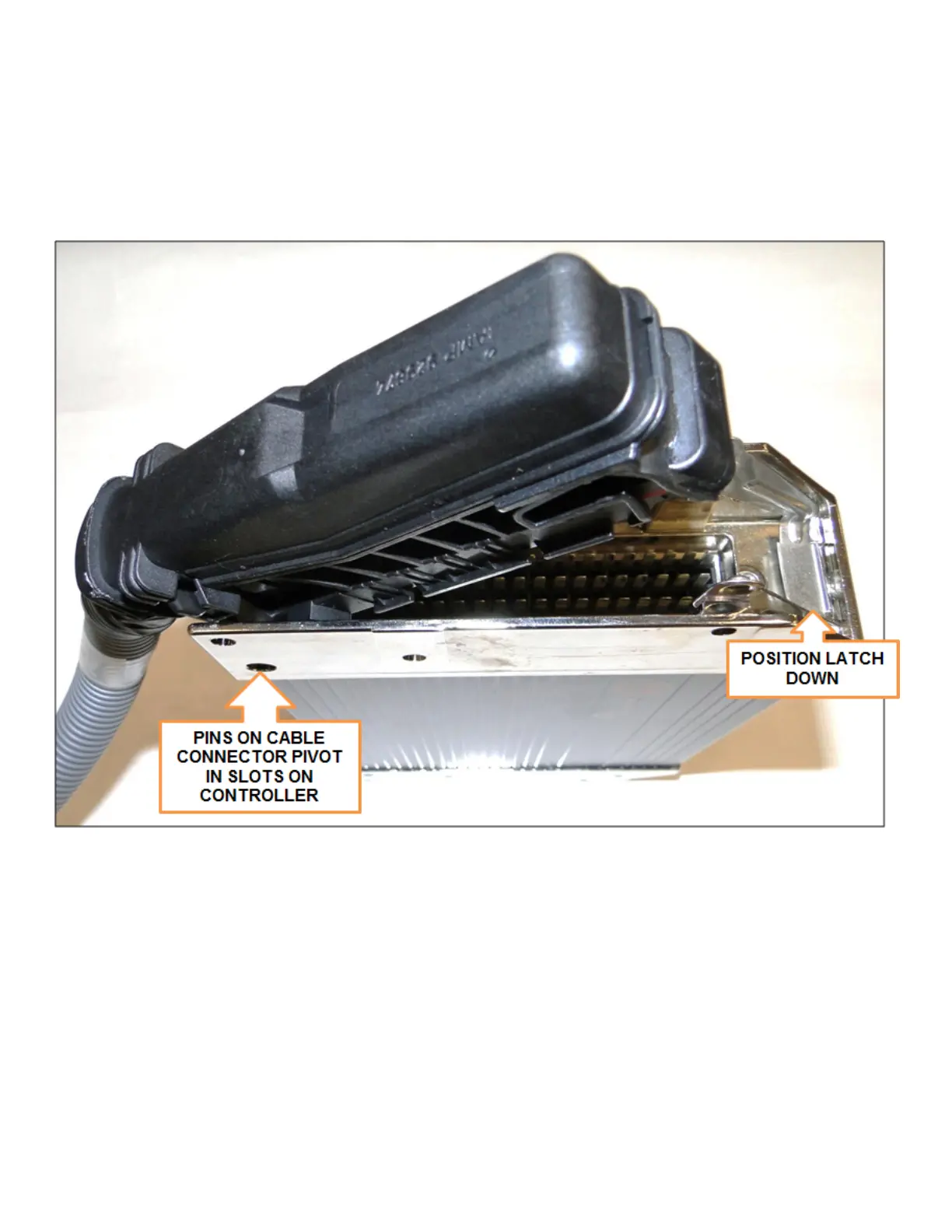

Figure 47. Cable Connector Pivoting on Controller
