CORTEX CONTROLLER™ 55-POLE CABLE ASSEMBLY (CONTINUED)
D.Pivot Cable Connector and Latch
1. While keeping left side of cable connector seated, carefully pivot cable connector until flush with controller. See the
figure below.

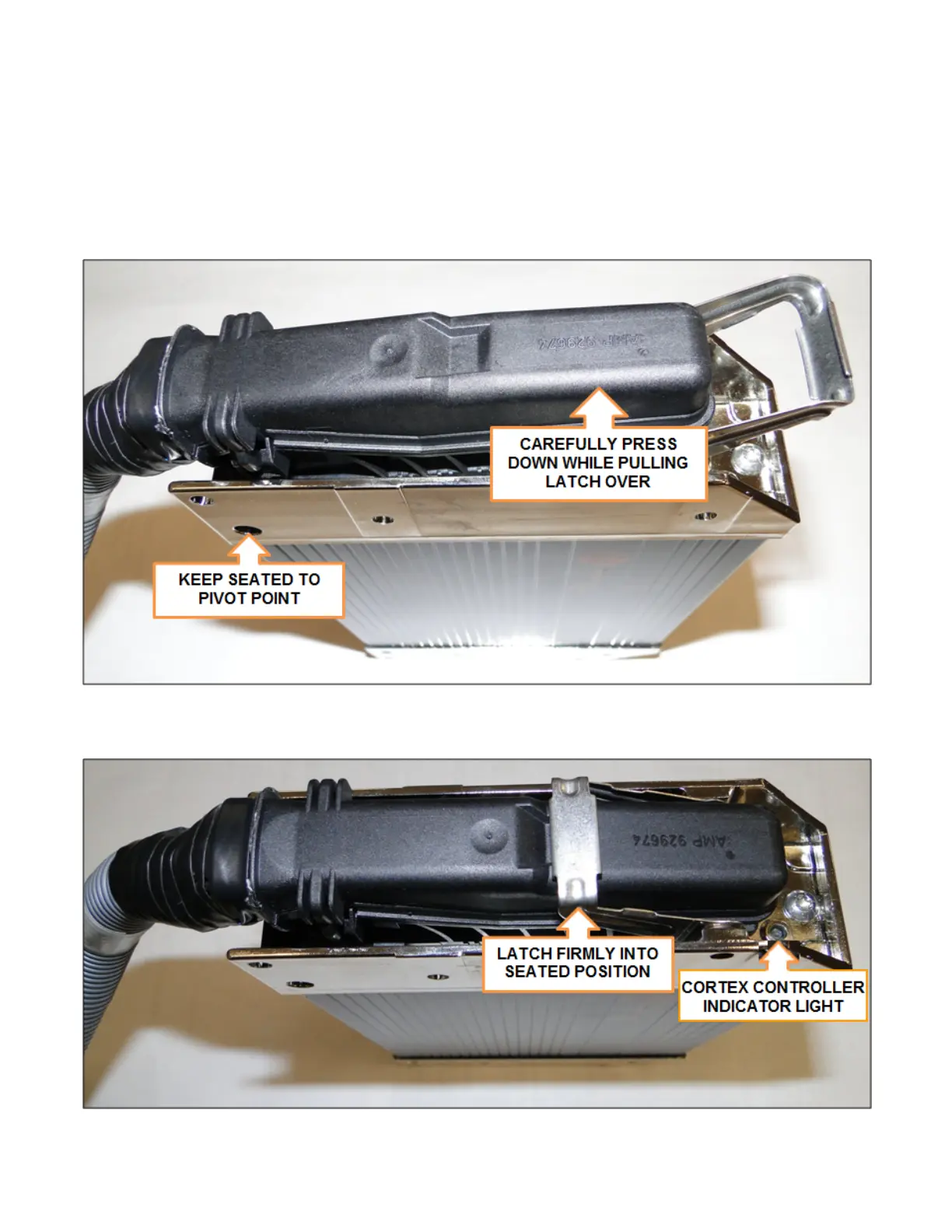

Figure 48. Slowly Press Down While Keeping Left Cable Connector Pivot Point in Place
2. Latch cable to controller until latch is secure and flush with rear of cable connector. See the figure below.
Figure 49. Latch Controller to Cable Connector
