3 Description

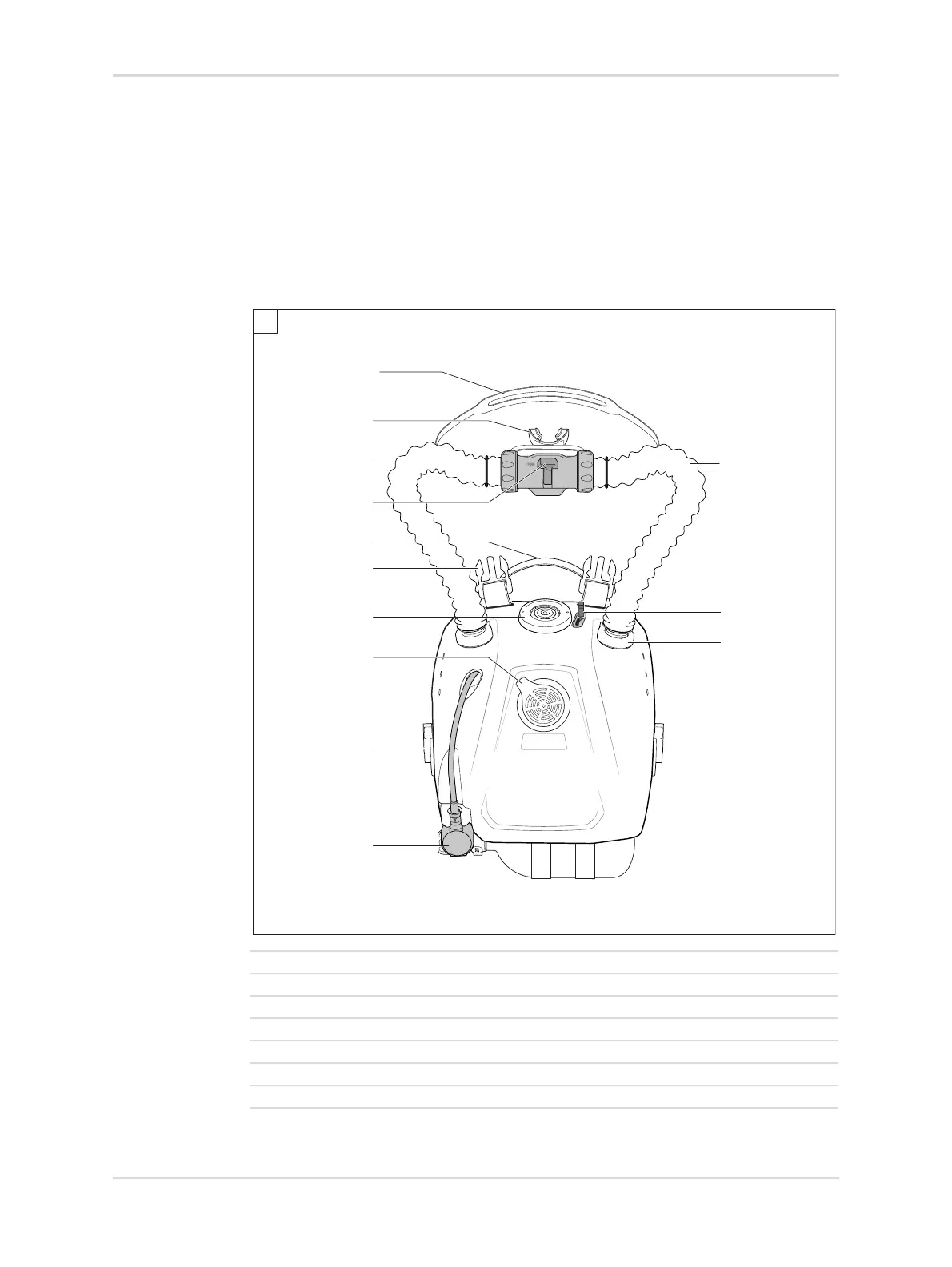

3.1 Product overview
3.1.1 Front view
45245
1 Mouthpiece 8 Lower quick-release buckles
2 Inhalation hose 9 Pressure gauge
3 Mouthpiece closure 10 Connecting piece
4 Handle 11 Lever for response threshold
5 Upper quick-release buckles 12 Exhalation hose
6 Manual bypass 13 Headband
7 Relief valve
A
1
2
4
7
5
8
9
6
3
13
11
12
10
