Dräger Polytron 8000 11
3.10 Connecting the device to a Dräger
control unit
Electrical connections to the control unit
z Connect the screen for the wires to the grounding point in
the control unit (e.g., chassis, grounding rail).
3.11 Connecting the device to a PC
The separately available Polytron 5000/8000 IR connection kit
is intended for use with the Polytron 5000/8000 and enables
communication between the Polytron 5000/8000 and a PC.
3.12 PolySoft 8000 PC software (optional)
The PolySoft 8000 PC software is used to display device
information, edit configuration settings and read out from the
measurements memory.
3.13 Installing software dongles
The following SW dongles are available for the Polytron 8000:
To install a SW dongle:
1. Switch off the power to the unit or declassify the area
according to the local regulations.
2. Release the set screw and unscrew the housing cover
from the device.
3. Lift the handle and remove the enclosure with the
main electronics.
4. Insert the dongle in the slot with the Dräger lettering facing
upwards.
5. Insert the main electronics back in the housing.
6. Screw the cover on again and tighten the set screw.
The dongle is installed.
7. Switch on the power.
NOTICE
Information on connection can be found in the
Instructions for Use accompanying the particular
Dräger control unit (e.g. Regard, QuadGard).
i
i
Sensor test dongle
83 17 619
Activates the sensor test
(for certain sensors only)
Diagnostic dongle
83 17 860
Enables the sensor self test, the display
of the remaining sensor activity and the
sensor diagnostic function
(for certain functions only)

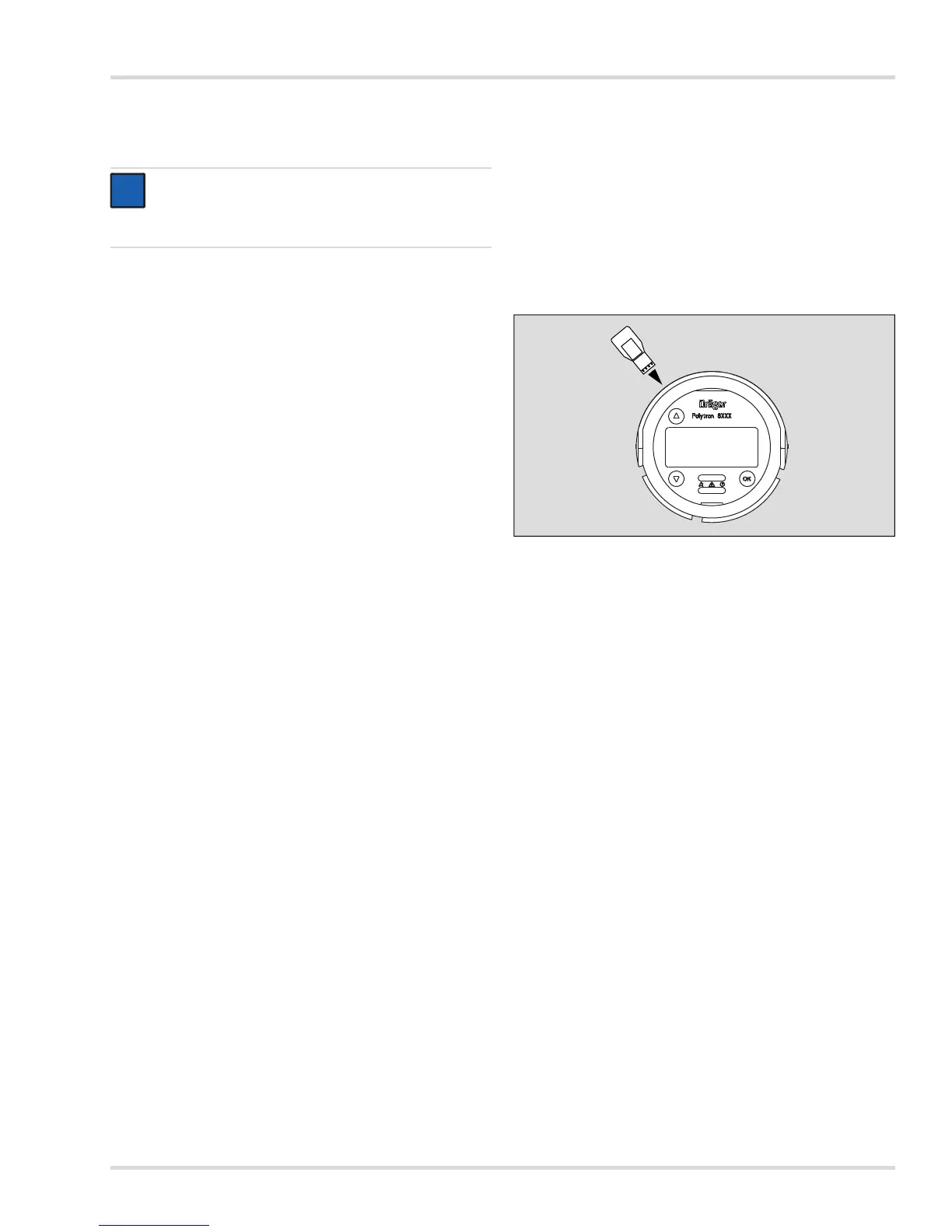

00833300.eps
