Description
Dräger Polytron 8000 5
2 Description

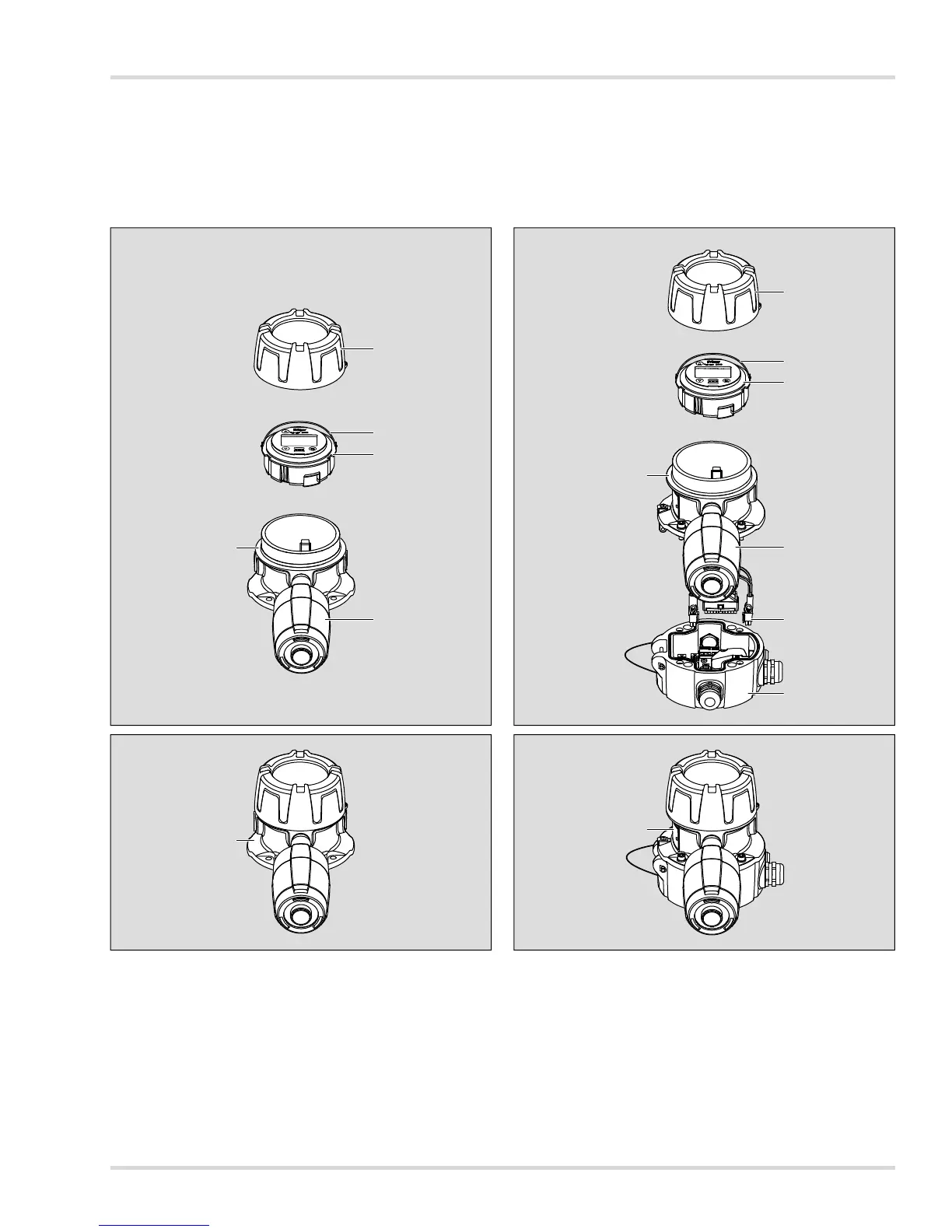

2.1 Product overview
2.1.1 Explosion proof device
1 Housing cover
2 Handle
3 Enclosure with main electronics (and optional relay)
4 Lower part of housing
5 Sensor
6 Assembled device
2.1.2 Explosion proof device with e-Box for
increased safety
1 Housing cover
2 Handle
3 Enclosure with main electronics (and optional relay)
4 Lower part of housing
5 Sensor
6 Feed through cable
7e-Box
8 Assembled device
4
6
1
3
5
2
00133298.eps
4
8
1
6
7
3
5
2
00633298.eps

Dräger Polytron 8000 Specifications

General

Ingress Protection	IP66/67
Gas Detection	Electrochemical, Infrared, Catalytic
Display	Backlit LCD
Housing Material	Aluminum or stainless steel
Temperature Range	-40 to +65 °C
Humidity Range	0% to 95% RH (non-condensing)
Power Supply	18-30 V DC
Output Signal	4 to 20 mA, HART
Certifications	ATEX, IECEx
Measuring Range	Depends on gas type
Weight	Approx. 1.6 kg (Aluminum), 3.2 kg (Stainless Steel)
