Disassembly of the Breathing System
• Loosen the 5 sealing screws (A) using
the Allen Key (B) – Diagram 1
• Remove the cover
• Lift off the metal heater plate
• Loosen the 3 remaining sealing screws
to access the ventilator diaphragm and
remove – Diagram 2
• Prepare all parts for cleaning &
disinfection process as per Hospital policy

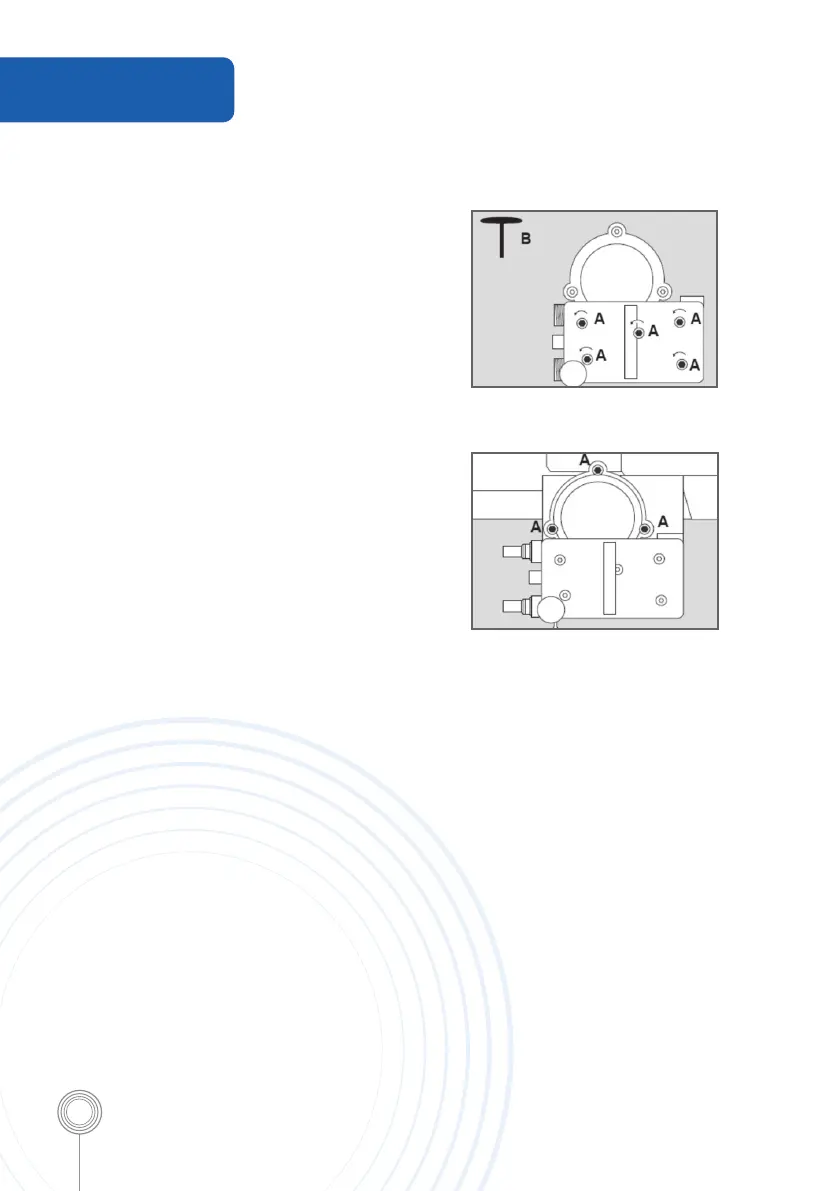

Diagram 1
Diagram 2
Cleaning

Dräger Primus Series Specifications

General

Type	Anesthesia Workstation
Display	Color Touchscreen
Power Supply	AC Mains (100-240V, 50/60Hz)
Backup Battery	Minimum 30 minutes (depending on configuration and usage)
Tidal Volume Range	20 to 1500 mL
Respiratory Rate	4 to 100 bpm
Inspiratory Time	0.2-5.0 sec
PEEP	0-20 mbar
Gas Supply	O2, N2O, Air
Alarms	Apnea, Gas Supply
Ventilation Modes	Manual, Pressure Support, SIMV
O2 Flush	35 to 45 L/min
