Draytek Vigor2912 Series User Manual

Vigor2912 Series User’s Guide
79

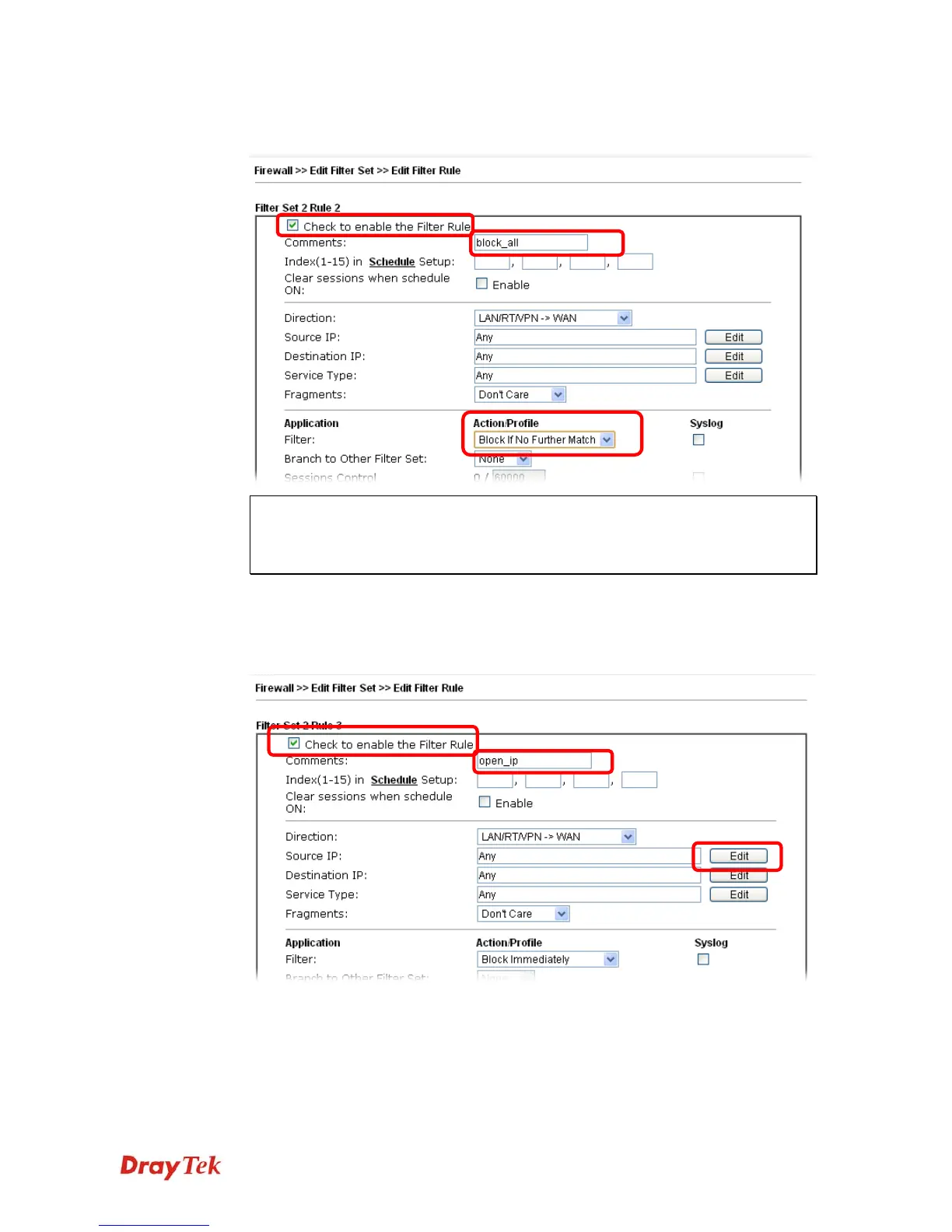

3. Check the box of Check to enable the Filter Rule. Type the comments (e.g., block_all).
Choose Block If No Further Match for the Filter setting. Then, click OK.
Note: In default, the router will check the packets starting with Set 2, Filter Rule 2 to
Filter Rule 7. If Block If No Further Match for is selected for Filter, the firewall of
the router would check the packets with the rules starting from Rule 3 to Rule 7. The
packets not matching with the rules will be processed according to Rule 2.
4. Next, set another rule. Just open Firewall>>Filter Setup. Click the Set 2 link and
choose the Filter Rule 3 button.
5. Check the box of Check to enable the Filter Rule. Type the comments (e.g., open_ip).
Click the Edit button for Source IP.

Draytek Vigor2912 Series Specifications

General

Brand	Draytek
Model	Vigor2912 Series
Category	Network Router
Language	English
