Vigor2920 Series User’s Guide
103

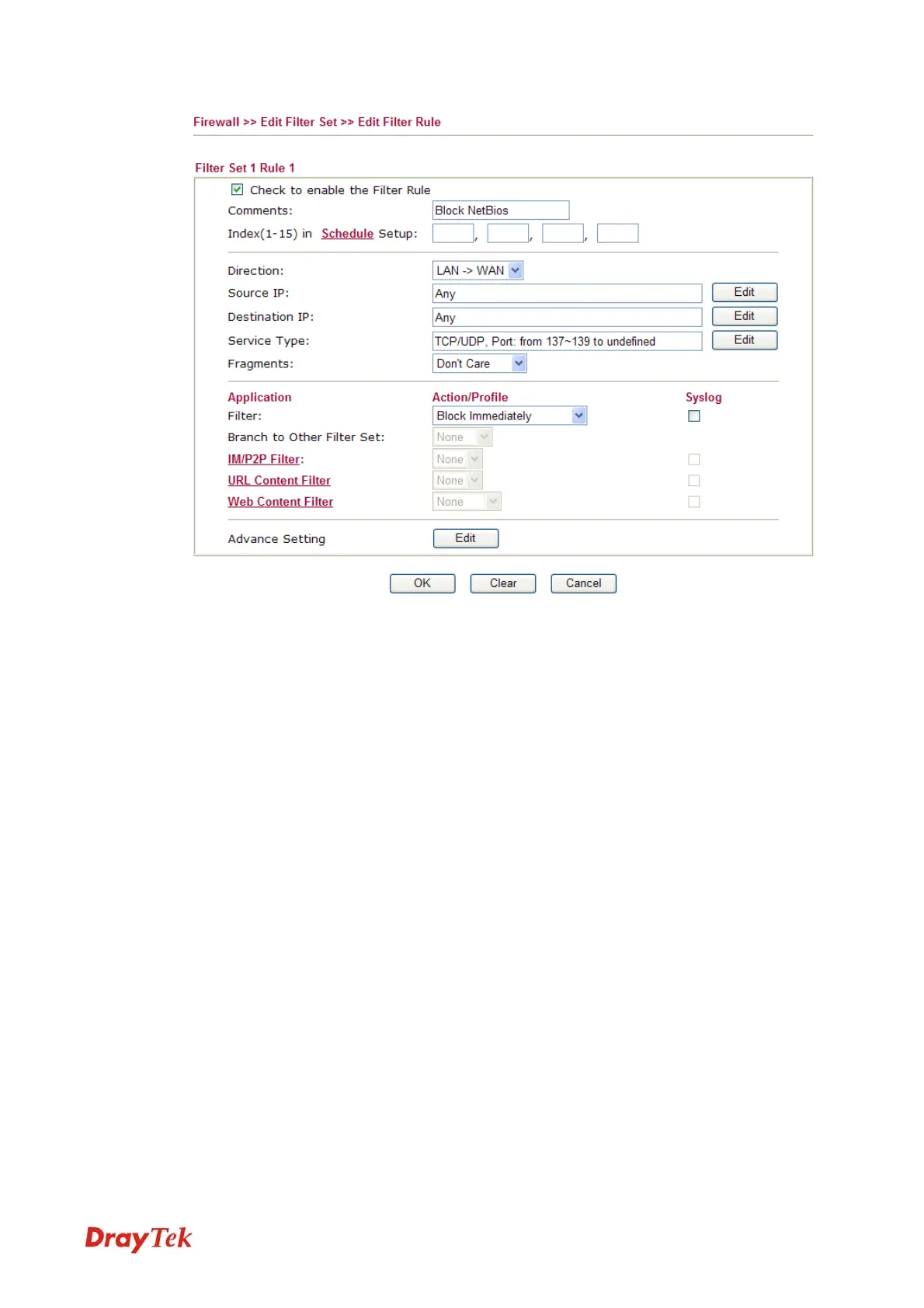

Check to enable the
Filter Rule
Check this box to enable the filter rule.
Comments Enter filter set comments/description. Maximum length is 14-
character long.
Index(1-15) Set PCs on LAN to work at certain time interval only. You may
choose up to 4 schedules out of the 15 schedules pre-defined in
Applications >> Schedule setup. The default setting of this field is
blank and the function will always work.
Direction Set the direction of packet flow (LAN->WAN/WAN->LAN). It is for
Data Filter only. For the Call Filter, this setting is not available
since Call Filter is only applied to outgoing traffic.
Source/Destination IP Click Edit to access into the following dialog to choose the
source/destination IP or IP ranges.
