Vigor2920 Series User’s Guide
104

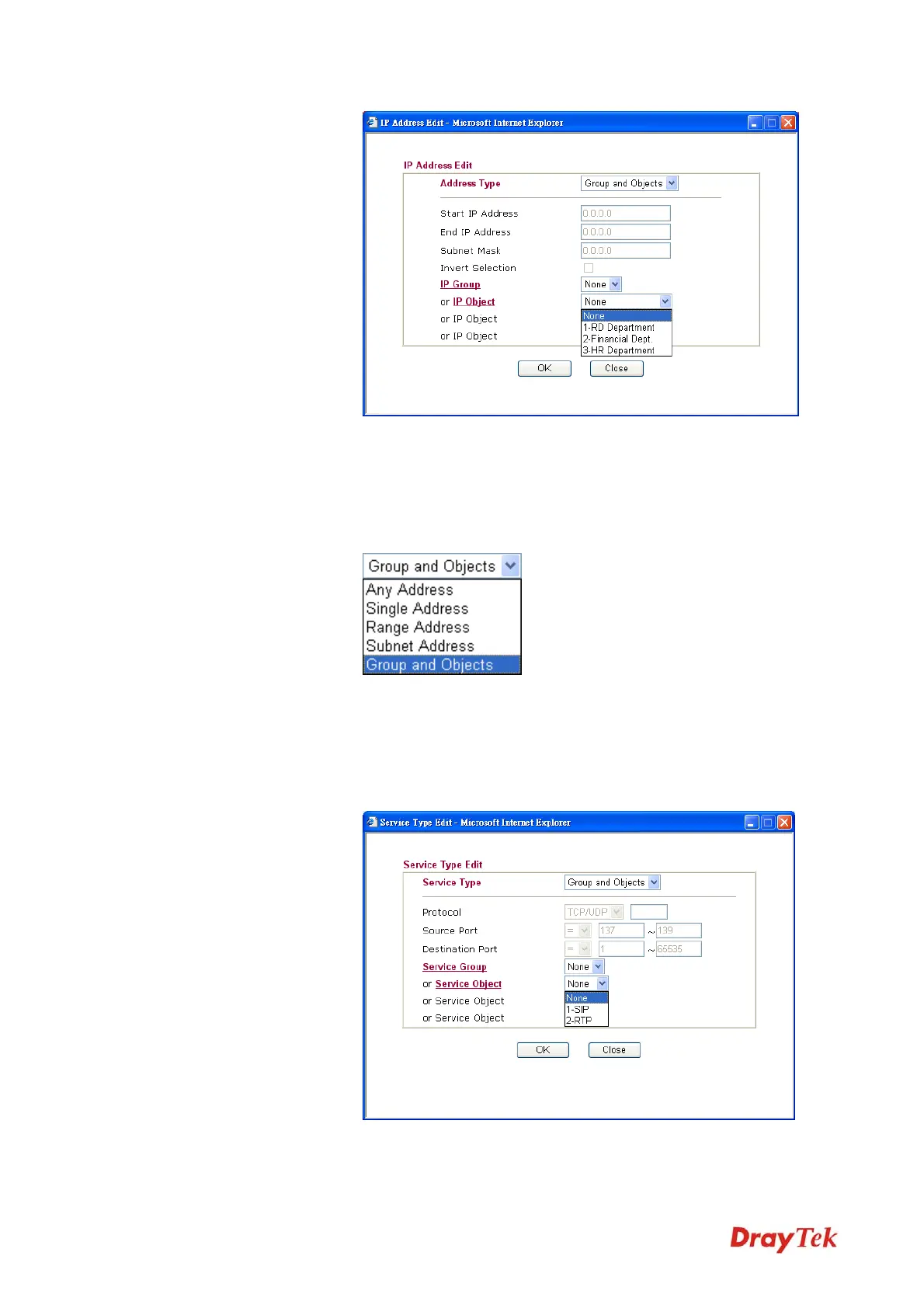

To set the IP address manually, please choose Any Address/Single
Address/Range Address/Subnet Address as the Address Type and
type them in this dialog. In addition, if you want to use the IP range
from defined groups or objects, please choose Group and Objects
as the Address Type.
From the IP Group drop down list, choose the one that you want to
apply. Or use the IP Object drop down list to choose the object that
you want.
Service Type Click Edit to access into the following dialog to choose a suitable
service type.
To set the service type manually, please choose User defined as the
Service Type and type them in this dialog. In addition, if you want to
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
