Draytek Vigor2950 Series User Manual

Vigor2950 Series User’s Guide
29
3
3
.
.
1
1
.
.
4
4
L
L
o
o
a
a
d
d
-
-
B
B
a
a
l
l
a
a
n
n
c
c
e
e
P
P
o
o
l
l
i
i
c
c
y
y

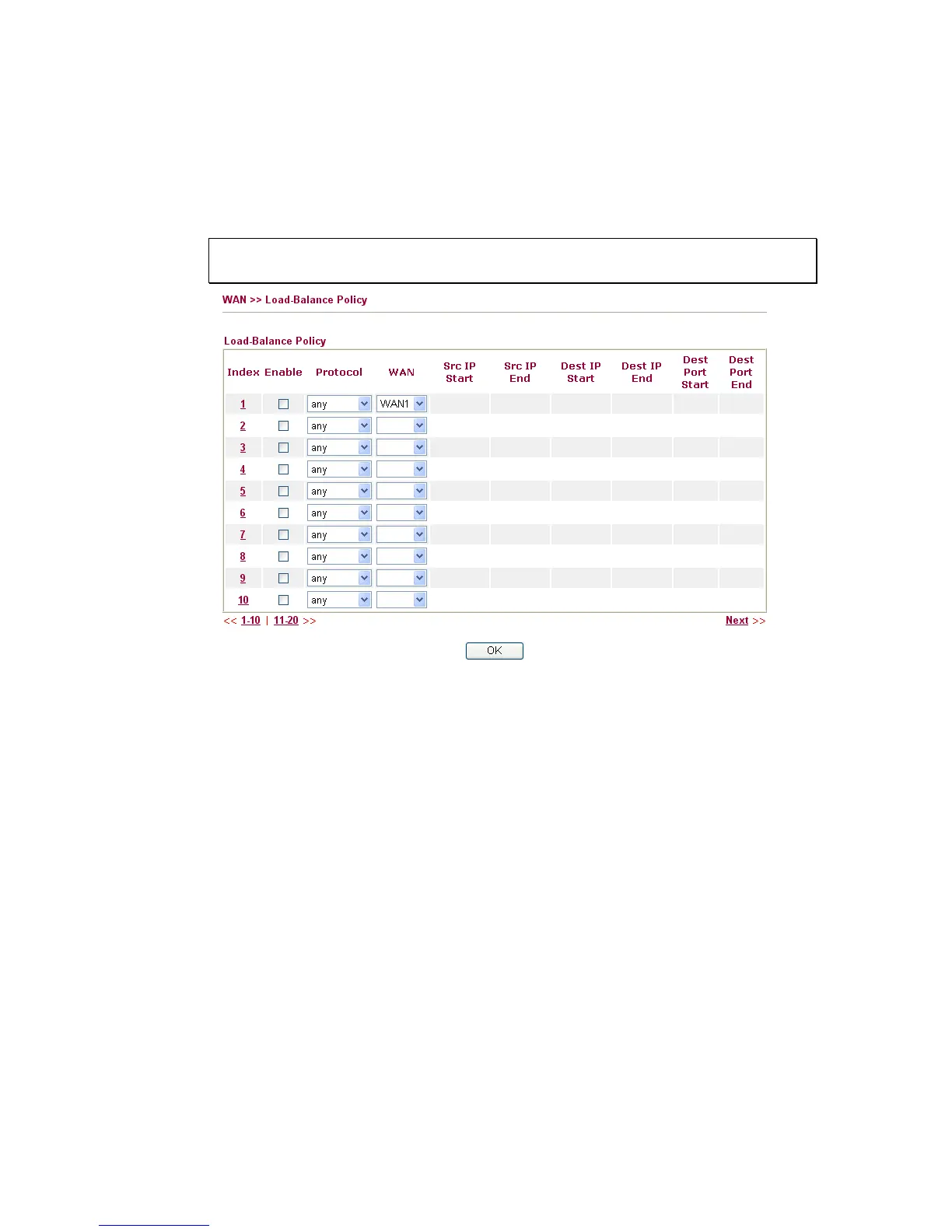

This router supports the function of load balancing. It can assign traffic with protocol type,
IP address for specific host, a subnet of hosts, and port range to be allocated in WAN1 or
WAN2 interface. The user can assign traffic category and force it to go to dedicate network
interface based on the following web page setup. Twenty policies of load-balance are
supported by this router.
Note: Load-Balance Policy is running only when both WAN1 and WAN2 are
activated.
Index Click the number of index to access into the load-balance policy
configuration web page.
Enable Check this box to enable this policy.
Protocol Use the drop-down menu to change the protocol for the WAN
interface.
WAN Use the drop-down menu to change the WAN interface.
Src IP Start Displays the IP address for the start of the source IP.
Src IP End Displays the IP address for the end of the source IP.
Dest IP Start Displays the IP address for the start of the destination IP.
Dest IP End Displays the IP address for the end of the destination IP.
Dest Port Start Displays the IP address for the start of the destination port.
Dest Port End Displays the IP address for the end of the destination port.
Click Index 1 to access into the following page for configuring load-balance policy.
