Vigor2950 Series User’s Guide
69
3
3
.
.
6
6
.
.
2
2
B
B
a
a
n
n
d
d
w
w
i
i
d
d
t
t
h
h
L
L
i
i
m
m
i
i
t
t
The downstream or upstream from FTP, HTTP or some P2P applications will occupy large
of bandwidth and affect the applications for other programs. Please use Limit Bandwidth to
make the bandwidth usage more efficient.

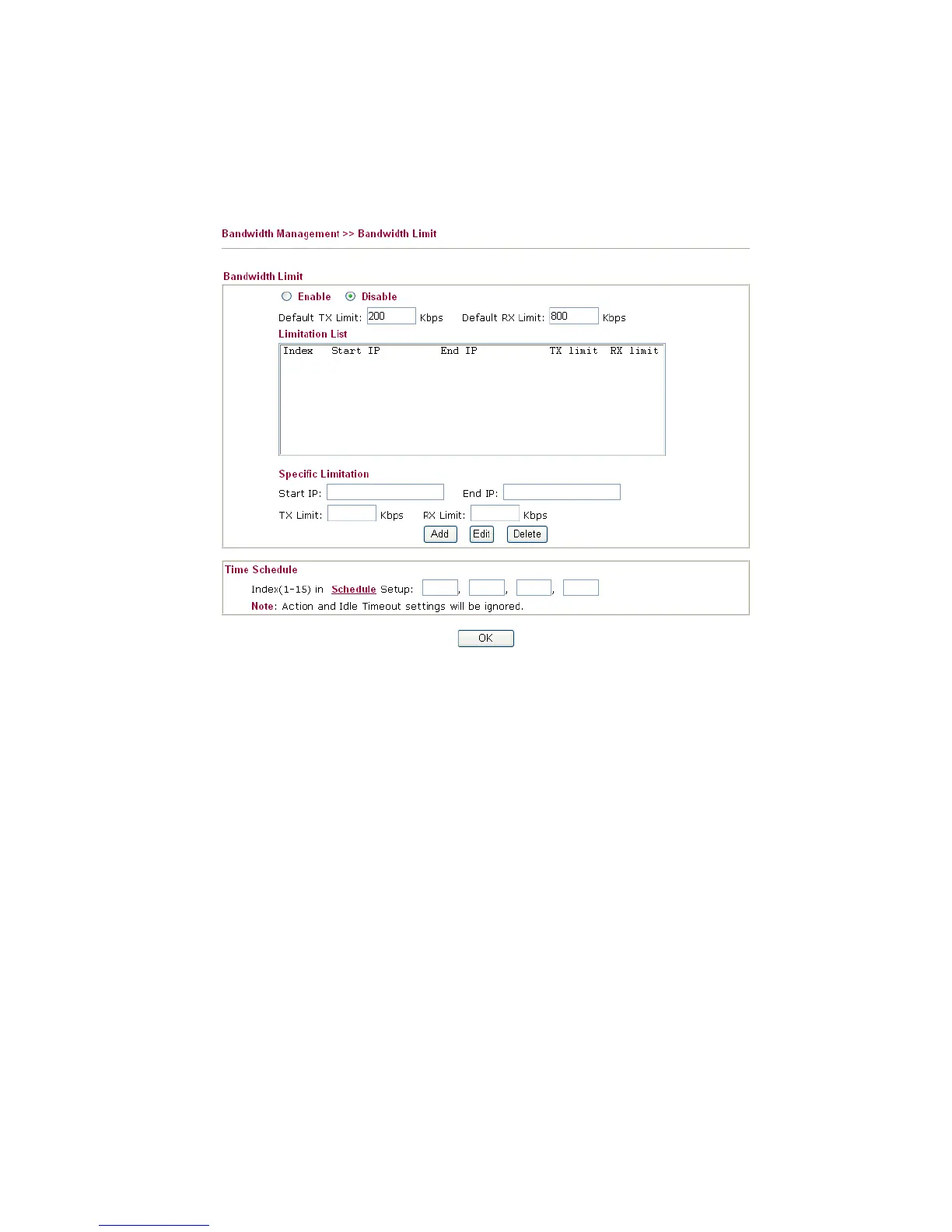

In the Bandwidth Management menu, click Bandwidth Limit to open the web page.
To activate the function of limit bandwidth, simply click Enable and set the default upstream
and downstream limit.
Enable Click this button to activate the function of limit bandwidth.
Disable Click this button to close the function of limit bandwidth.
Default TX limit Define the default speed of the upstream for each computer in
LAN.
Default RX limit Define the default speed of the downstream for each computer
in LAN.
Limitation List Display a list of specific limitations that you set on this web
page.
Start IP Define the start IP address for limit bandwidth.
End IP Define the end IP address for limit bandwidth.
TX limit Define the limitation for the speed of the upstream. If you do
not set the limit in this field, the system will use the default
speed for the specific limitation you set for each index.
RX limit Define the limitation for the speed of the downstream. If you
do not set the limit in this field, the system will use the default
speed for the specific limitation you set for each index.
Add Add the specific speed limitation onto the list above.
Edit Allows you to edit the settings for the selected limitation.
