Draytek Vigor2950 Series User Manual

Vigor2950 Series User’s Guide
61
3
3
.
.
5
5
.
.
1
1
I
I
P
P
O
O
b
b
j
j
e
e
c
c
t
t

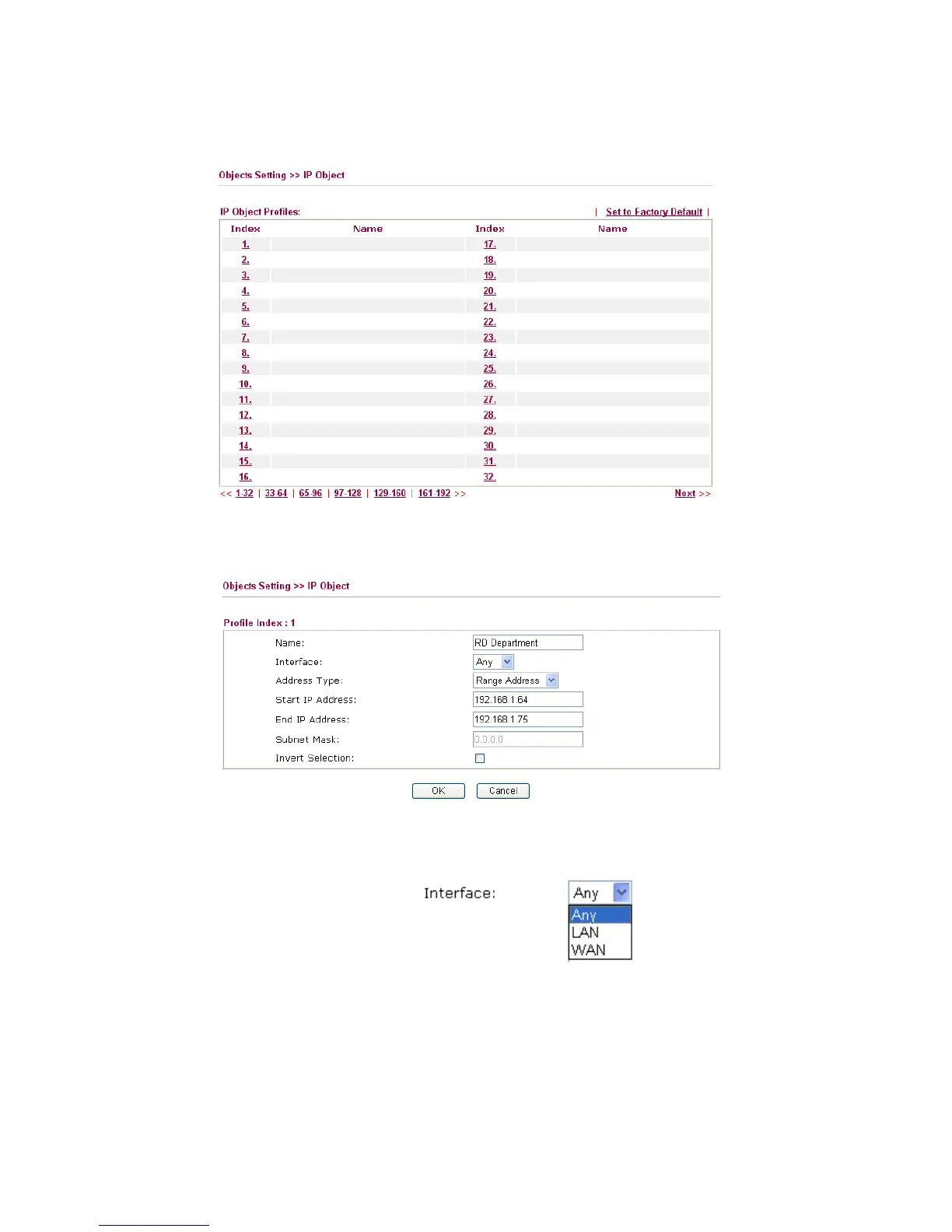

You can set up to 192 sets of IP Objects with different conditions.
Set to Factory Default Clear all profiles.
Click the number under Index column for settings in detail.
Name Type a name for this profile. Maximum 15 characters are
allowed.
Interface Choose a proper interface (WAN, LAN or Any).
For example, the Direction setting in Edit Filter Rule will
ask you specify IP or IP range for WAN or LAN or any IP
address. If you choose LAN as the Interface here, and choose
LAN as the direction setting in Edit Filter Rule, then all the
IP addresses specified with LAN interface will be opened for
you to choose in Edit Filter Rule page.
Address Type Determine the address type for the IP address.
Select Single Address if this object contains one IP address
