Vigor2950 Series User’s Guide
51
Filter Rule Click a button numbered (1 ~ 7) to edit the filter rule. Click the
button will open Edit Filter Rule web page. For the detailed
information, refer to the following page.
Active Enable or disable the filter rule.
Comment Enter filter set comments/description. Maximum length is
23–character long.
Move Up/Down Use Up or Down link to move the order of the filter rules.
Next Filter Set Set the link to the next filter set to be executed after the current
filter run. Do not make a loop with many filter sets.

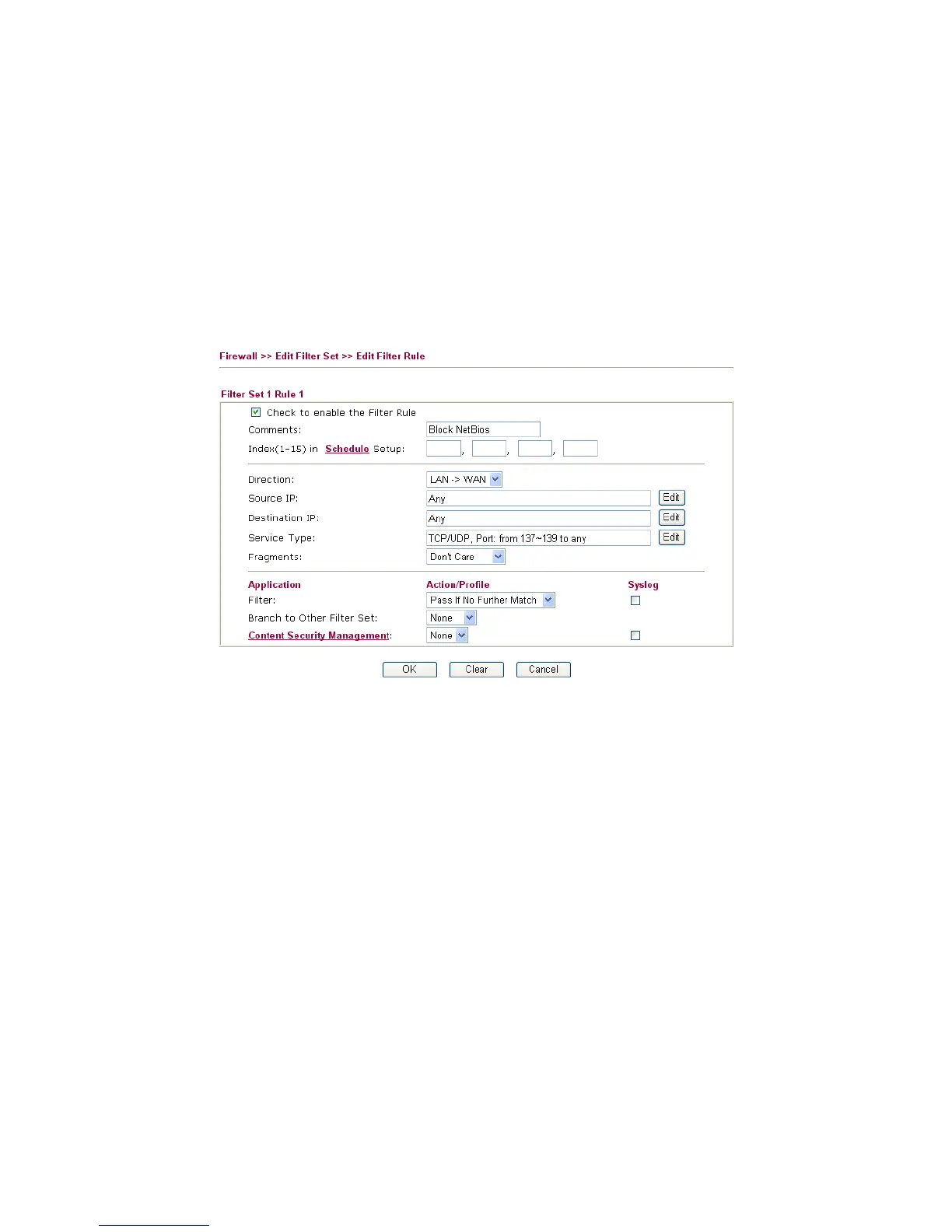

To edit Filter Rule, click the Filter Rule index button to enter the Filter Rule setup page.
Check to enable the
Filter Rule
Check this box to enable the filter rule.
Comments Enter filter set comments/description. Maximum length is 14-
character long.
Index(1-15) Set PCs on LAN to work at certain time interval only. You may
choose up to 4 schedules out of the 15 schedules pre-defined in
Applications >> Schedule setup. The default setting of this filed is
blank and the function will always work.
Direction Set the direction of packet flow (LAN->WAN/WAN->LAN). It is
for Data Filter only. For the Call Filter, this setting is not
available since Call Filter is only applied to outgoing traffic.
Source/Destination IP Click Edit to access into the following dialog to choose the
source/destination IP or IP ranges.
