30
DEHUMIDIFIER INSTALLATION, OPERATION, AND MAINTENANCE MANUAL
INSTALLATION
Model RL-9 duct installation
DUCT KIT INSTALLATION
1. Install the round adapter plates onto the inlet and
outlet using the #6 (smaller) screws provided. See
Figure 30-1.
2. Attach the assembled components to the dehumidifier
using the #10 (larger) screws provided. The filter
clips must be removed from the inlet side of the
dehumidifier, the duct kit will attach using those holes.
See Figure 30-2.
3. Install the filter access door and secure with the thumb
screws. See Figure 30-3.

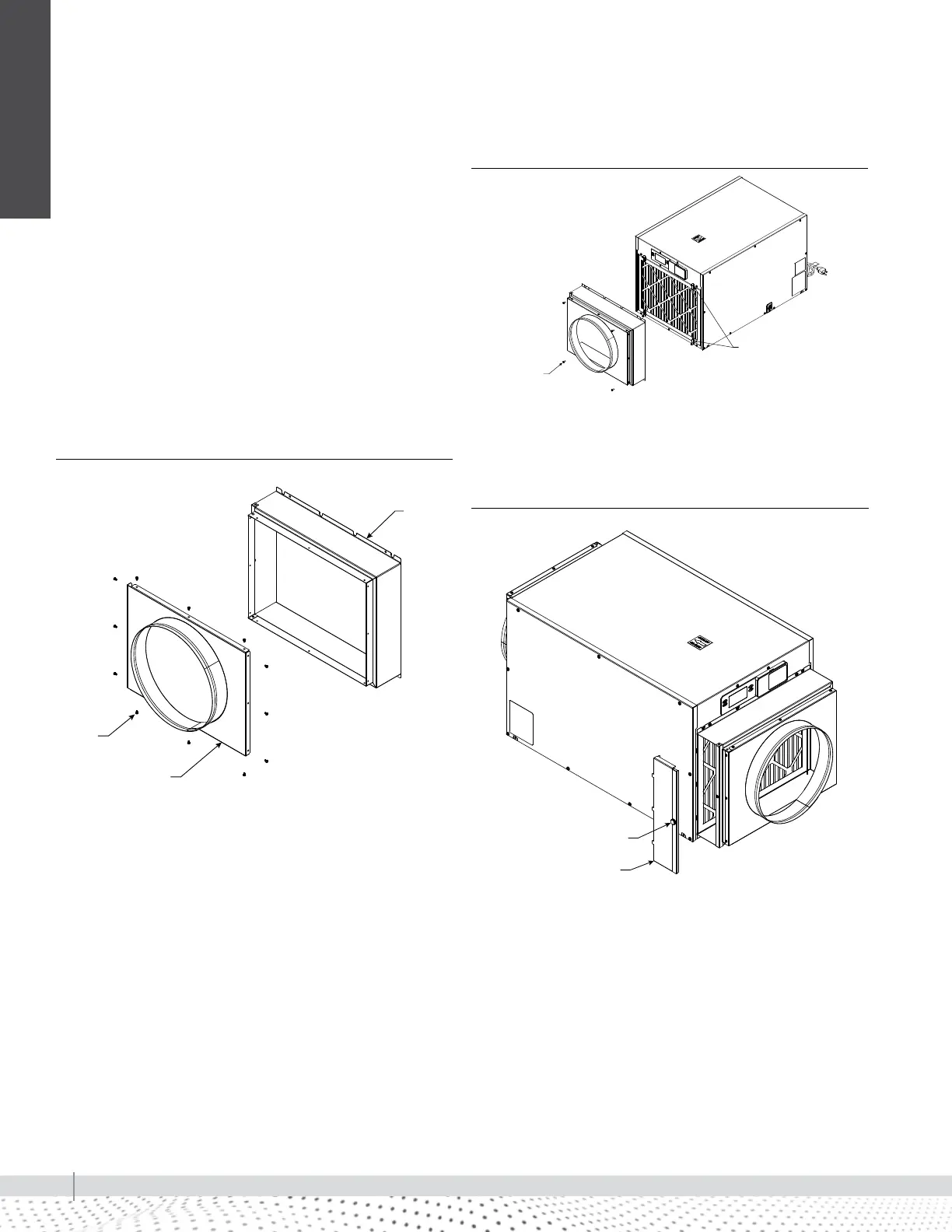

FIGURE 30-1: ALIGN TABS
FIGURE 30-3: INSTALL
FIGURE 30-2: ATTACH ASSEMBLED DUCT HOUSING
90-2574
90-2644
90-2643
Adapter plate
Housing
#6
screws
Thumb screw
Filter door
#10 screws
Remove and discard
