Installation
INSTALLATION
Follow these guidelines during installation.
l Before affixing the communicator to a wall, verify the HSPA signal level at the installation location. On a
keypad, press and hold the 5 key for 2 seconds to view the HSPA signal level. An installation location
with a sustained signal level of two or more bars is recommended.
l Do not exceed the panel total output power when using panel power for the TL8803GI-EU module,
hardwired sensors, and /or sirens. Refer to the specific panel installation instructions for details. Only one
module can be used per panel.
l To minimize potential interference with cellular signaling, avoid mounting the communicator in areas with
excessive metal or electrical wiring, such as furnaces or utility rooms.
Do not mount the TL8803GI-EU communicator inside of the metal alarm panel enclosure.
Tools and supplies required
You will need the following tools and supplies:
l Small flat-head and Phillips screwdrivers
l Screws (included)
l Antenna (included)
l 16 pin ribbon cable (included)

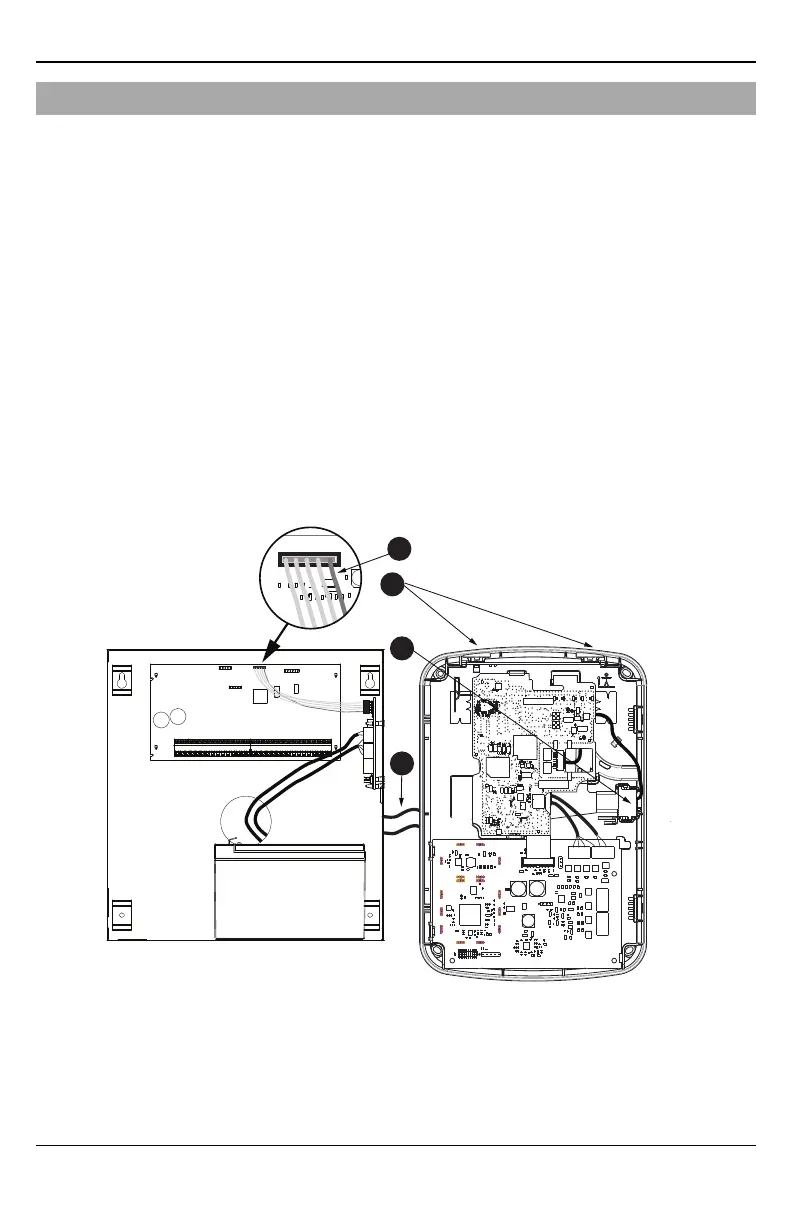

HS2016/2032/2064/2128
PCLINK_2
Alarm Controller Cabinet
HSPA Controller
A
B
D
C
