DSE DSE331 - APPENDIX; COMMUNICATIONS AND PC CONNECTION

Appendix
36
12 APPENDIX
12.1 COMMUNICATIONS OPTION CONNECTIONS
12.1.1 DESCRIPTION
The DSE Configuration Suite software allows the controller to communicate with a PC. The computer connects to
the module as shown below and allows easy adjustment of the operating parameters and firmware update of the
controller.
12.1.2 PC TO CONTROLLER (DIRECT) CONNECTION

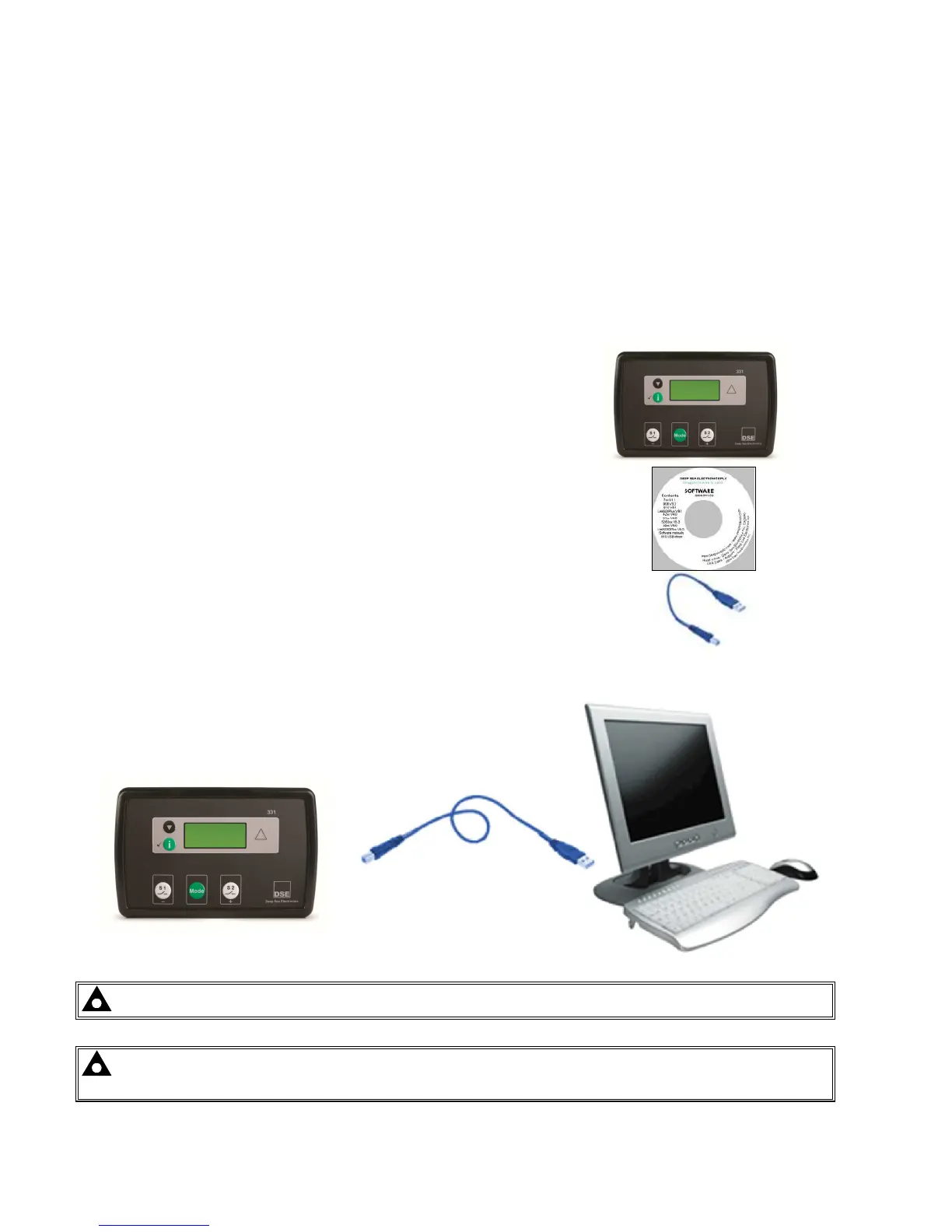

To connect a 331 ATS module to a PC the following items are required: -
• DSE331 series module
• Configuration Suite software (Supplied on configuration suite
software CD or available from www.deepseaplc.com).
• USB cable Type A to Type B.
NOTE:- The DC supply must be connected to the module for configuration by PC.
NOTE:- Refer to DSE Configuration Suite software Manual (057-149) for further details on configuring
the module by PC.
