Installation
17

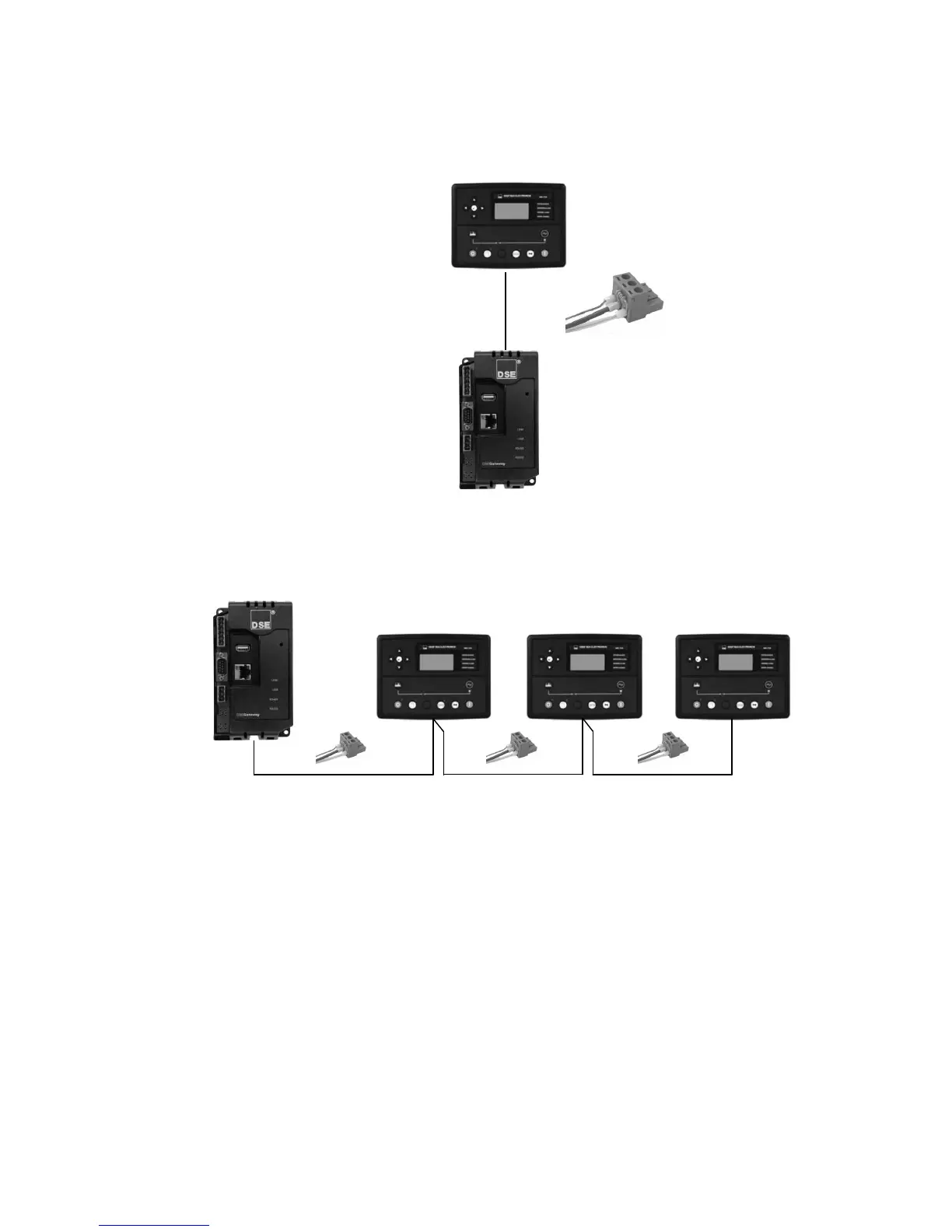

3.15.5 RS485 (SINGLE CONTROLLER)
RS485 connection utilises twisted pair RS485 cable with 120Ω termination resistors as per RS485
standard.
3.15.6 RS485 (MULTIPLE CONTROLLER)
RS485 connection utilises twisted pair RS485 cable with 120Ω termination
resistors as per RS485 standard.
RS485 cable
