DSE DSE892 SNMP - RS232 CONNECTOR

Specifications
8

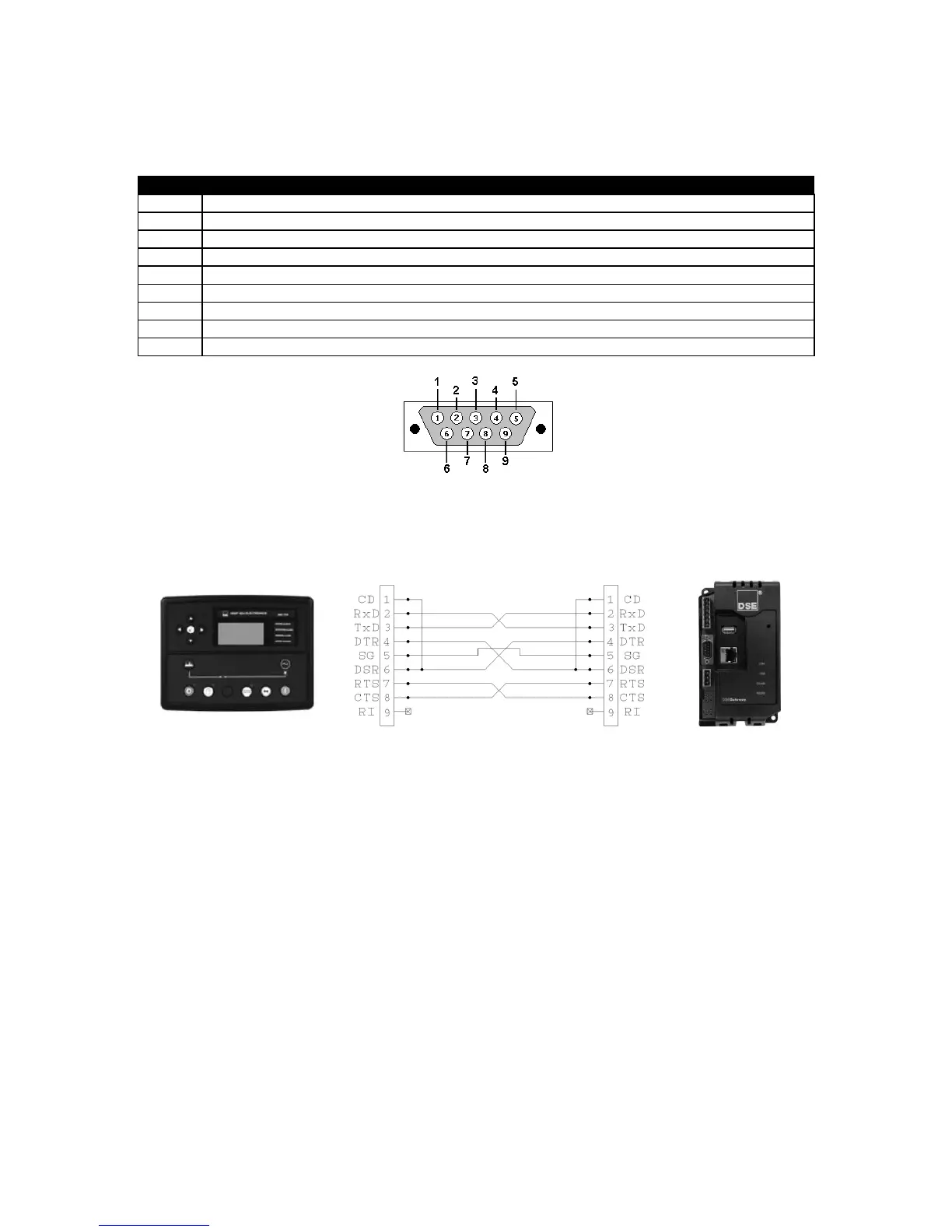

3.6 RS232 CONNECTOR
This socket provides support for connection to one DSE controller.
PIN
No
NOTES
1 Received Line Signal Detector (Data Carrier Detect)
2 Received Data
3 Transmit Data
4 Data Terminal Ready
5 Signal Ground
6 Data Set Ready
7 Request To Send
8 Clear To Send
9 Ring Indicator
View looking into the male connector on the module
3.6.1 NULL MODEM CABLE WIRING
DSE Controller with RS232 Null Modem Cable DSE892 Gateway
