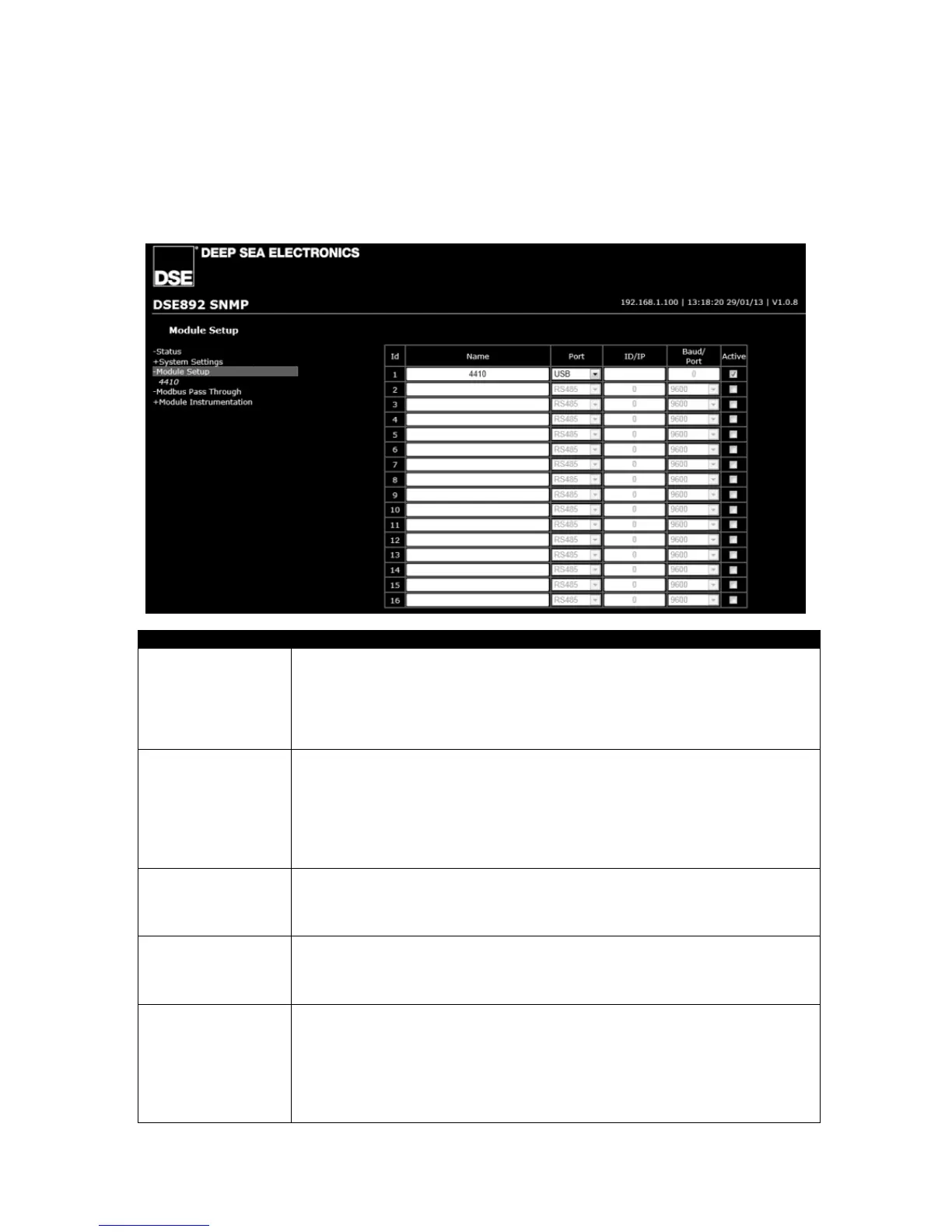

6.3 MODULE SETUP
This page is used to configure the DSE892 Gateway’s connections to DSE controllers.
Each connected controller has an entry in the table to configure which of the Gateway’s ports are
used for connection to that specific module.
Multiple ports are able to be used at the same for complete flexibility of connection.
Parameter
Description
Name Use a meaningful name for each connected controller. For example you could
use the generator name.
Example : Volvo TAD9 Genset2
Once entered, this name is used to create a new page to configure what the
Gateway is to monitor in this application.
Port Used to select which of the Gateway’s ports are used for connection to this
controller.
RS232
RS485
Ethernet
USB
ID/IP
When
Port
is set to
Ethernet
–
IP address of the connected controlle
r.
When Port is set to RS232/RS485 – Modbus Slave ID (Address) of the
connected controller.
When Port is set to USB, this item is not available.
Baud/Port
When
Port
is set to
Ethernet
–
TCP port to use for Modbus (usually 502
where
a single controller is connected to the Ethernet port of the Gateway)
When Port is set to RS232/RS485 – Baud rate of the selected port.
When Port is set to USB, this item is not available.
Active Allows the user to activate or deactivate a connection. Ensure any unused
entries in the table are de-activate.
Additionally any controllers no longer communicating with the Gateway must
be de-activated for correct operation of the remaining connections.
 = Connection is active.
 = Connection is disabled.
