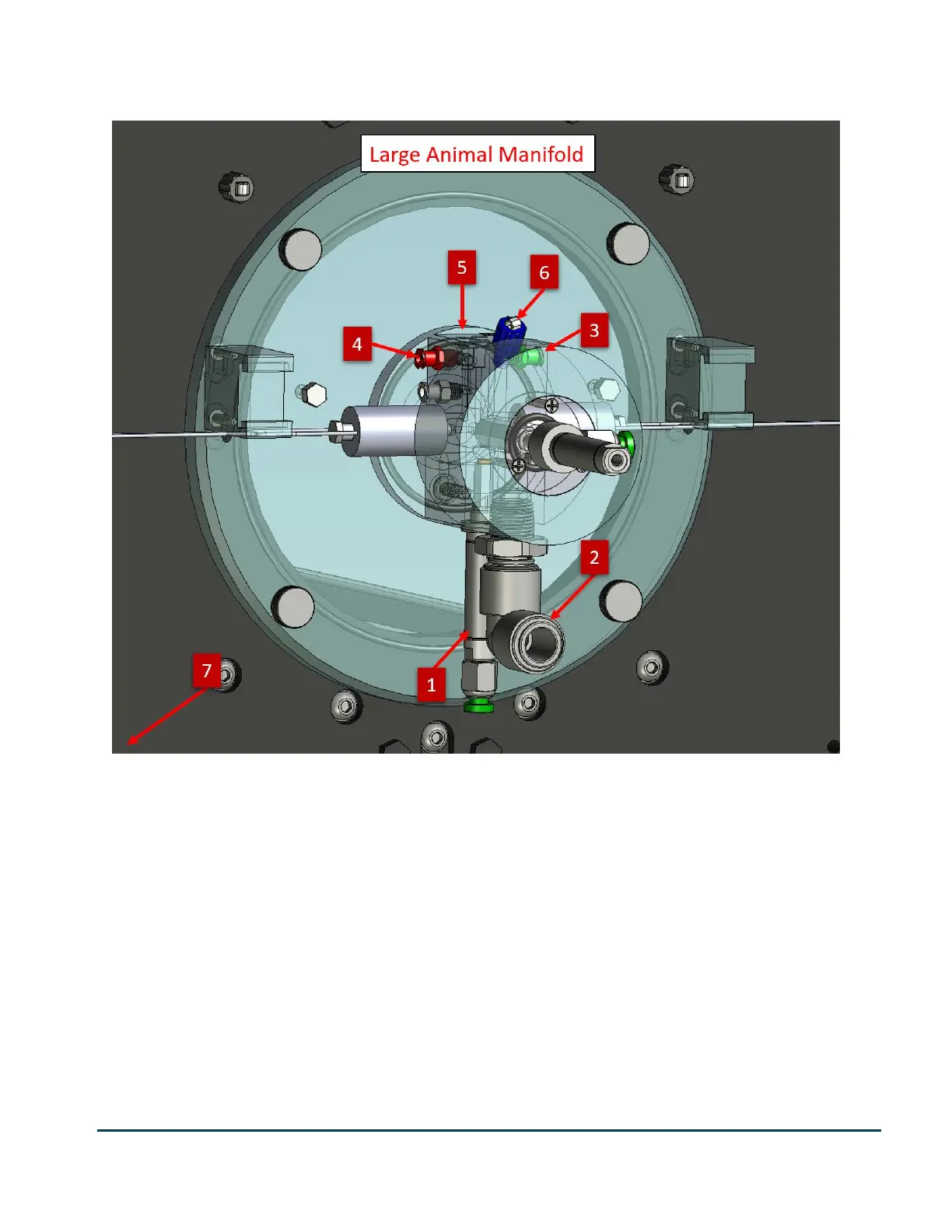

Large Animal Manifold
The Large Animal manifold is used for rabbit, ferret, and primate chambers
1. FRC valve
2. Fast expiration valve port
3. Slow expiration valve port
4. Inspiration valve port
5. Mouth pressure transducer port
6. Inlet for sampling gases (N, O2, etc.). This port is also used to calibrate the mouth pressure signal.
7. Compressed air source port (not visible, but is located on the lower left corner of the manifold bulkhead
similar to the rat manifold)
