Mouse Chamber Configuration Notes
Several additional steps are required to configure the mouse chamber

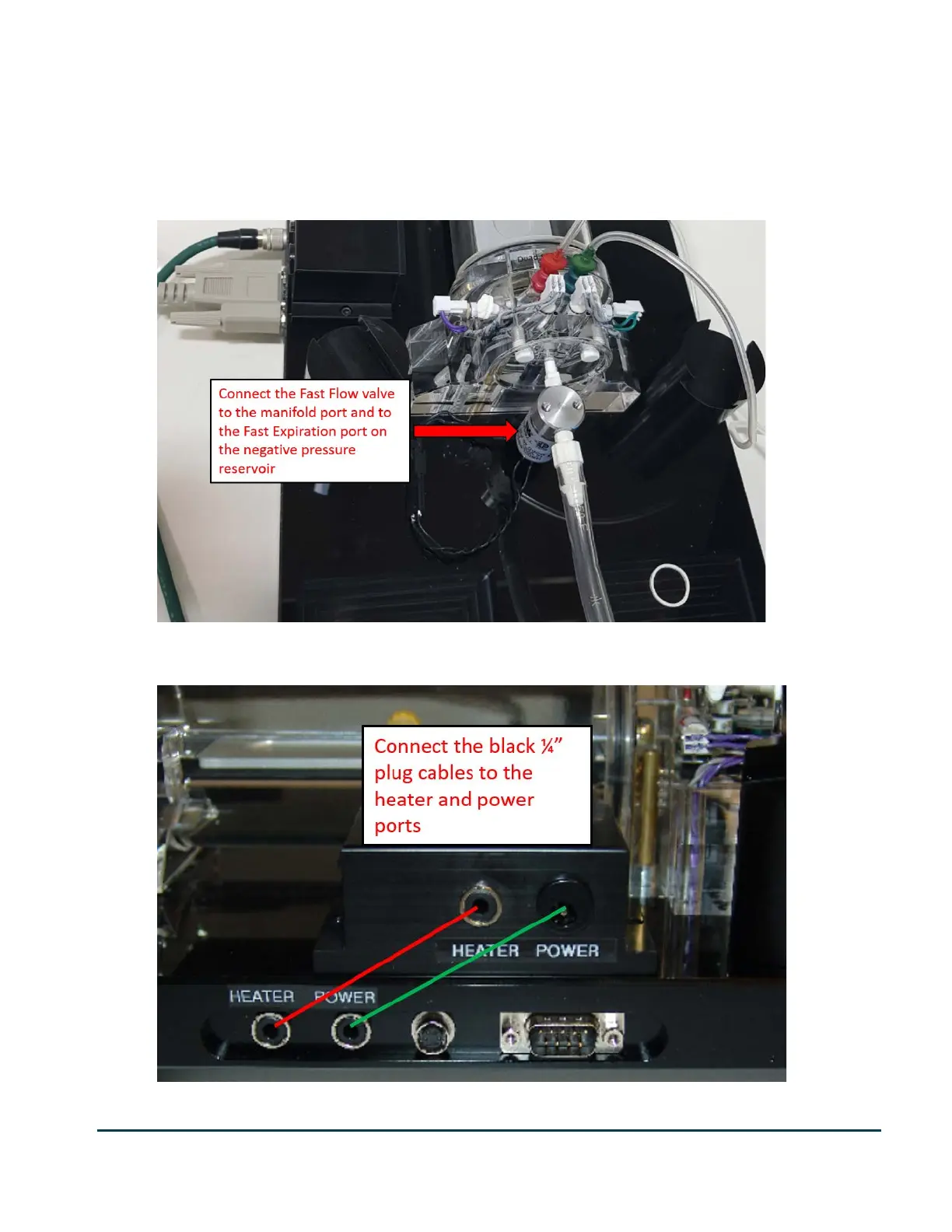

1. Connect the Fast Flow valve to the mouse manifold port and to the Fast Expiration port on the negative
pressure reservoir.
2. Connect the black cables with the ¼” jacks to the power and heater ports on the side of the chamber table.
