Page 32

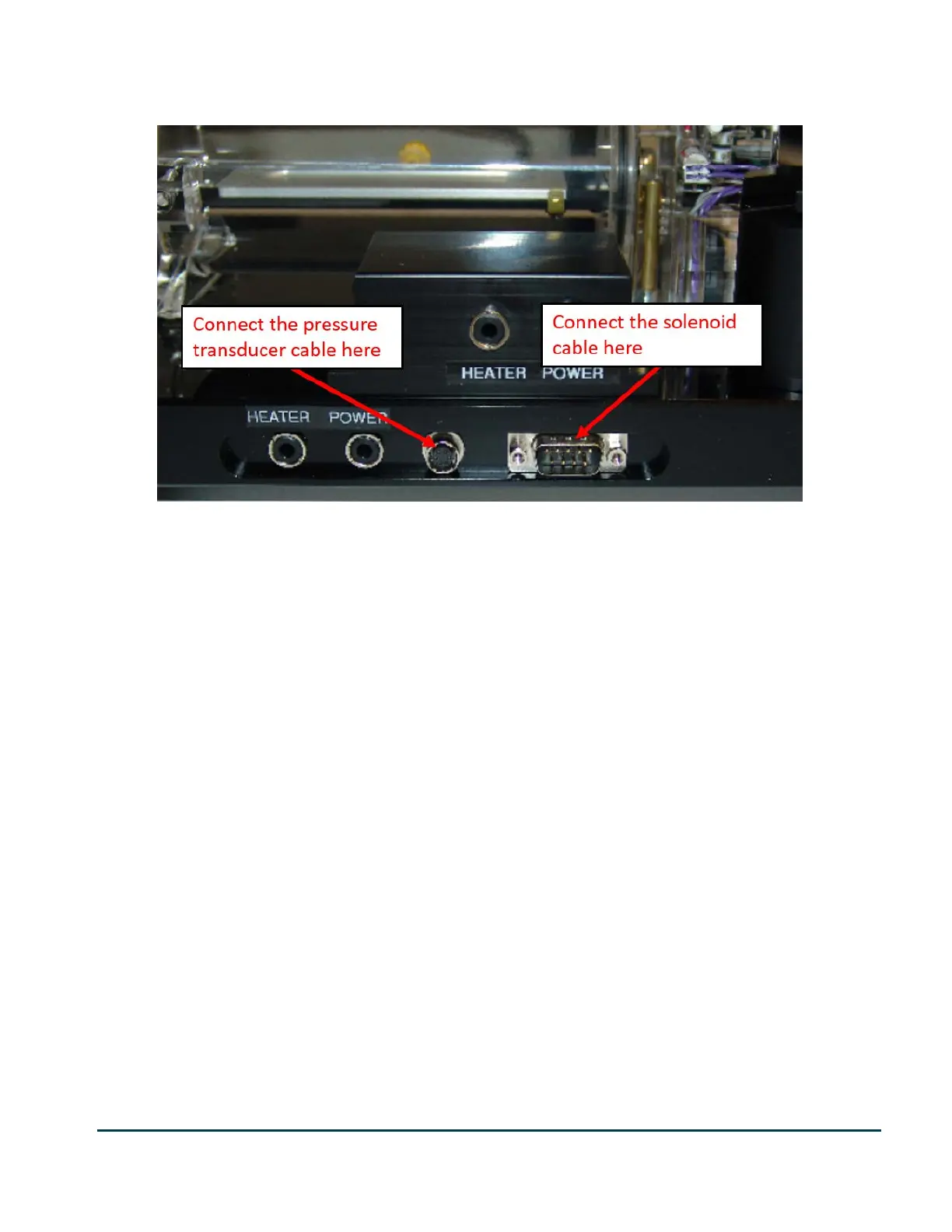

3. Connect the pressure transducer and the solenoid cables to the ports on side of the chamber table.
